Fully automatic ice-lolly cartoning machine

Specifications

1.Controlled by PLC & HMI
2.Automatic weighing, filling
3.Overload protection
4.Hot melt sealing
5.Count the finished produc

 Product Explanation

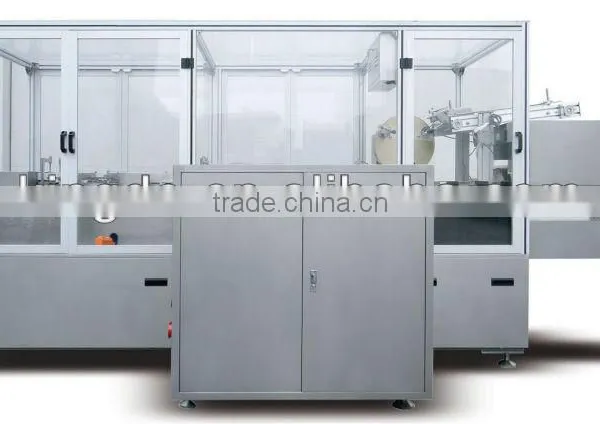

JDLX-120 Fully automatic ice-lolly boxing machien is special intelligent boxing machien which can run continuously ,the max speed of machien is 120bmp(boxs per minter) ,it can be used to pack the boxy object such  as  ice-lolly



Main Characteristics



The machien has the surveillance ,alarm,malfunction display system which compose of the devices of sensing element , photoelectricity ,overload protection .the machine will stop automatically when packed object cannot be detected several times or when is overloaded.



The whole machine is controlled by PLC & HMI ,uses chain to carry the paper box. so the machine can run continuously and stably ,there is backup interface online can adopted according to user's requirement .The machine can be adjust the speed automatically and make it can work with other packing machine together .It can link with pillow type packing machine ,container loader



Main Technical Parameter



Speed	80-120 boxs per minter
Max box size	220 X 80 X 45 (L X W X H)
Min box size	145 X 40 X 20 (L X W X H)
Available paper	300-350( g/sm)
Air pressure	0.6-0.8 MPa
Air consumption	≥ 0.3m/min (Air compressor)
Power supply	AC 380V  50HZ
Max power	1.5kw ( Single match power supply )
Overall dimension	3200 X 1600 X 1750 (L X W X H)
Weight	1900KG



Samples :
