smd 5050 35mm led pixel round lights high brightness
Description:
12v / 24v 6 LEDs led Pixel Point RGB module lights -6 pcs SMD 5050 RGB
RGB Pixels are digitally-controllable lights you can set to any color, or animate
Each RGB camaleon led LED and controller chip is molded into a 'dot' of silicone.
The dots are waterproof and rugged.
There are four flanges molded in so that you can 'push' them
into a 35mm drill hole in any material up to 1.5mm/0.06" thick
They're typically used to make outdoor signs. Compared to our other LED dots
The pixels are connected by a 3-conductor cable. Blue is +12V / 24V, Yellow is GND, Green is DATA
Data is shifted down from one pixel to the next so that you can easily
connect to the strand or attach more onto the end.
Feature:
SD controller
Programable by Software
Individually Control
Conformal Coating,PVC glue protection
IP66, Water-proof protection
Easy installation (punching 35mm hole on metal panel)
new product, 6ps smd5050 35mm led pixel .
Specification:
Model NO. |
SJ-356ICRGB |
IC chip |
UCS1903 |
Power Consumption |
1.44W |
Work Voltage |
DC 12V / 24V |
Beam Angle |
≥120 |
LED Quantity |
6 PCS SMD 5050 |
Color |
Full color (ICRGB) |
Dimension |
35*40*43mm |
Waterproof Grade |
IP66 |
Work Temperature |
-40-+60°C |
Life-span |
50,000H |
Certificate |
CE&RoHS |
Warranty |
2 years |
Picture: 6pcs smd5050 35mm pixel led waterproof IP66 used for indoor outdoor

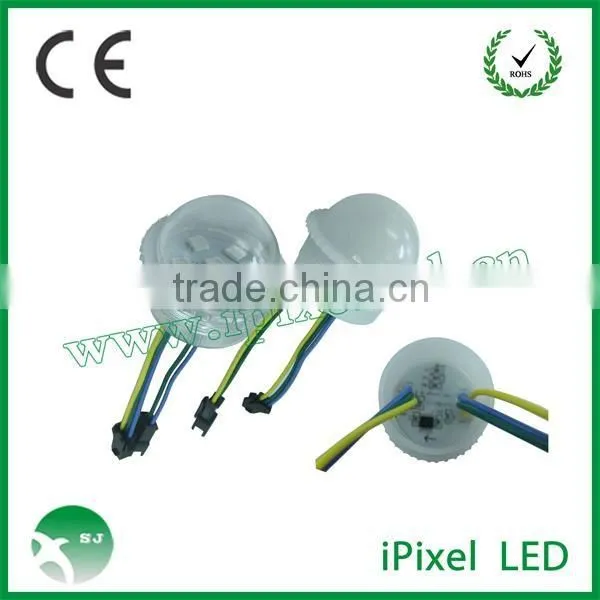

Clear cover waterproof 35mm pixel led with 2 3pin connector of each led

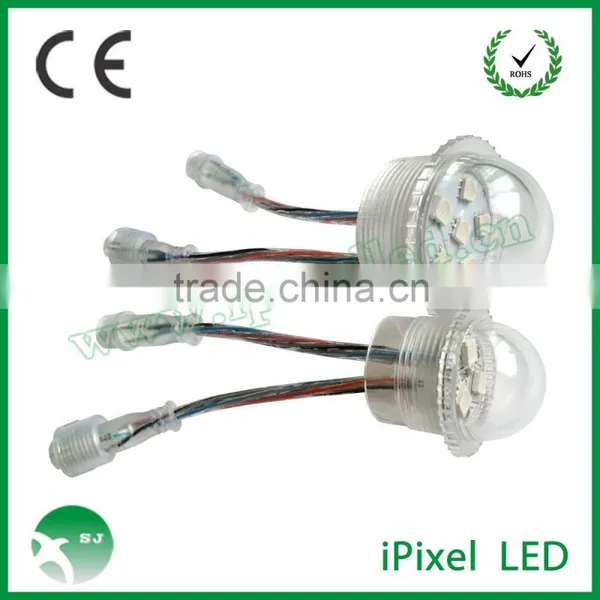

Frost cover waterproof 35mm pixel led with male and female 3 pin connectors on each led
Controller: DMX controller & decoder & SD controller & arduino controller
Effect: every pixel led with ucs1903 control, can change color individually.
Package: 20pcs/string 8cm lead in cable wire, 80pcs/An-ti static bag 640pcs/carton.
More information please contact Ms.Zoey,
Phone/whatsapp: +86 18280061943
