dmx ws2801 30mm pixel led 20pcs/string
Description:

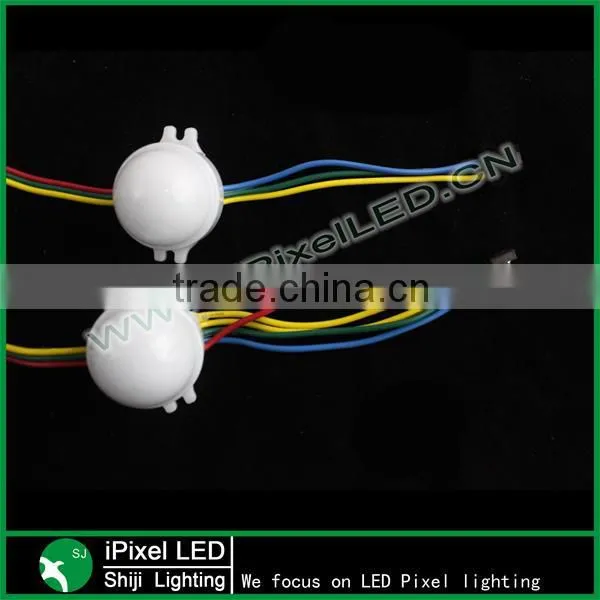

30mm ws2801 led pixel point light.
1.RGB Pixels are digitally-controllable lights you can set to any color, or animation
2.Each RGB LED and controller chip is molded into a 'dot' of silicone.
3.The dots are waterproof and rugged.
4.There are four flanges molded in so that you can 'push' them.
5.into a 30mm drill hole in any material up to 1.5mm/0.06" thick.
6.They're typically used to make outdoor signs. Compared to our other LED dots.
7.The pixels are connected by a 4pin JST conductor cable. Blue is CLK, Yellow is GND, Green is DAT,Red is DC12V
8.Data is shifted down from one pixel to the next so that you can easily connect to the strand or attach more onto the end.
9. DMX control 30mm ws2801 led pixel point light
Specification:
Products Name |
30mm ws2801 led pixel light |
Model NO. |
SJ-30ICRGB |
Power Consumption |
0.72W |
Work Voltage |
DC12V |
IC model |
ws2801 |
LED Qty |
3pcs SMD5050RGB |
PCB Color |
white |
Dimension |
30*30*40mm |
Waterproof Grade |
IP66 |
Work Temperature |
-40-+60°C |
Life-span |
60,000H |
Certificate |
CE&RoHS |
Warranty |
2 years |
Control System:
1. Offline control: SJ-T-1000s, SJ-8000C for off-line working, can control max 2048 Pixels, 8192 Pixels.
2. Online control: SJ-T-200K, 300K for on-line working, can control max 4096,8192 pixels.
3. Compatible with Arduino, DMX 512.
Connection:
1) Signal wire: DC+, DAT, CLK, GND
2) DC+ and GND connect to power supplier;DAT, CLK and GND connect to controller
3) Relative Controller: SPI controller support WS2801; when use DMX decorder, can connect to DMX system
4) Support online control
Picture details:

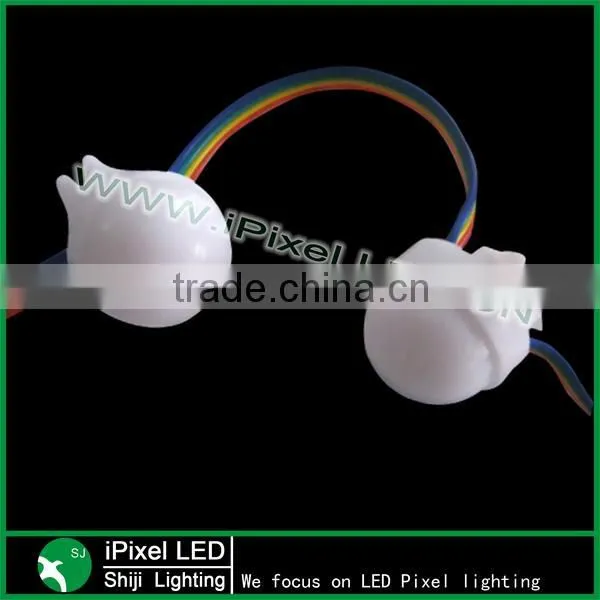

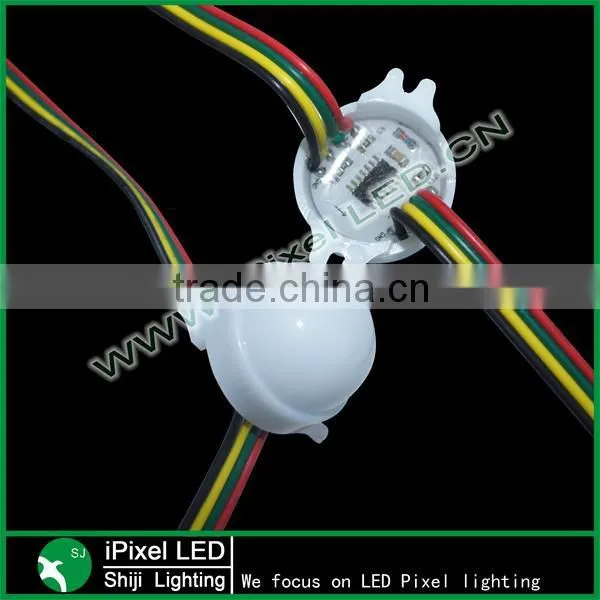

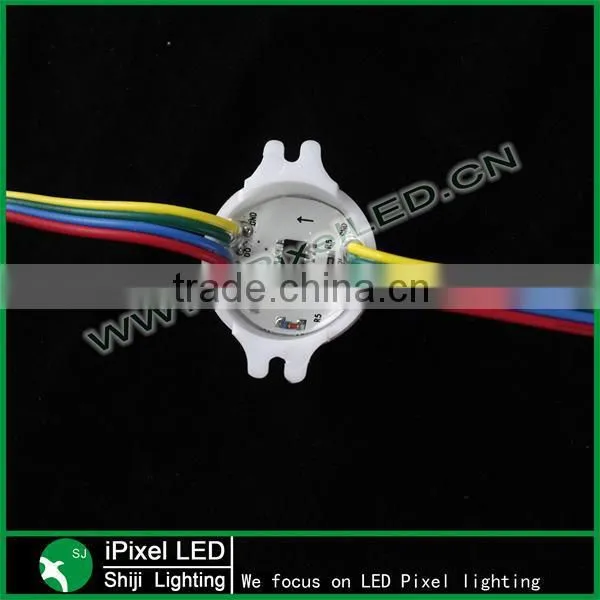

30mm pixel dot led with ws2801 ic on the back

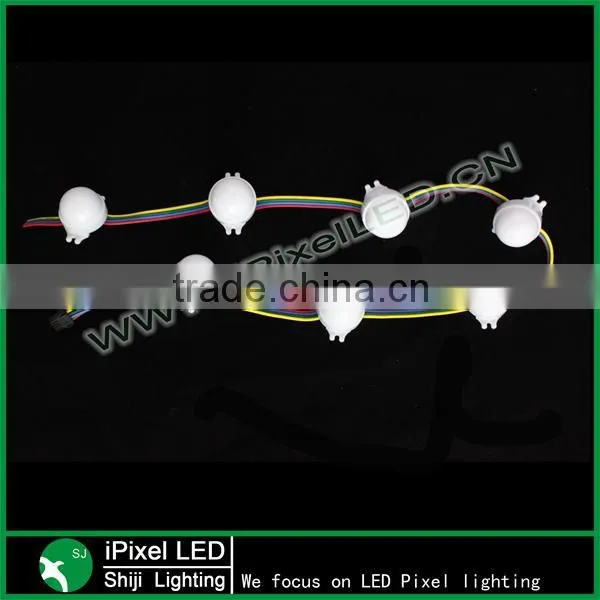

20pcs/string, 2 male and female connectors on each end of the string.
Controller: DMX controller & decoder & SD controller & arduino controller, t-1000S

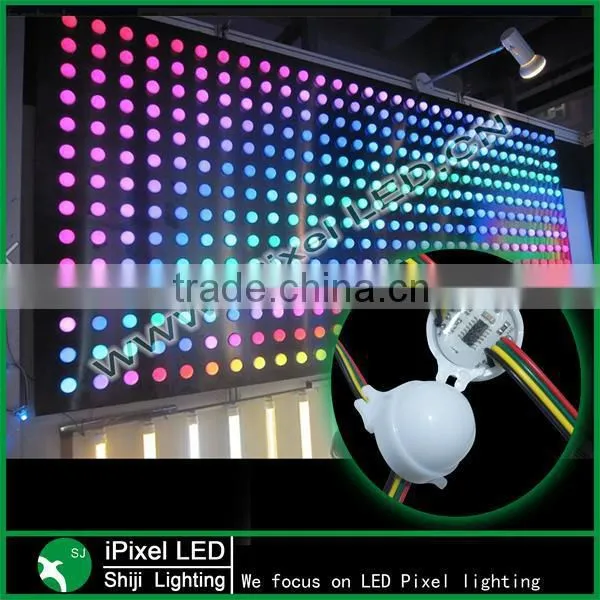

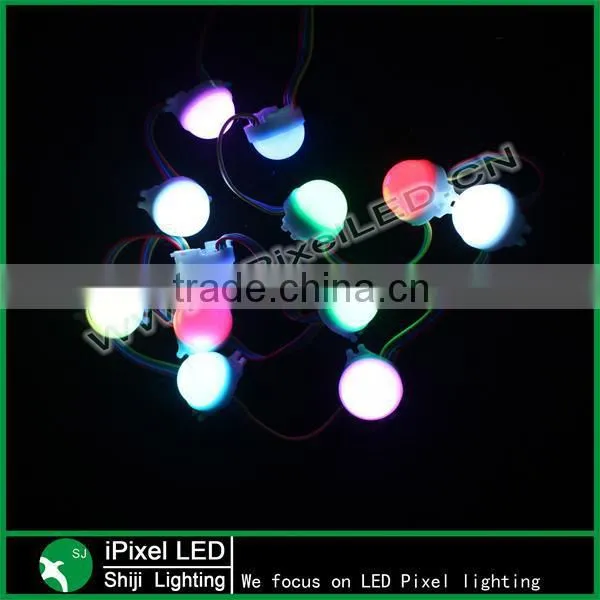

Effect: every pixel led with ucs1903 control, can change color individually.
Package: 20pcs/string 8cm lead in cable wire, 80pcs/An-ti static bag 640pcs/carton.
