Specifications
50mm rgb pixel led point source light1.WS2801 IC,DC12V,0.72W
2.IP66.SMD5050 led
3.SD controller,DMX compatiable
4.CE&RoHS
ws2801 programmable 50mm rgb led dot matrix display for night club decoration
Description:
ws2801 smd rgb 50mm pixel led
1.DC12V,0.72W/pcs,1.44W/PCS
2.3pcs or 6pcs SMD 5050 LEDs per dot module
3.SD card controller, dmx512, artnet controller Individually control,Waterproof IP66
4.This product could be linked up to 20pcs/string.
5.Can achieve effects of full-color running water,chasing and scanning.Depending on the different installation methods may compose different dynamic effect of different color's character and design.
6. The spacing between lamps can be chose according to the building height.
7. The pixels are connected by 4-connector cable.+12V(Red),Ground(Yellow),Data(Green),Clock(Blue). Or we can tailor-make the color of cable for you .Data is shifted down from one pixel to the next so that you can easliy cut the strand or attach more onto the end.
Specification:
Products Name |
50mm RGB pixel led dot light |
Model NO. |
SJ-50ICRGB |
Power Consumption |
0.72W,1.44W |
Work Voltage |
DC12V |
Beam Angle |
≥140 |
LED Quantity |
3pcs or 6pcs SMD5050RGB |
Color |
Full color(ICRGB), changeable, pixel, digital, dream color, magic color |
IC chip |
WS2801, lpd6803 |
Waterproof Grade |
IP65, IP66, IP67 |
Work Temperature |
-40-60°C |
Life-span |
50,000H |
Certificate |
CE&RoHS |
Warranty |
2 years |
Application:
1.Outdoor signs.
2.Christmas lighting solutions
3.Advertisement light box and billboard
4.Widely used in large-size LOGO
5.Decorative lights for holiday, event ,show, exhibition
6.DIY light for home use
7.Exposed luminous characters
8.Painted screen etc.
Picture details:

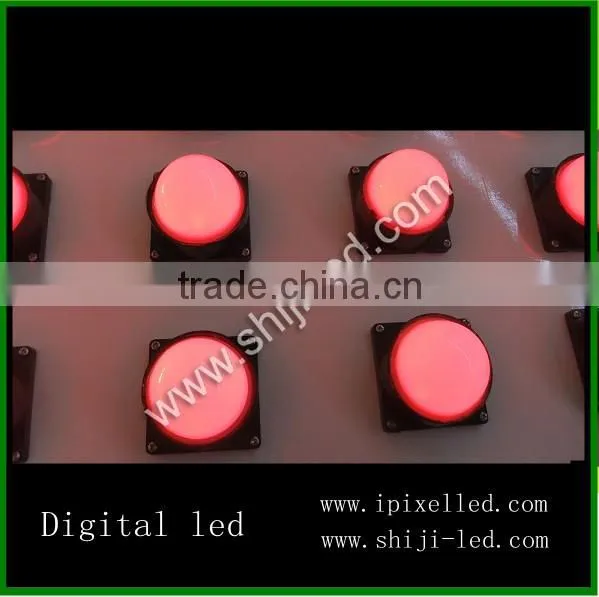

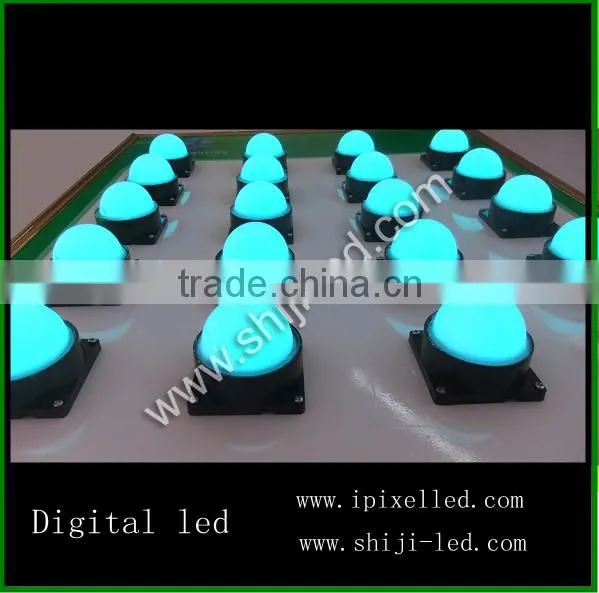

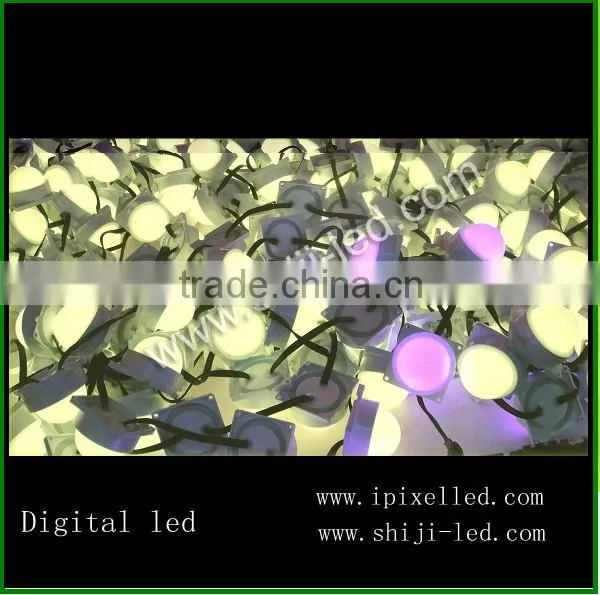

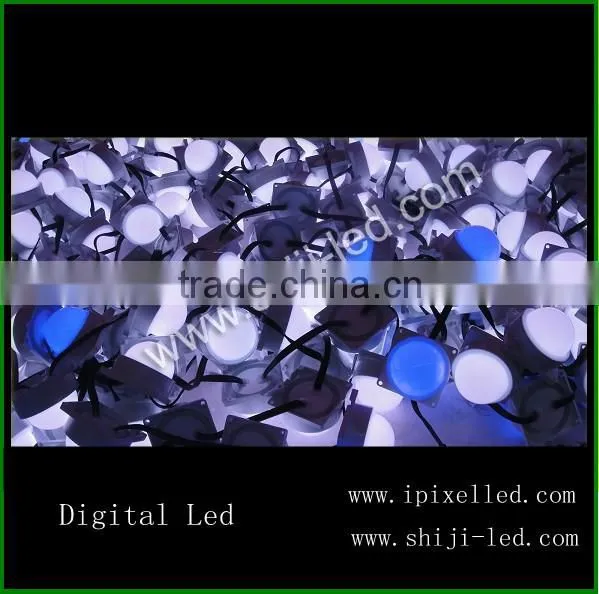

3leds 6leds available 50mm milky cover pixel led waterproof IP66.
Each led use 4 screws to mounting on board or wall.

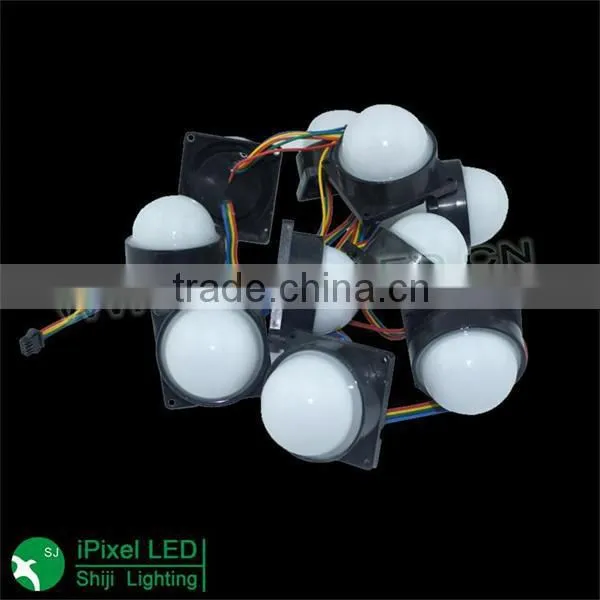

20pcs/string, 2pcs 4pin male and female connectors on each end of the string.
This connector also can be made in waterproof, then need T-connector to power supply.
Controller: DMX controller & decoder & SD controller & arduino controller, t-1000S.
Effect: every pixel led with ws2801 or lpd6803 control, can change color individually.
