30pixels 60pixels 144pixels Addressable Apa104 Led Flex Strip

30pixels 60pixels 144pixels Addressable Apa104 Led Flex Strip thumbnail-1
30pixels 60pixels 144pixels Addressable Apa104 Led Flex Strip thumbnail-2
30pixels 60pixels 144pixels Addressable Apa104 Led Flex Strip photo-1
30pixels 60pixels 144pixels Addressable Apa104 Led Flex Strip photo-2
US$ 5 - 15 MOQ: 10 Meters
Key Specifications
Get Latest Price
LED Light Source:
ws2812b
Type:
Flex LED Strips
Input Voltage(V):
5V
Contact Supplier Request Quote Chat Now
Shenzhen Shiji Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source ws2812b
Type Flex LED Strips
Input Voltage(V) 5V
Lamp Power 14.4W
Color Temperature(CCT) 5000-6000K
Working Temperature(℃) -30, 50
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name SJ / iPixel
Model Number SJ-10060-104 / SJ-10060-apa104

Specifications

Addressable 30 60 144 Pixels apa104 Led Strip
1.DC5V14.4W/M
2.apa104 IC built into 5050
3.2 years warranty
30led 60led

 30pixels 60pixels 144pixels addressable apa104 led flex strip



Description:

 Smart RGB Pixel Strip light---IC built-in apa104 Digital LED Strip



Each smd 5050 has an IC(apa104) inserted in,Each LED individually address controlled.

You can design many different  lighting effects or animations you want.

This is the highest resolution one for the moment!

Controller, power supply are available!

Pixel 30pixles/m, 60pixels/m, 144pixles/m addressable rgb led pixel strip apa104, individually control



Now we provide 3 types, 30led/m, 60led/m, 144led/m,

black and white pcb, waterproof and non-waterproof both available.



Feature:

Products Name

 apa104 Led pixel strip

Model NO.

SJ-10060-104

Power Consumption

14.4W/Meter

Work Voltage

DC5V

IC model

apa104 built into 5050

LED Qty

60pcs SMD5050RGB

PCB Color

black/white

Dimension

L1000*W12*H3mm

Waterproof Grade

IP65/IP20

Work Temperature

-40-+60°C

Life-span

60,000H

Certificate

CE&RoHS

Warranty

2 years



Control System:

1. Offline control: SJ-T-1000s, SJ-8000C for off-line working, can control max 2048 Pixels, 8192 Pixels.

2. Online control: SJ-T-200K, 300K for on-line working, can control max 4096,8192 pixels.

3. Compatible with Arduino, DMX 512.



CONNECTION:
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier;DAT and GND connect to controller
3) Relative Controller: SPI controller support apa104; when use DMX decorder, can connect to DMX system
4) Support online control



Application:

To create the flexible LED dispaly, LED curtain.

Indoor & Outdoor decoration, fashion decoration.

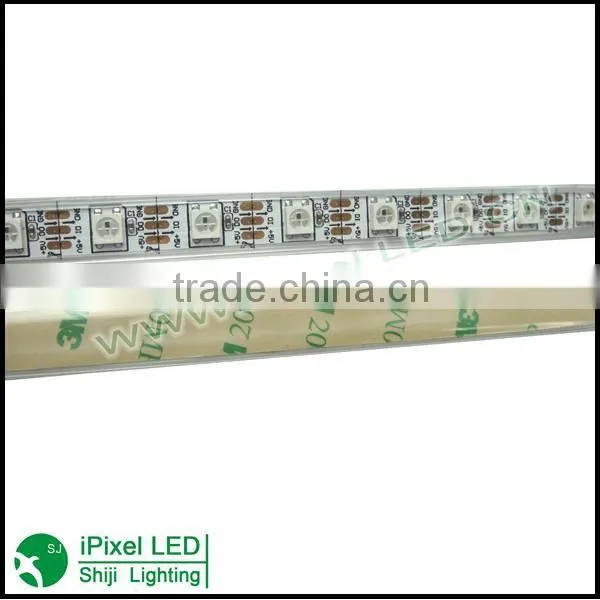

Picture: apa104 strip 30leds/m non-waterproof and silicon tube waterproof type 30pixels 60pixels 144pixels addressable apa104 led flex strip

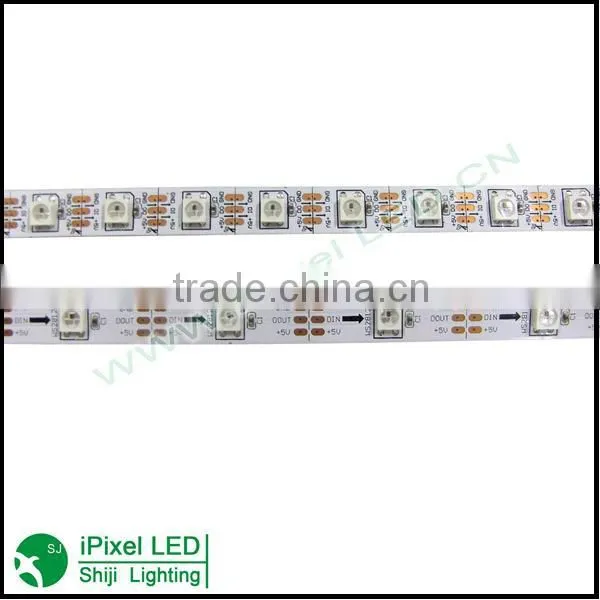

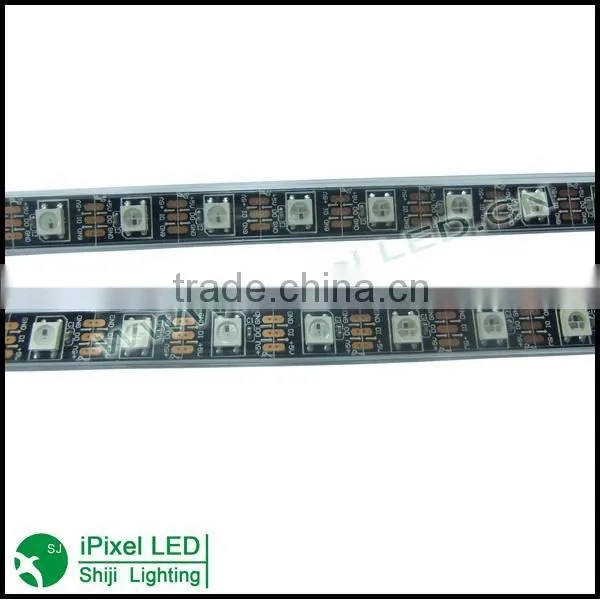

apa104 strip 60leds/m, waterproof and Non-waterproof use for outdoor and indoor decoration.

 30pixels 60pixels 144pixels addressable apa104 led flex strip



30pixels 60pixels 144pixels addressable apa104 led flex strip

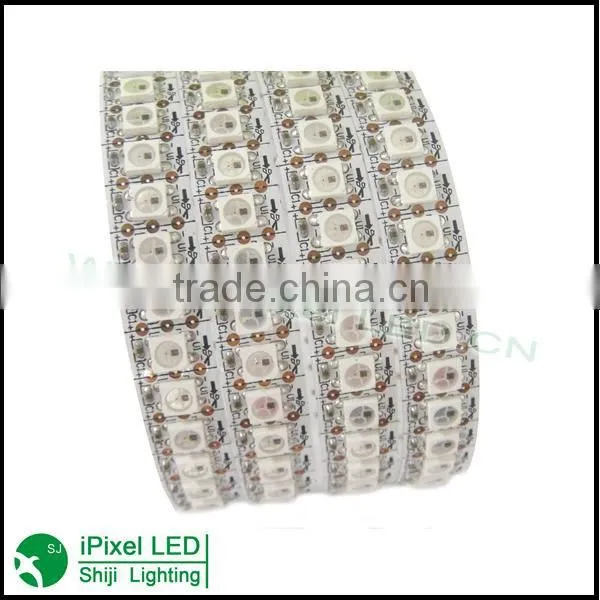

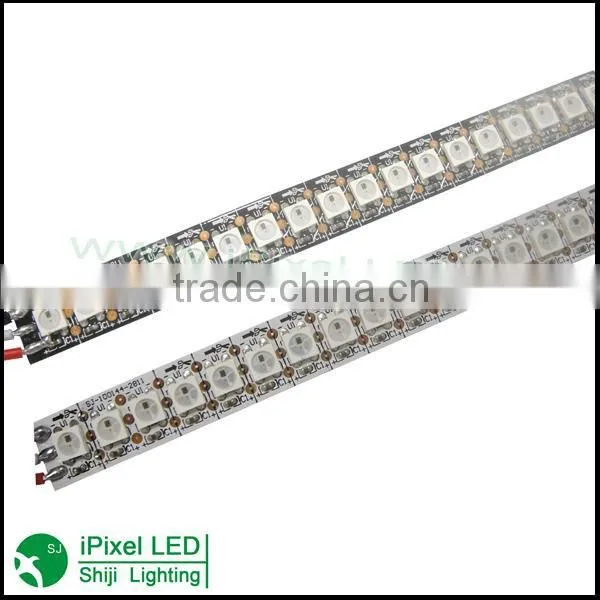

apa104 strip 144leds/m, waterproof and non-waterproof type.

30pixels 60pixels 144pixels addressable apa104 led flex strip



30pixels 60pixels 144pixels addressable apa104 led flex strip

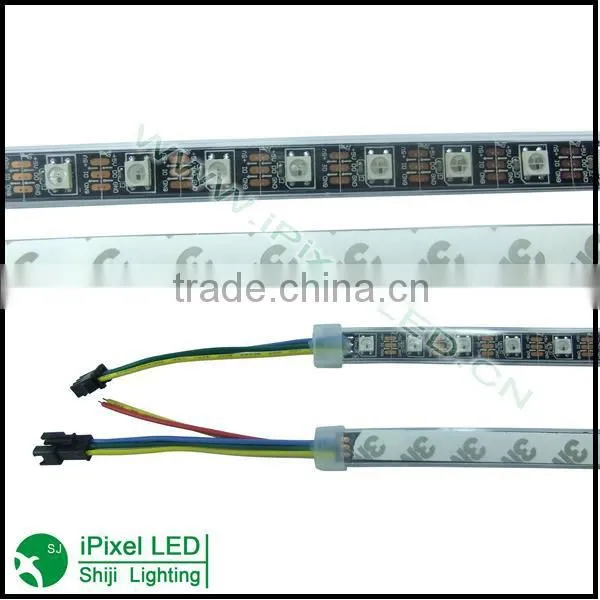

3 Pin Male and female Connector on each endside, easy for connect.



30pixels 60pixels 144pixels addressable apa104 led flex strip



Controller:  DMX controller & decoder & SD controller & arduino controller
Effect: Change color individually and pixel addressable full color.
Install: Every 1m with 2 holders and screw to install, and back adhesive on each strips.

Application: flexible LED dispaly, LED curtain. Indoor & Outdoor project.

30pixels 60pixels 144pixels addressable apa104 led flex strip

30pixels 60pixels 144pixels addressable apa104 led flex strip



Package:  5m/ rell 50 rell/ carton size: 46*26*46.5cm total weight :100string /carton
