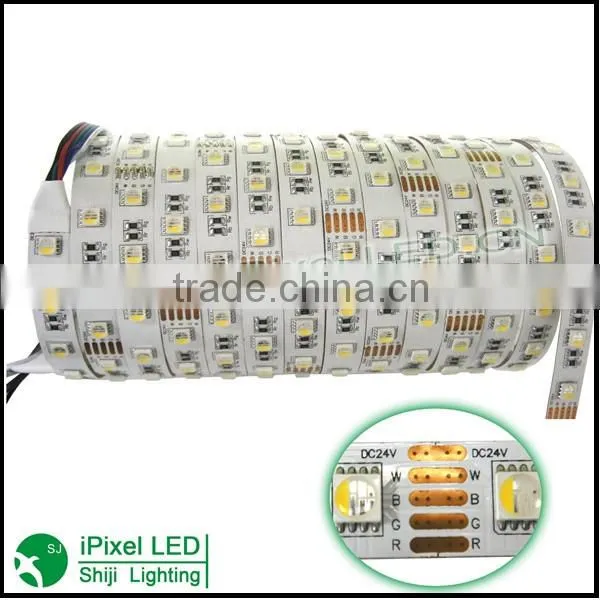

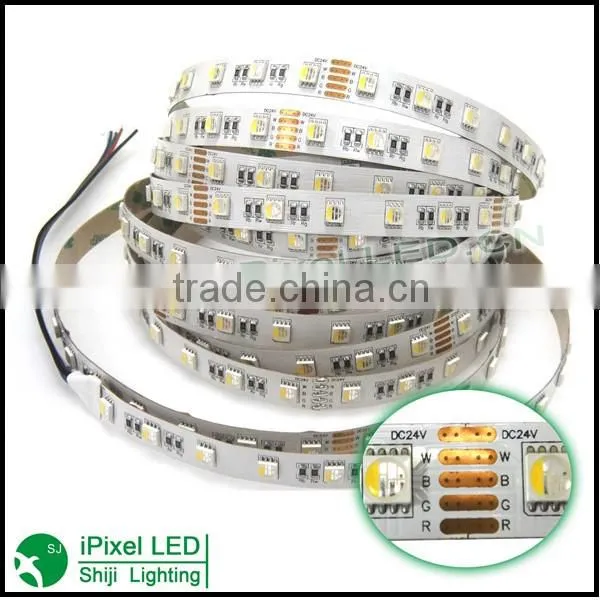

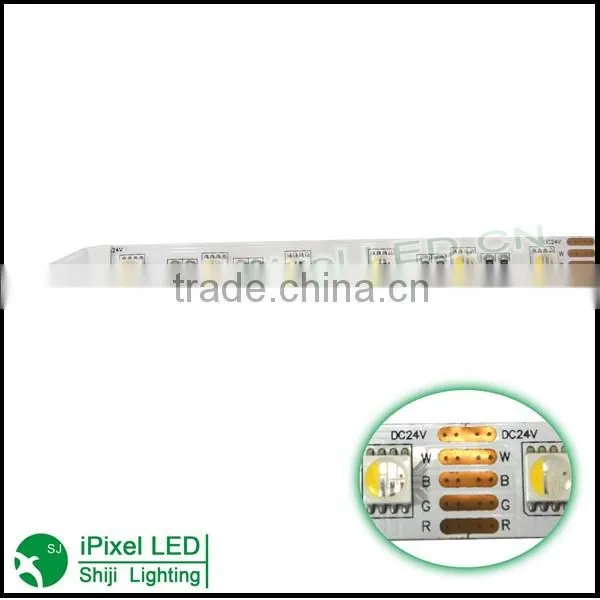

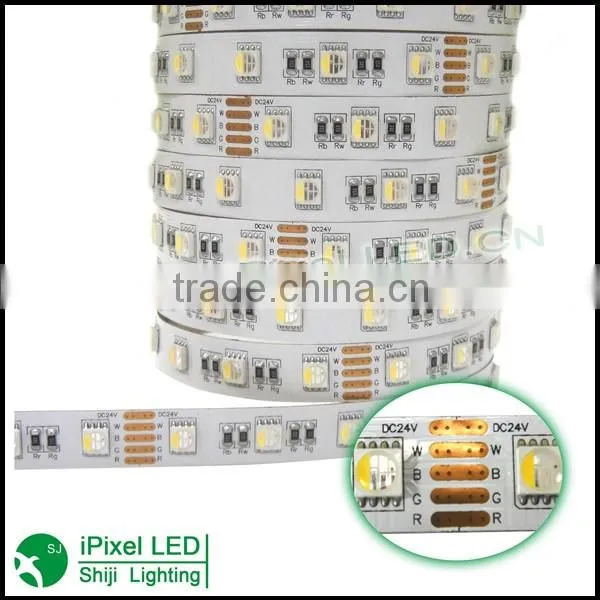

dc12v /24v rgbw 60led built-in one 5050 flexible led strip
RGBW Led Strip Features:
1.Use the super brightness SMD5050 LED chip as as lighting source.
· 2.300 super brightness 5050 LED/5M.
· 3.Size:5000X10MM
· 4.Available RGB+W(2700k-6500k),RGBW(6500K-7000K)
· 5.Input Voltage :DC24V
· 6.Max power :96W/5m
· 7.Can be cut by 6 LEDs and connect again by our accessories.
. 8.This 5050 led strip can be changed into waterproof with type A-silicone tube IP65, type B-PU glue.
rgbw LED strip datasheet:
| Product name: | rgbw led strip |
| LED Quantity | 60PCS/M,300PCS/Reel |
| Lumens/m | 1200LM/m |
| Wattage | 19.2W/M |
| LED Type | SMD5050 |
| PCB Width | 12mm |
| Length/Reel | 5M |
| LED Lumens | 18-20LM/LED |
| Working Voltage | DC12v&DC24V |
| Light Color | RGBW 4 color in one LED |
| IP Grade | IP20:Non waterproof) |
| IP65:Soft glue waterproof | |
| IP66:Soft tube waterproof | |
| IP68:Soft tube+glue waterproof | |
| Glue Type | Expoy:Non-anti-UV,Stay clean for short time,smell |
| Silicone:Anti-UV,Stay clean,soft,smell-less | |
| PU: Anti-UV,Stay clean,soft,smell-less | |
| PCB Color | White,Yellow,Black |
| Certification | CE RoHS |
| Cut size | DC12V (every 3LED per cut), |
| DC24V (every 6LED per cut) | |
| 30LED/M with 100mm per cut, | |
| 60LED/m with 50mm per cut | |
| Installation | IP20 with 3M Adhesive tape on the back of PCB |
| IP65 with 3M Adhesive tape on the back of PCB | |
| IP66 with plastic clip and screw | |
| IP68 with plastic clip and screw | |
| Remark | We accept customization size |
pictures for RGBW led strips:

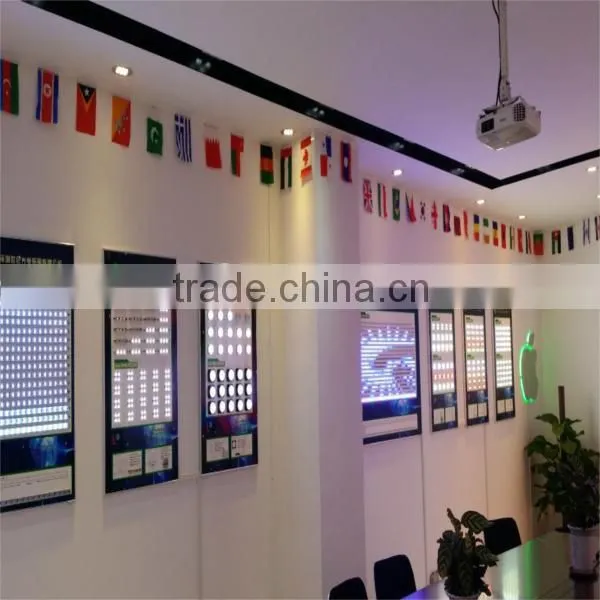

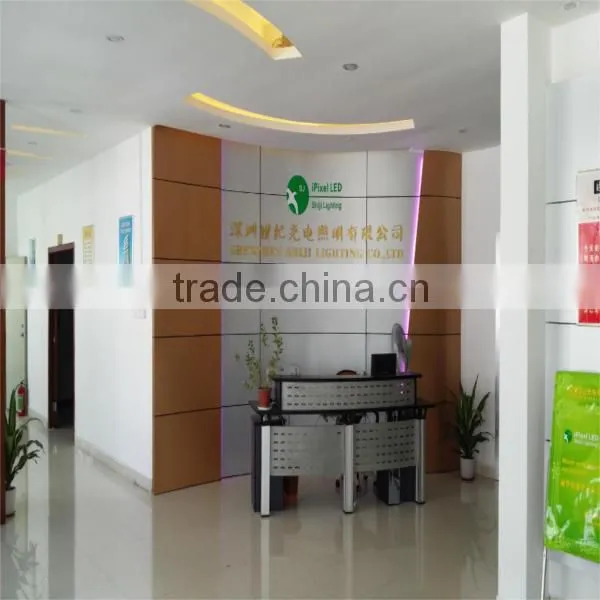

ShenZhen Shiji Lighting Co.,Ltd established high-tech firm specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We're especially well-placed in the field of sign lighting solutions and interior lighting We're Located in ShenZhen south of China, near ShenZhen Airport and HK with convenient transportation Our product range is as follows:
1.5050&3528 LED module Backlight for Channel Letters & signage
2. RGB LED pixel light & LED string light
3. LED flexible strips & LED rigid bar for Decorative Lighting
4. High Power LED spot light
5.LED flood light
6.LED ceiling light
Clients are welcome to buy our standard products, or send us OEM requests. You will be impressed by our quality and service.
