Dc5v s Shape Mini 5mm Smd3535 Ws2812b Sk6812 Digital Rgb Led Addressable Strip

Dc5v s Shape Mini 5mm Smd3535 Ws2812b Sk6812 Digital Rgb Led Addressable Strip thumbnail-1
Dc5v s Shape Mini 5mm Smd3535 Ws2812b Sk6812 Digital Rgb Led Addressable Strip thumbnail-2
Dc5v s Shape Mini 5mm Smd3535 Ws2812b Sk6812 Digital Rgb Led Addressable Strip photo-1
Dc5v s Shape Mini 5mm Smd3535 Ws2812b Sk6812 Digital Rgb Led Addressable Strip photo-2
US$ 4.5 - 21 MOQ: 5 Meters
Key Specifications
Get Latest Price
LED Light Source:
Epistar chip
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen Shiji Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar chip
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 14.4W/M
Lamp Luminous Flux(lm) 18-20lm/led
Color Temperature(CCT) pixel
Working Temperature(℃) -40, 40
Working Lifetime(Hour) 50000.00
Lamp Body Material Other, Epistar chip
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name SJ/iPixel LED
Model Number SJ-10060-sk6812
Product Description



dc5v s shape mini 5mm smd3535 ws2812b digital rgb led addressable strip





SPECIFICATIONS:

    • Lighting sources: 3535 SMD mini ws2812b RGB LED
    • Constant current design
    • PCB output voltage: 5V DC
    • LED quantity: 30led/m, 60led/m and 144LEDs per meter
    • IC chip:WS2811 IC/sk6812
    • Color: Full color
    • IP20/IP65/IP67 waterproof are available
    • Working/storage temperature: -40 to 40°C
    • Black PCB/White PCB available.
    • 1IC Control 1LED
    • S shape
  • NOTES
    • Please make LED drivers compatible with flexible LED strips before use LED strips
    • To use LED light strips 1m in serial, longer than 1m in parallel
    • Before use, first check the power supply used in compliance with of the power requirements
    • Each roll ask for independent power supply, not to use of multi-volume series us



CHARACTERISTIC:



Product Name:

ws2812b mini smd3535 30led/m

ws2812b mini smd3535 60led/m

ws2812b mini smd3535 144led/m

operating voltage



DC5V

DC5V

DC5V

Watt / meter



7.2W

14.4W

34.56W

APA102C LEDs density



30 LEDs per meter

60 LEDs per meter

144 LEDs per meter

Emittong color



full color

full color

full color

IP20 bare board strip width

5mm width

5mm width

8mm width

IP65 silicon tube strip width

7mm width

7mm width

10mm width

Maximum current draw



1.5A per meter

3.0A per meter

3.3A per 0.5meter

Cuttable length



33.33mm

16.66mm

6.944mm

Standard length



5m/roll

5m/roll

1m/roll



PICTURES:

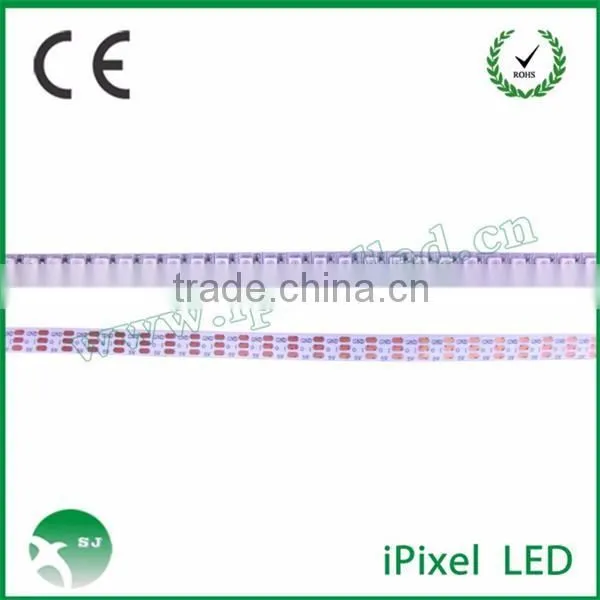

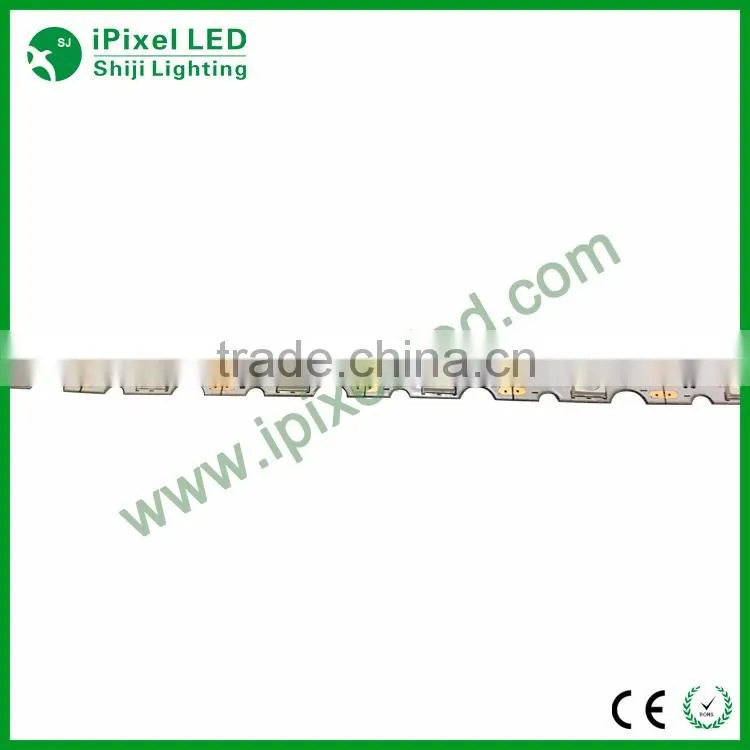

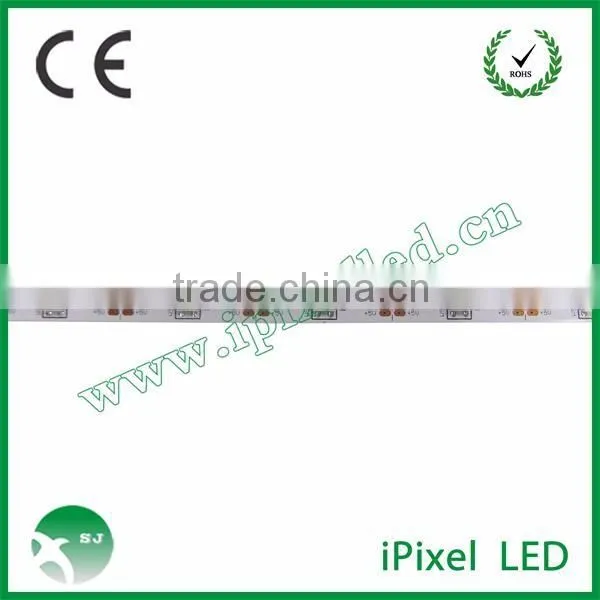

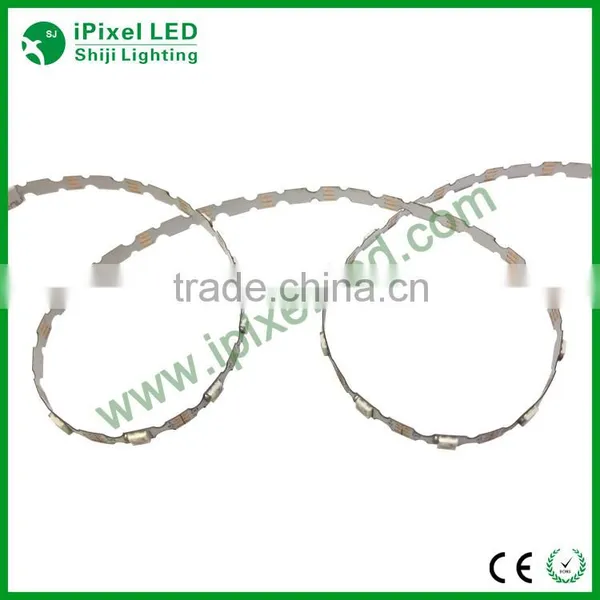

S shape for mini 5mm ws2812b led strips:

dc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable strip

dc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable stripdc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable stripdc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable strip

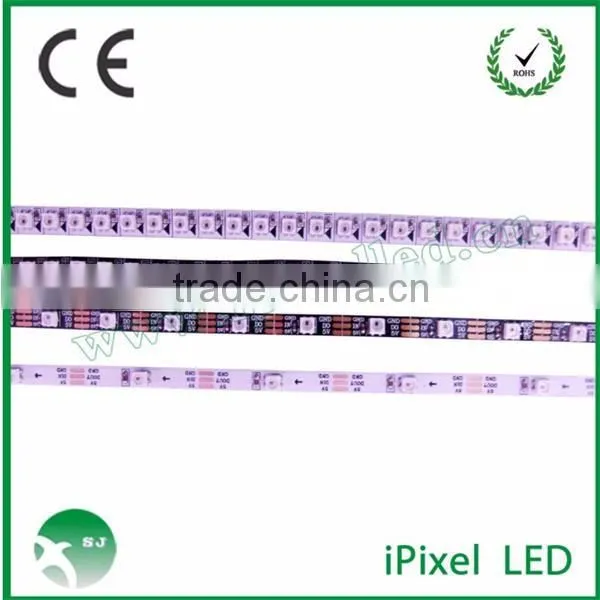

Other WS2812B SEIRES LED STRIP:

dc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable strip

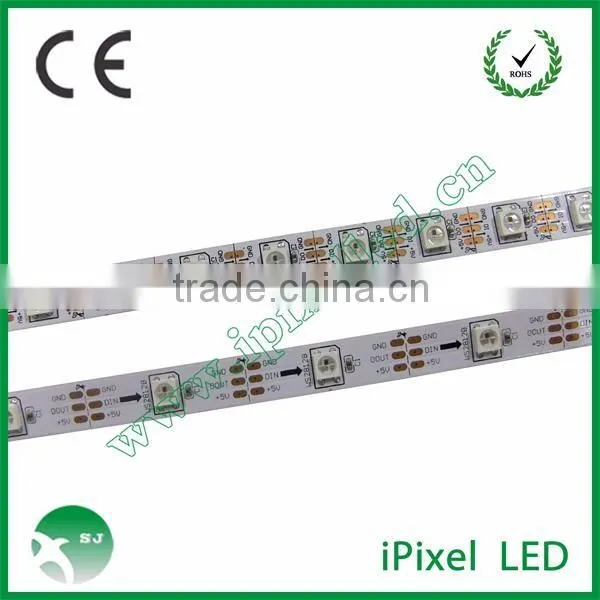

60leds/m ws2812b led strip:

dc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable strip

Controller:

dc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable strip









CONNECTION:

dc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable strip





Packaging & Shipping



Usually 5meters/roll, 1roll/bag, 60bags/carton:







Our Services

 Services:

1.Reply your inquiry in 24 hours

2.Experienced staffs answer all your questions in fluent English

3.Customized design is available.OEM&ODM are welcomed

4.Exclusive and unique solution can provide to customer by our well trained and professional technicians

5.Special discount and protection of sales area provided to our distributor



Shipment:

1.Goods will be delivered within 3-5 working days after the payment received

2.We ship item via DHL, Fedex,UPS,Door to Door service express or air and sea.

 dc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable strip

Warranty:



1. All products we sell are in good quality and have been tested before they are shipped out

2. We offer 2 years Warranty



Certification :CE&Rohs

dc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable strip

Company Information

ShenZhen Shiji Lighting Co.,Ltd established high-tech firm specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We're especially well-placed in the field of  sign lighting solutions and interior lighting We're Located in ShenZhen south of China, near  ShenZhen Airport and HK with convenient transportation Our product range is as follows:

1.5050&3528 LED module Backlight for Channel Letters & signage
2. RGB LED pixel light & LED string light
3. LED flexible strips & LED rigid bar for Decorative Lighting
Clients are welcome to buy our standard products, or send us OEM requests. You will be impressed by our quality and service.

dc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable stripdc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable stripdc5v s shape mini 5mm smd3535 ws2812b sk6812 digital rgb led addressable strip
