Addressable Dc5v Led Pixel Strip Ws2813 IC Each Led Controllable

Shenzhen Shiji Lighting Co., Ltd.
Addressable Dc5v Led Pixel Strip Ws2813 IC Each Led Controllable thumbnail-1
Addressable Dc5v Led Pixel Strip Ws2813 IC Each Led Controllable thumbnail-2
Addressable Dc5v Led Pixel Strip Ws2813 IC Each Led Controllable thumbnail-3
Addressable Dc5v Led Pixel Strip Ws2813 IC Each Led Controllable thumbnail-4
Addressable Dc5v Led Pixel Strip Ws2813 IC Each Led Controllable photo-1
Addressable Dc5v Led Pixel Strip Ws2813 IC Each Led Controllable photo-2
Addressable Dc5v Led Pixel Strip Ws2813 IC Each Led Controllable photo-3
Addressable Dc5v Led Pixel Strip Ws2813 IC Each Led Controllable photo-4
US$ 9 - 12 MOQ: 10 Meters
Key Specifications
Get Latest Price
LED Light Source:
epistar smd5050
Type:
Flex LED Strips
Input Voltage(V):
5
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source epistar smd5050
Type Flex LED Strips
Input Voltage(V) 5
Lamp Power 14.4
Color Temperature(CCT) pixel
Working Temperature(℃) -30, 60
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name iPixel / SJ
Model Number SJ-10060-ws2813

 ws2811 ws2812b ws2813 apa102 led strip addressable pixels DC5V 60pixels 144pixels



Description:

WS2813 RGB Flexible Digital LED Strip

These are the Digital strips that can be controlled with computers and other DMX/Digital SD Card Controllers. The advantage of digital strips is that you can control each led by itself so you can make video/chasing effects and other patterns. These color changing LED strips are flexible, bright, and easy to install!  They are much brighter and longer-lasting than traditional rope light.

Each roll of flexible LED strip is 16' long (actually 16'-5" or 5 meters with wire on each end).  The LED type used are the 5050 type super bright 3 in 1 SMD LEDs.  There are 300 per 16' roll.  They run on 5V DC.  The waterproof rating is IP65/IP67, which means that these flexible LED strips can get wet.

Details These ws2813 RGB strips can change any color/pattern with the use of a controller or via DMX so you will need a SD Card Controller designed to control the ws2813 chip or use standard DMX and a DMX to ws2813 Converter.



 Datasheet

Input voltage

DC5V

Current

2.88A

LED Qty

60pcs SMD 5050 meter

IC Qty

60pcs ws2813 IC chips per meter, ic built inside of led

Wave length(NM):

R-650mcd, G-520mcd,B-460mcd

Power(W/M)

14.4W/M

Signal

ws2813 chip

View angle

120 degree

Life span

over 50000hrs

Dimension

1000*12*2.2mm

Certification

ce & rohs

WaterProof

IP65 tube, silicon coating

Packaging

 5M/reel in antistatic bag


Picture details:

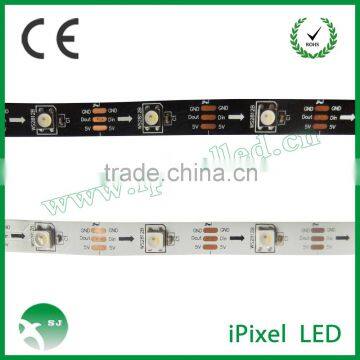

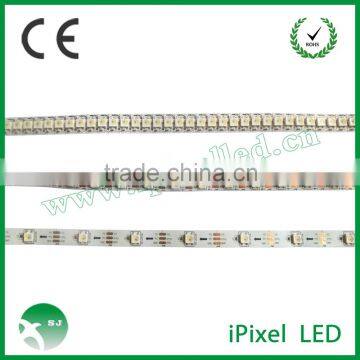

Supply white and black PCB.Non-waterproof and waterproof type both available.
Waterproof type with silicon tube can use outdoor decoration.

addressable dc5v led pixel strip ws2813 IC each led controllableaddressable dc5v led pixel strip ws2813 IC each led controllable

4 Pin Male and female Connector, easy for connect.

addressable dc5v led pixel strip ws2813 IC each led controllable

addressable dc5v led pixel strip ws2813 IC each led controllable

Controller:  DMX controller & decoder & SD controller & arduino controller
Change color individually and addressable full color.
We also supply mini controller and power supply as a kit.
addressable dc5v led pixel strip ws2813 IC each led controllable

Install: Every 1m with 2 holders and screw to install, and back adhesive on each strips.
Application:

addressable dc5v led pixel strip ws2813 IC each led controllable

addressable dc5v led pixel strip ws2813 IC each led controllable

Package:  5m/ reel 50 reel/ carton size: 46*26*46.5cm total weight :100string /carton
