Ws2801 Pixel Rgb Addressable Led Strip DMX Control

Ws2801 Pixel Rgb Addressable Led Strip DMX Control thumbnail-1
Ws2801 Pixel Rgb Addressable Led Strip DMX Control photo-1
US$ 5 - 15 MOQ: 10 Meters
Key Specifications
Get Latest Price
LED Light Source:
smd5050 epistar
Type:
Flex LED Strips
Input Voltage(V):
5
Contact Supplier Request Quote Chat Now
Shenzhen Shiji Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source smd5050 epistar
Type Flex LED Strips
Input Voltage(V) 5
Lamp Power 7.68W
Color Temperature(CCT) 5000-6000K
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 5000
Lamp Body Material Copper
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name SJ / iPixel
Model Number SJ-10032-2801

Specifications

1 IC control 1 led
32 pcs 5050 leds & 32pcs 2801 IC
ws2801 rgb pixel led strip DMX
2 years
CE & RoHS

SJ-10032-2801 strip   ws2801 pixel rgb addressable led strip DMX control



Description:

RGB Flexible Digital LED Strip

These are the Digital strips that can be controlled with computers and other DMX/Digital SD Card Controllers. The advantage of digital strips is that you can control each led (1.22" section) by itself so you can make video/chasing effects and other patterns. These color changing LED strips are flexible, bright, and easy to install!  They are much brighter and longer-lasting than traditional rope light.

Each roll of flexible LED strip is 16' long (actually 16'-5" or 5 meters with wire on each end).  The LED type used are the 5050 type super bright 3 in 1 SMD LEDs.  There are 160 per 16' roll.  They run on 5V DC.  The waterproof rating is IP65/IP67, which means that these flexible LED strips can get wet.

Details These RGB strips can change any color/pattern with the use of a controller or via DMX so you will need a SD Card Controller designed to control the 2801 chip or use standard DMX and a DMX to WS2801/WS2803 Converter.



 Datasheet

Input voltage

DC5V

Current

3.2A

LED Qty

32pcs SMD 5050 meter
IC Qty

32pcs Ws2801 IC chips per meter

Wave length(NM):

R-650mcd, G-520mcd,B-460mcd

Power(W/M)

7.68W/M

Signal

WS2801 chip

View angle

120 degree

Life span

over 50000hrs

Dimension

1000*12*2.2mm
Certification

ce & rohs

WaterProof

IP65 tube, silicon coating

Packaging

 5M/reel in antistatic bag

Picture details:

ws2801 pixel rgb addressable led strip DMX control

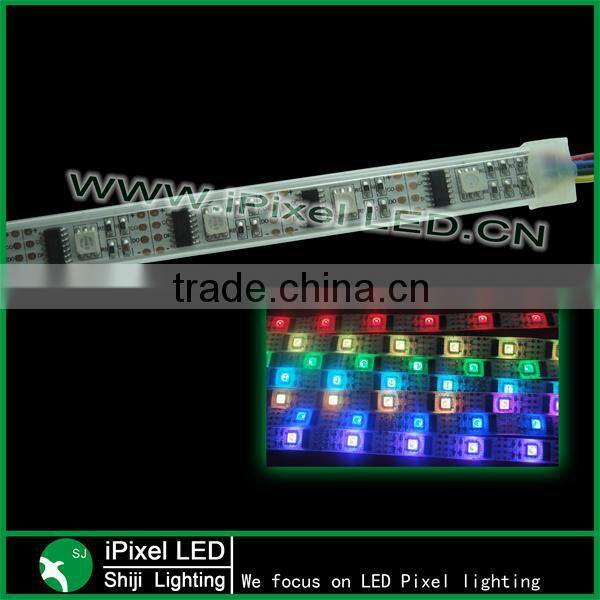

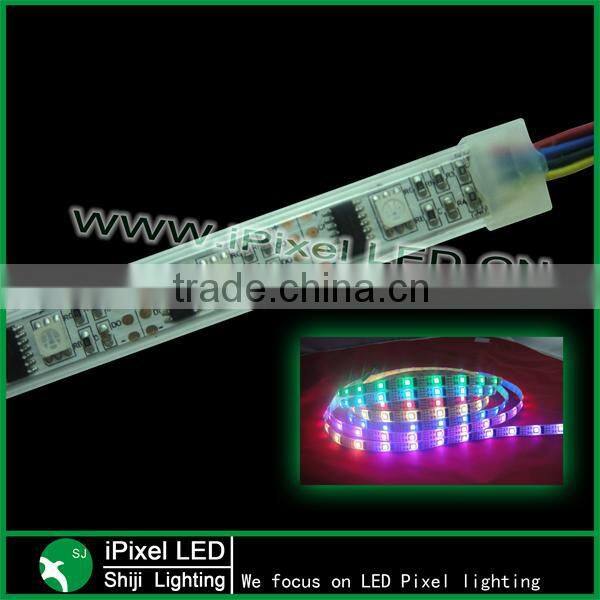

Waterproof type with silicon tube can use outdoor decoration.

ws2801 pixel rgb addressable led strip DMX controlws2801 pixel rgb addressable led strip DMX controlws2801 pixel rgb addressable led strip DMX control

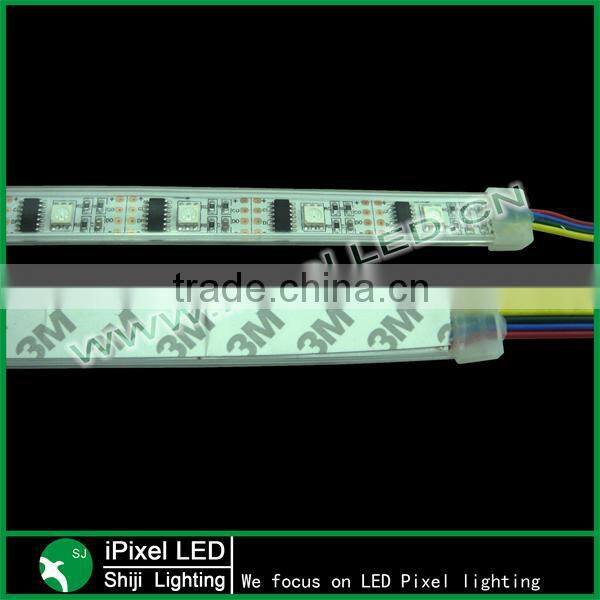

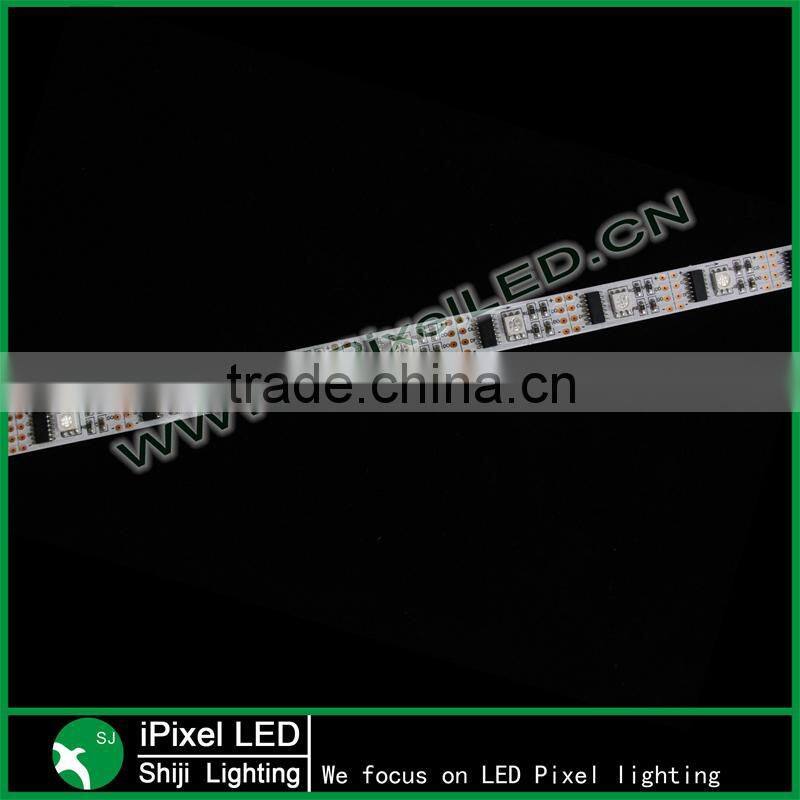

Non-waterproof tape for indoor decoration.

ws2801 pixel rgb addressable led strip DMX control

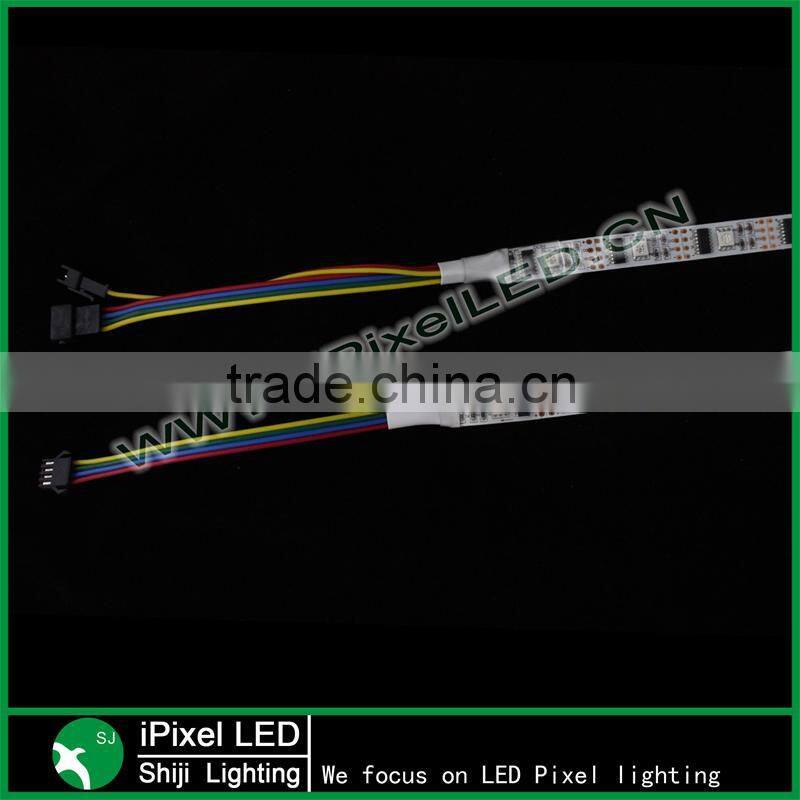

4 Pin Male and female Connector, easy for connect.

ws2801 pixel rgb addressable led strip DMX control

Controller:  DMX controller & decoder & SD controller & arduino controller

ws2801 pixel rgb addressable led strip DMX control

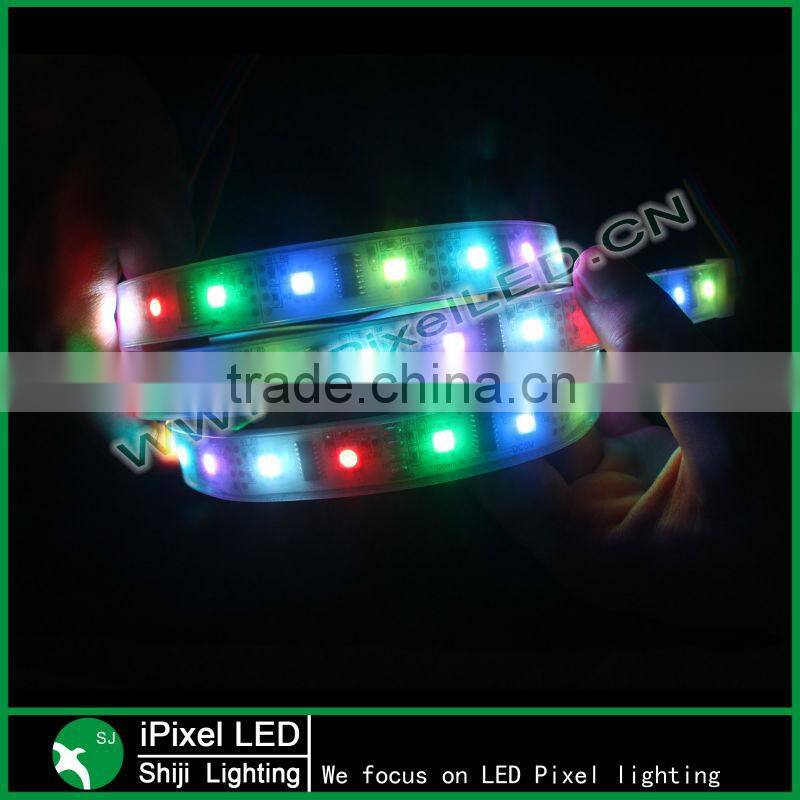

Effect: Change color individually and addressable full color.

ws2801 pixel rgb addressable led strip DMX control

Install: Every 1m with 2 holders and screw to install, and back adhesive on each strips.

ws2801 pixel rgb addressable led strip DMX controlws2801 pixel rgb addressable led strip DMX control



Package:  5m/ rell 50 rell/ carton size: 46*26*46.5cm total weight :100string /carton
