5V Digital LED Strip,30pcs 5050 30pcs WS2821,addressable Dmx Rgb Led Strip

Specifications

5V Digital LED strip,30pcs 5050 30pcs WS2821,addressable dmx rgb led strip

Description:

Two types; 30 leds/m outer IC ws2821 addressable flex strip,

               & 60leds/m IC built inside ws2821 addressable flex strip.

WS2821 dmx Flexible Digital LED Strip,

These are the dmx strips that can be controlled with computers and other DMX/Digital SD Card Controllers. The advantage of dmx strips is that you can control each led (1.31" section) by itself so you can make video/chasing effects and other patterns. These color changing LED strips are flexible, bright, and easy to install!  They are much brighter and longer-lasting than traditional rope light.

Each roll of flexible LED strip is 16' long (actually 16'-5" or 5 meters with wire on each end).  The LED type used are the 5050 type super bright 3 in 1 SMD LEDs.  There are 150 & 300 per 16' roll.  They run on 5V DC.  The waterproof rating is IP65/IP67, which means that these flexible LED strips can get wet.

Details These dmx strips can change any color/pattern with the use of a controller or via DMX so you will need a SD Card Controller designed to control the 2821 chip or use standard DMX and a DMX to WS2821a/WS2821b Converter.

Features and Benefits:

- Two types; 30 leds/m outer IC ws2821 addressable flex strip,

  & 60leds/m IC built inside ws2821 addressable flex strip.

- Control IC included, supporting numerous Color-change effects,
- Pcontrol by SD controller,Arduino,DMX512,Artnet
- Flexible PCB 5V low voltage input,
- PCB Color: black color only,
- cuttable every 1 LED,each IC control 1pcs RGB LED
- 5M per roll,Customer’s size available also
- 3M adhesive tape attached on back side of strip, but the waterproof version use Silicon Coating.
- We provided 5pcs plastic holder and 10pcs screw instead of 3M tape
- This not auto- addressable, you need to write the address by the DMX address writer

Datasheet

Picture details:

Verion one:  30 leds/m outer IC ws2821 addressable flex strip

About ws2821 IC:  WS2821 is a LED driven IC,which adopts the parallel single wire control signal,owns the independent programmable address and large range programmable

constant current,three channels output. we have ws2821A and ws2821B IC type.

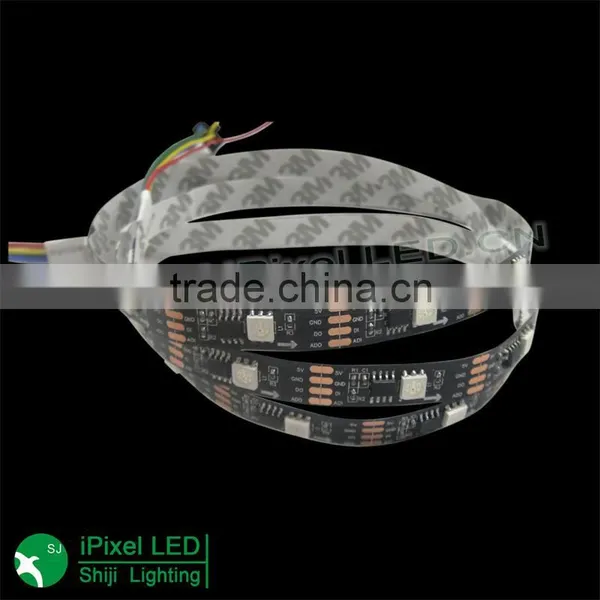

WS2821 IC strip 30leds/m, black PCB only, take DMX single directly, every strip with

3M back adhesive on the backside.

Verion two:  60leds/m IC built inside ws2821 addressable flex strip

About ws2821 led:  It's a new product: built WS2821 IC in the 5050 RGB LED,

it owns the following features:

1.WS2821’s data signals are in parallel connection,any LED failures won’t affect any other LEDs,

   whole effect won’t be effected at all.

2.WS2821’s protocol supply the DMX512 standard protocol,so it is compatible with the standard DMX512 control panels,so all WS2821 series products can be controlled by the DMX control panels directly.

3.WS2821 has address storage function inside, once writing address,shall be permanent preserved.

Following diagram is our recommend application:





Install: Every 1m with 2 holders and screw to install, and back adhesive on each strips.









Package:  5m/ rell 50 rell/ carton size: 46*26*46.5cm total weight :100string /carton
