dc24v smd5050 6 led 45mm amusement led pixel
Description:
1) IC chip included,supporting numerous color-change effects
2)PCB white color, 24Vlow voltage input
3)Every 6LEDs linear separable,customized length available
4)Extremely long lifespan&lower power consumption
5)20 pcs per string, 12cm cable spacing
6) ucs1903 ic led sign 45mm 6pcs/9pcs pixel for decoration
7. dc24v smd5050 6 led 45mm amusement led pixel
Item Modle No. |
SJ-45-24V |
Connector |
3Pin JST connector |
Voltage |
24V |
Power |
1.44W |
Color |
Pixel RGB color |
Light Source |
Epistar SMD5050 |
IC Chip |
UCS1903 |
MCD per PCS |
R4200/G9600/B4000 |
IP Rank |
IP65/IP67 |
Drilling Hole Diameter |
19~40mm |
Certification |
CE, RoHS |
Casing color |
clear |
Lifespan |
more than 30,000 hours |
Warranty |
2 years |
Applications:
The excellent pixel LED designed for outdoor digital lighting
ucs1903 ic led sign 45mm 6pcs pixel for decoration are the good choice for
Outdoor signboard
Casino Sign
Amusement park lighting
Playground fair lighting
Game machine
Features and Benififits:
- This is the new type programable LED Pixel
each LED ball control by a IC Chip with 6 LED
- the connectors on back side is non-waterproof
- each Pixel included 1pcs screw
- Recommended drill a 20-25mm Hole on the panel during the installation
- Every 20pcs in a group ,supply power to it to avoid
lifespan:30000H.Warranty :2 Years
voltage drop
Technical Parameter

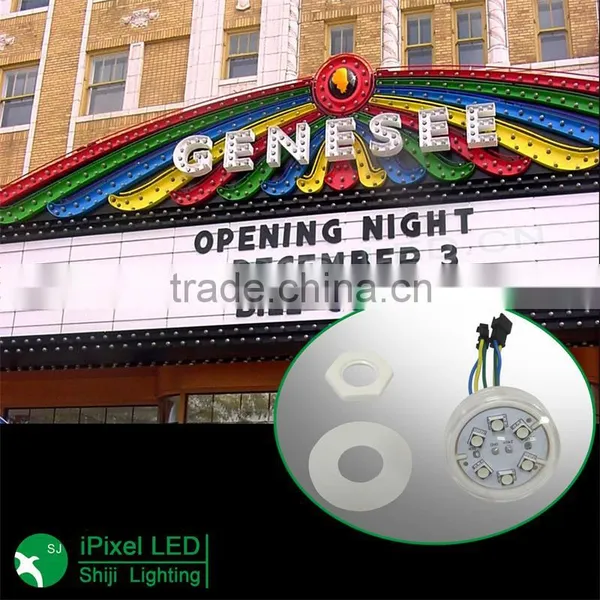

pictures of ucs1903 ic led sign 45mm 6pcs pixel for decoration
Application of ucs1903 ic led sign 45mm 6pcs pixel for decoration

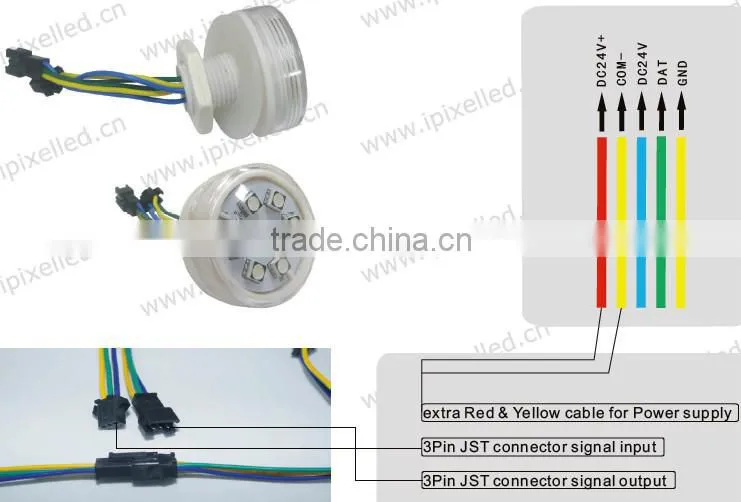

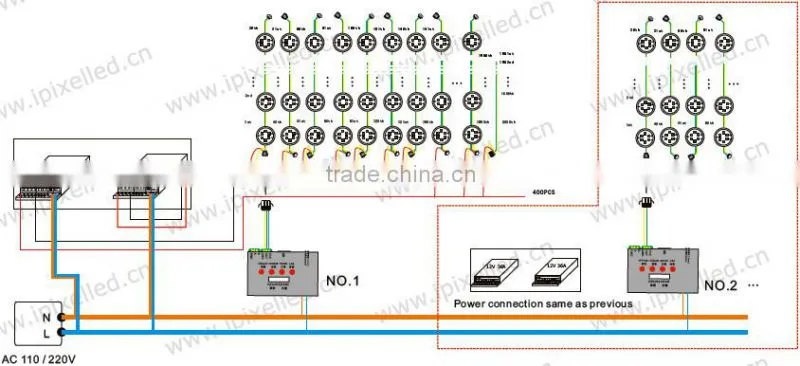

Connection of ucs1903 ic led sign 45mm 6pcs pixel for decoration
3 pin connector:
1.Reply your inquiry in 24 hours
2.Experienced staffs answer all your questions in fluent English
3.Customized design is available.OEM&ODM are welcome
4.Exclusive and unique solution can be provided to our customer by our well trained
and professional technicians
5.Special discount and protection of sales area provided to our distributor
1.Goods will be delivered within 3-5 working days after the payment received
2.We ship item via Door to Door service express or air and sea
ShenZhen Shiji Lighting Co.,Ltd established high-tech firm specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We're especially well-placed in the field of sign lighting solutions and interior lighting We're Located in ShenZhen south of China, near ShenZhen Airport and HK with convenient transportation Our product range is as follows:
1.5050&3528 LED module Backlight for Channel Letters & signage
2. RGB LED pixel light & LED string light
3. LED flexible strips & LED rigid bar for Decorative Lighting
4. High Power LED spot light
5.LED flood light
6.LED ceiling light
Clients are welcome to buy our standard products, or send us OEM requests. You will be impressed by our quality and service.
If any question,please feel free to contact us.Thank you.
