38mm RGB Digital LED Pixel Light 19mm Hole Install

38mm RGB Digital LED Pixel Light 19mm Hole Install photo-1
38mm RGB Digital LED Pixel Light 19mm Hole Install photo-2

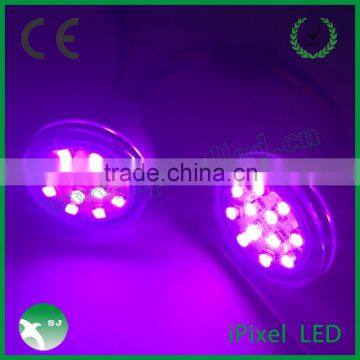

38mm RGB Digital LED Pixel Light 19mm Hole Install photo-3
US$ 0.7 - 1 MOQ: 50 Pieces
Key Specifications
Get Latest Price
LED Light Source:
epistar smd5050
Input Voltage(V):
24V
Lamp Power:
2.4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source epistar smd5050
Input Voltage(V) 24V
Lamp Power 2.4
Color Temperature(CCT) Other, pixel
Working Temperature(℃) -30, 60
Working Lifetime(Hour) 50000
Lamp Body Material Copper
IP Rating IP66
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name SJ / iPixel led
Model Number SJ-359-24V

 38mm RGB digital LED pixel light 19mm hole install



Description:

38mm ucs1903 led pixel point light.

1.RGB Pixels are digitally-controllable lights you can set to any color, or animation

2.Each RGB LED and controller chip is molded into a 'dot' of silicone.

3.The dots are waterproof and rugged.

4.There are four flanges molded in so that you can 'push' them.

5.into a 30mm drill hole in any material up to 1.5mm/0.06" thick.

6.They're typically used to make outdoor signs. Compared to our other  LED dots.

7.The pixels are connected by a 4pin JST conductor cable. Blue is CLKYellow is GNDGreen is DAT,Red is DC12V

8.Data is shifted down from one pixel to the next so that you can easily connect to  the strand or attach more onto the end.

9. DMX control 30mm ws2801 led pixel point light



Specification:

Products Name

38mm ucs1903 led pixel light

Model NO.

SJ-389-24V

Power Consumption

2.4W

Work Voltage

DC24V

IC model

ucs1903

LED Qty

12pcs SMD3535RGB

PCB Color

white

Dimension

38mm

Waterproof Grade

IP66

Work Temperature

-40-+60°C

Life-span

60,000H

Certificate

CE&RoHS

Warranty

2 years



Control System:

1. Offline control: SJ-T-1000s, SJ-8000C for off-line working, can control max 2048 Pixels, 8192 Pixels.

2. Online control: SJ-T-200K, 300K for on-line working, can control max 4096,8192 pixels.

3. Compatible with Arduino, DMX 512.



Connection:
1) Signal wire: DC+, DAT, CLK, GND
2) DC+ and GND connect to power supplier;DAT, CLK and GND connect to controller
3) Relative Controller: SPI controller support WS2801; when use DMX decorder, can connect to DMX system
4) Support online control



Picture details:



38mm pixel dot led



 38mm RGB digital LED pixel light 19mm hole install38mm RGB digital LED pixel light 19mm hole install38mm RGB digital LED pixel light 19mm hole install38mm RGB digital LED pixel light 19mm hole install38mm RGB digital LED pixel light 19mm hole install

38mm RGB digital LED pixel light 19mm hole install





Controller:  DMX controller & decoder & SD controller & arduino controller, t-1000S





Effect:  every pixel led with ucs1903 control, can change color individually.



Package: 20pcs/string 8cm lead in cable wire, 80pcs/An-ti static bag 640pcs/carton.
