Customised KD Metal Storage File Mass Shelf Steel Document Cabinet
US$ 80 - 150
MOQ: 1 Unit
Key Specifications
Get Latest Price
Material:
Metal
Folded:
Yes
Size:
H2300*W900*D560mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mobile Steel Library Bookshelf Adjustable Steel Compact Shelving Storage Rack Shelves High Density Manua Mass ShelfUS$ 80 - 150MOQ: 1 Unit -
Library Large Capacity Closed Density Steel Mobile File Storage Cabinet for Box Files/mobile Shelving System/mobile RackingUS$ 80 - 150MOQ: 1 Unit
-
Library School Manual Movable Shelving, Double -column Shelving/ Drawing Mass ShelfUS$ 80 - 150MOQ: 1 Unit
-
Customised Manual Movable Shelving , Steel Office Dense Ark ,movable ArchivesUS$ 80 - 150MOQ: 1 Unit
-
Intelligent Computer Moving Rack Steel Office Dense Ark Manual Movable ShelfvingUS$ 80 - 120MOQ: 1 Unit
Material
Metal
Folded
Yes
Size
H2300*W900*D560mm
Place of Origin
Henan, China
Brand Name
LONGLI
Model Number
MS-04
Our Service
Product Show
Customised KD metal storage file mass shelf / steel document cabinet
Customised KD metal storage file mass shelf / steel document cabinet
Product Description
| Item name | Customised KD metal storage file mass shelf / steel document cabinet |
| Model | MS-04 |
| Size | H2350*W900*D560mm |
| Description | |
| Standard | GB/T.13667.1-2003.All of the material up to grade GB710-86.The product phosphating process conform to GB6807-86.The certification ISO9001200 are guarantee the quality. |
|
Thickness |
1.Base:2.5 mm, Ground Rack:2.5mm, |
| 2.Guide Rail:20*20mm.Column :1.2 mm, Shelves:1.0 mm, Hanging Board:1.0 mm, | |
| 3.Door/Side Plate:0.8 mm, Bearing :Mp204 | |
| 4.Solid Shaft:45#Steel , Top Plate:0.8 mm, Toppling Preventing Device:3.0 mm. | |
| Surface | Acid washed,phosphatzied and elecrostatic powder coationg finsh or Industry powder coating finish, friendly environmental |
| Storage Space | 6 layers space |
| Loading Capacity | 80kgs/ shelf |
| Construction | CKD construction construction |
| Colour | Grey colour or customised |
| Certification | ISO 9001, ISO14001, OHSAS18001,SGS |
| Supply and Trade terms | |
| Port | Qingdao |
| Payment term | 30% deposit in advance, the balance upon the copy of B/L |
| Trade term | EXW, FOB, CIF |
| MOQ | Small qty for trial order is allowed |
| Production capacity | 20000pcs/month |
| Production leadtime | 1-4weeks |
Customised KD metal storage file mass shelf / steel document cabinet

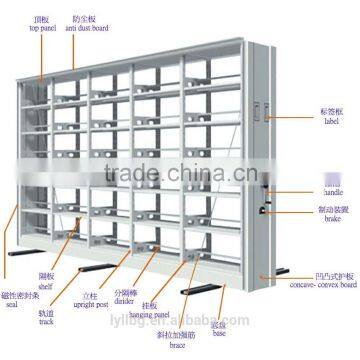

Detailed Images
CABINET INSIDE
| omponent Name | Size | Packing Size | N.W | |||||
| Base | 1855*550*130H | 1855*580*160H | 56.7KG | |||||
| Component Name | Size | Packing Size | N.W | |||||
| Ground Rack | 2000*140*25 | 2030*170*55H | 13.5KG | |||||
| Component Name | Size | Packing Size | N.W | |||||
| Transmission Driven | 74*175 | 780*380*380 | 4.9KG | |||||
| Component Name | Size | Packing Size | N.W | |||||
| Door Plate | 1050*430*15 | 1070*450*130H | 4KG | |||||
| Component Name | Size | Packing Size | N.W | |||||
| Side Plate | 2300*560*45H | 2315*570*215H | 10KG | |||||
| Component Name | Size | Packing Size | N.W | |||
| Column | 2300*550*45H | 2320*580*245H | 6.6KG | |||
| Component Name | Size | Material | N.W | |||||
| Lock Bar | 524L-557L | Steel Bar | 0.11 KG | |||||
| Component Name | Size | Material | N.W | |||
| Ratproof | 952*22*15 | Cold Rolled Steel | 0.25 KG | |||
| Component Name | Size | Packing Size | N.W | |||
| Hanging Board | 545*140 | 575*320*180 | 0.55 | |||
| Component Name | Size | Packing Size | N.W | |||
| Shelf Board | 846*270*25 | 870*300*180 | 2.2KG | |||
| Component Name | Size | Packing Size | N.W | |||
| Top Plate | 850*550*40 | 870*570*210 | 3.55 | |||
| Component Name | Size | Material | N.W | |||
| Dustproof Bar | 940*70 | Cold Rolled Steel | 0.4 | |||
| Component Name | Size | Packing Size |
| A.Lock | Lock:105*71 | 2320*580*245H |
| B.Name Card | Name Card:135*80 | |
|
C.Anti dumping device D. Brake Valves |
