Home > Furniture > Library Furniture > Library Bookshelf > Mobile Steel Library Bookshelf Adjustable Steel Compact Shelving Storage Rack Shelves High Density Manua Mass Shelf

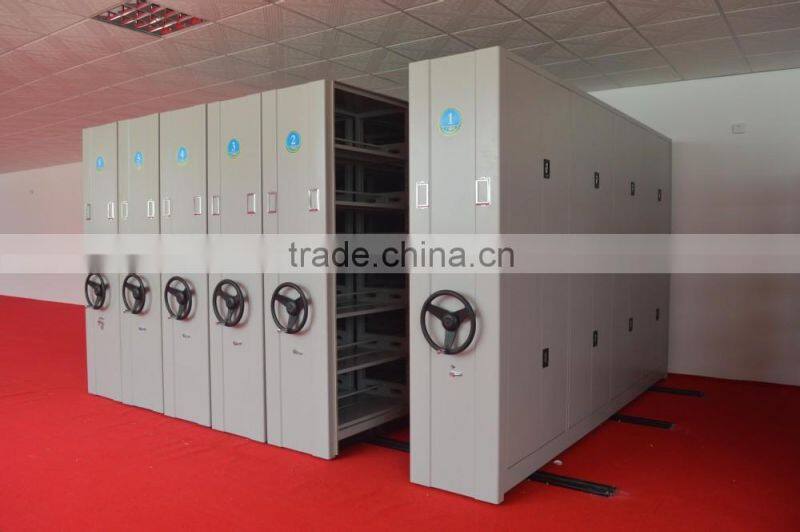

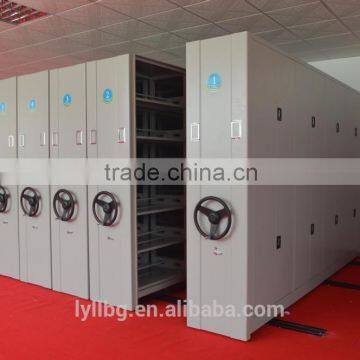

Mobile Steel Library Bookshelf Adjustable Steel Compact Shelving Storage Rack Shelves High Density Manua Mass Shelf
US$ 80 - 150
MOQ: 1 Unit
Key Specifications
Get Latest Price
Material:
Metal
Folded:
Yes
Size:
H2300*W900*D560mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Library Large Capacity Closed Density Steel Mobile File Storage Cabinet for Box Files/mobile Shelving System/mobile RackingUS$ 80 - 150MOQ: 1 Unit -
Library School Manual Movable Shelving, Double -column Shelving/ Drawing Mass ShelfUS$ 80 - 150MOQ: 1 Unit
-
Customised Manual Movable Shelving , Steel Office Dense Ark ,movable ArchivesUS$ 80 - 150MOQ: 1 Unit
-
Intelligent Computer Moving Rack Steel Office Dense Ark Manual Movable ShelfvingUS$ 80 - 120MOQ: 1 Unit
-
Luoyang Longli Produce High Quality Mass Mobile Steel Shelf SeriesUS$ 80 - 150MOQ: 1 Unit
Material
Metal
Folded
Yes
Size
H2300*W900*D560mm
Place of Origin
Henan, China
Brand Name
LONGLI
Model Number
MS-01
Our Service

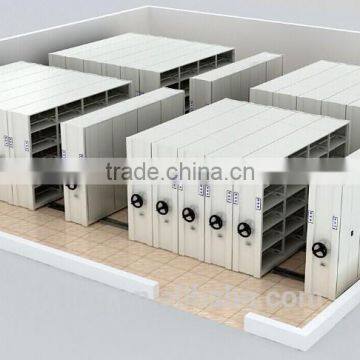

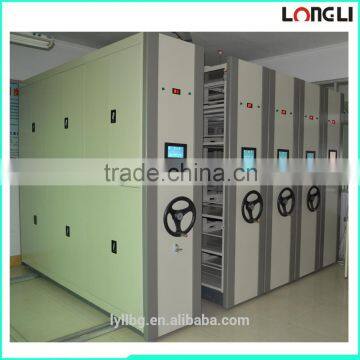

Product Show
Luoyang Longli Produce High Quality Mass Mobile Steel Shelf Series
Luoyang Longli Produce High Quality Mass Mobile Steel Shelf Series
Product Description
| Item name | Luoyang Longli Produce High Quality Mass Mobile Steel Shelf Series |
| Model | MS-01 |
| Size | H2350*W900*D560mm |
| Description | |
| Standard | GB/T.13667.1-2003.All of the material up to grade GB710-86.The product phosphating process conform to GB6807-86.The certification ISO9001200 are guarantee the quality. |
|
Thickness |
1.Base:2.5 mm, Ground Rack:2.5mm, |
| 2.Guide Rail:20*20mm.Column :1.2 mm, Shelves:1.0 mm, Hanging Board:1.0 mm, | |
| 3.Door/Side Plate:0.8 mm, Bearing :Mp204 | |
| 4.Solid Shaft:45#Steel , Top Plate:0.8 mm, Toppling Preventing Device:3.0 mm. | |
| Surface | Acid washed,phosphatzied and elecrostatic powder coationg finsh or Industry powder coating finish, friendly environmental |
| Storage Space | 6 layers space |
| Loading Capacity | 80kgs/ shelf |
| Construction | CKD construction construction |
| Colour | Grey colour or customised |
| Certification | ISO 9001, ISO14001, OHSAS18001,SGS |
| Supply and Trade terms | |
| Port | Qingdao |
| Payment term | 30% deposit in advance, the balance upon the copy of B/L |
| Trade term | EXW, FOB, CIF |
| MOQ | Small qty for trial order is allowed |
| Production capacity | 20000pcs/month |
| Production leadtime | 1-4weeks |
Luoyang Longli Produce High Quality Mass Mobile Steel Shelf Series
Detailed Images
CABINET INSIDE
| omponent Name | Size | Packing Size | N.W | |||||

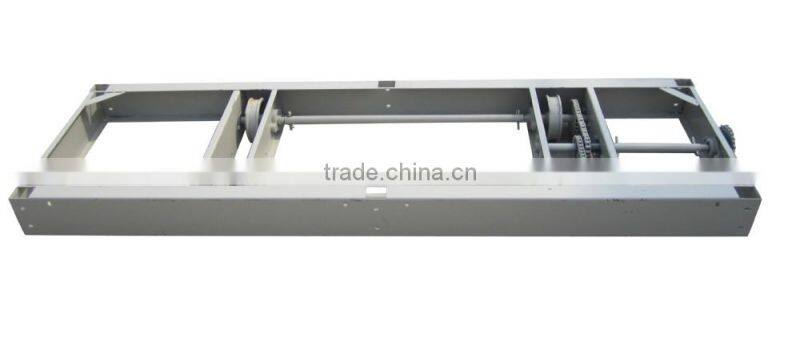

| Base | 1855*550*130H | 1855*580*160H | 56.7KG | |||||
| Component Name | Size | Packing Size | N.W | |||||

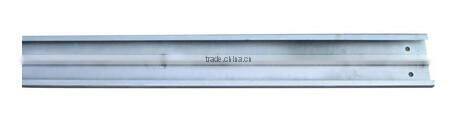

| Ground Rack | 2000*140*25 | 2030*170*55H | 13.5KG | |||||
| Component Name | Size | Packing Size | N.W | |||||

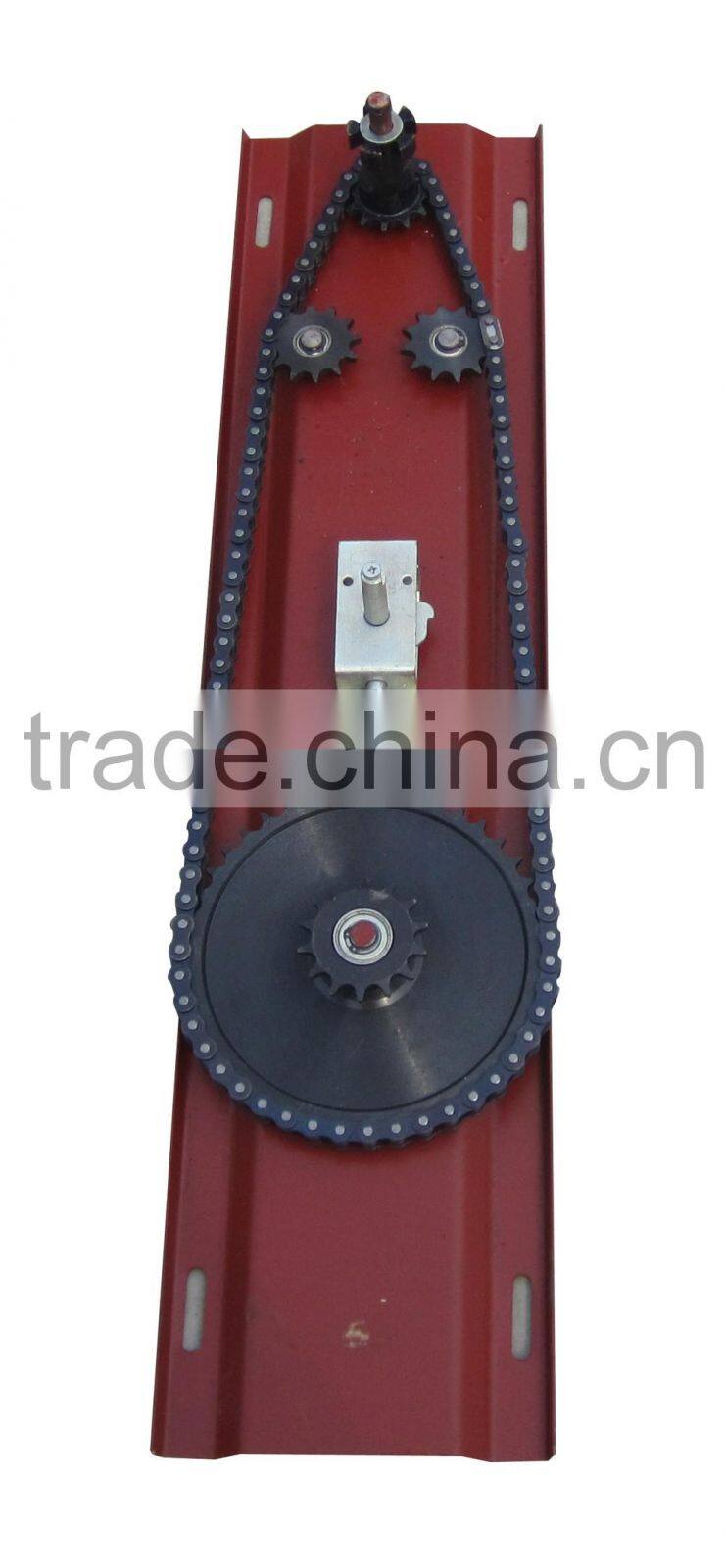

| Transmission Driven | 74*175 | 780*380*380 | 4.9KG | |||||
| Component Name | Size | Packing Size | N.W | |||||

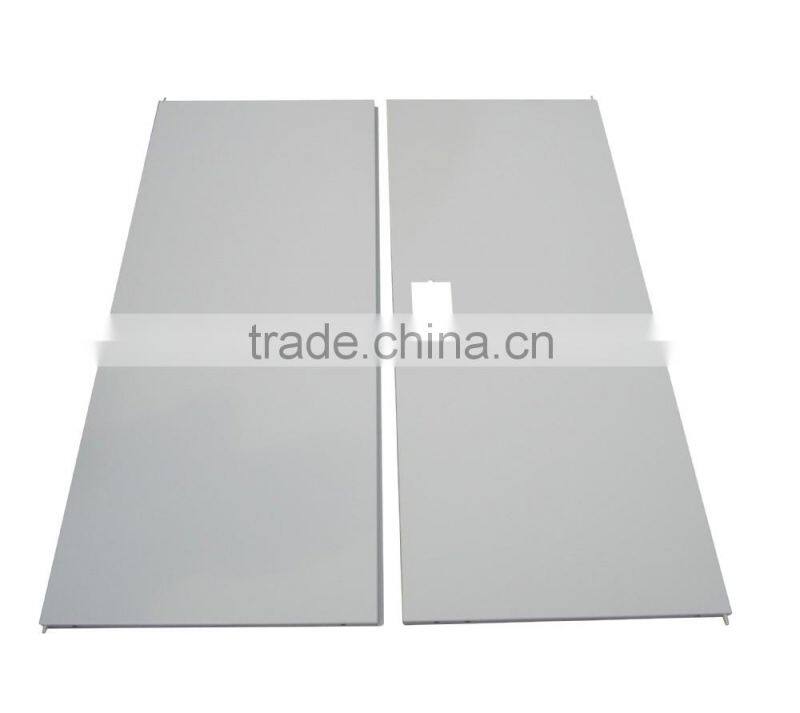

| Door Plate | 1050*430*15 | 1070*450*130H | 4KG | |||||
| Component Name | Size | Packing Size | N.W | |||||
| Side Plate | 2300*560*45H | 2315*570*215H | 10KG | |||||
| Component Name | Size | Packing Size | N.W | |||

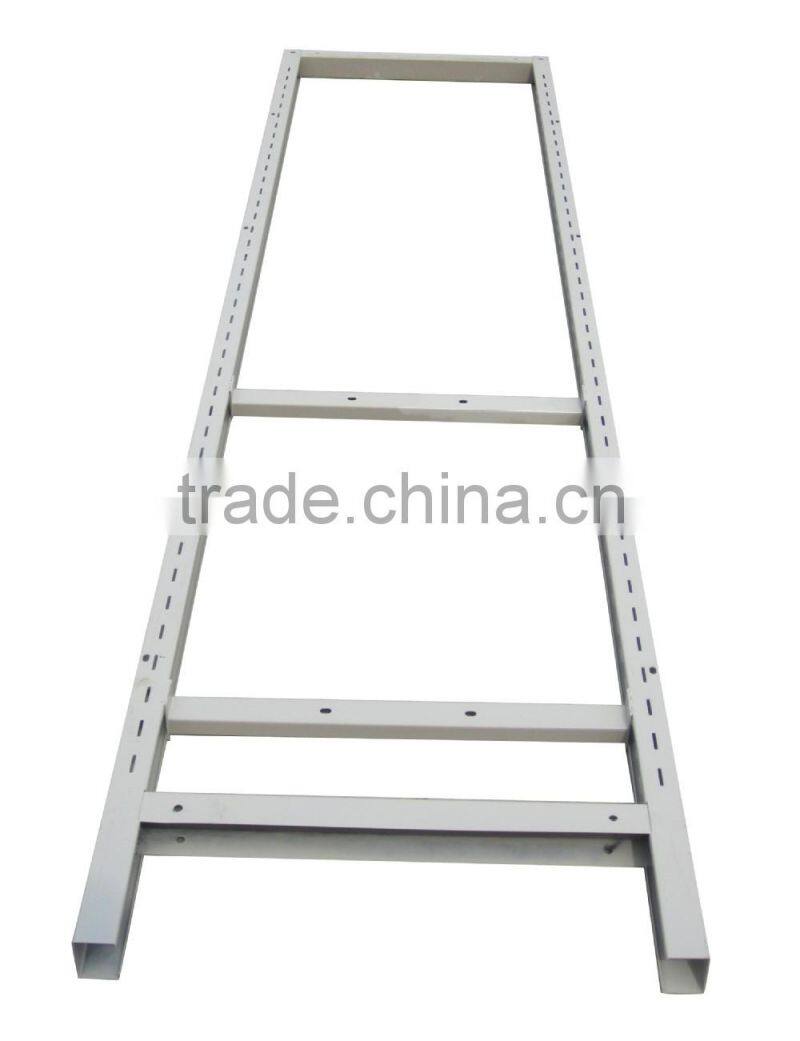

| Column | 2300*550*45H | 2320*580*245H | 6.6KG | |||
| Component Name | Size | Material | N.W | |||||

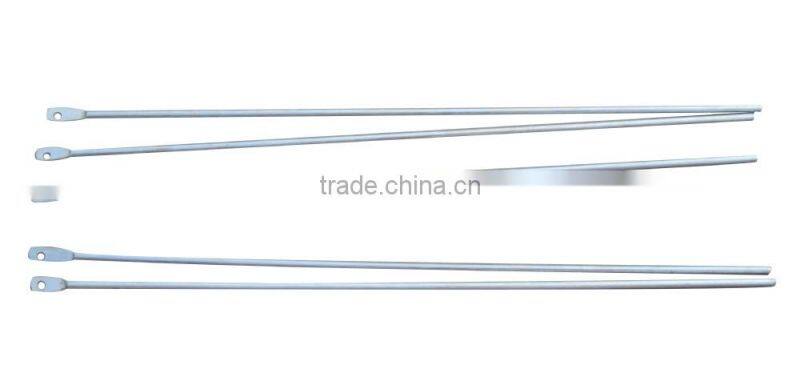

| Lock Bar | 524L-557L | Steel Bar | 0.11 KG | |||||
| Component Name | Size | Material | N.W | |||
| Ratproof | 952*22*15 | Cold Rolled Steel | 0.25 KG | |||
| Component Name | Size | Packing Size | N.W | |||
| Hanging Board | 545*140 | 575*320*180 | 0.55 | |||
| Component Name | Size | Packing Size | N.W | |||

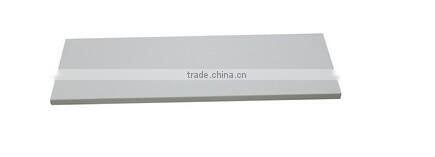

| Shelf Board | 846*270*25 | 870*300*180 | 2.2KG | |||
| Component Name | Size | Packing Size | N.W | |||

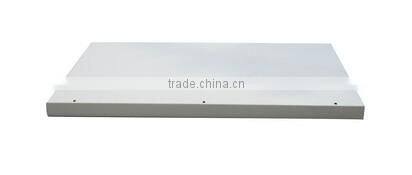

| Top Plate | 850*550*40 | 870*570*210 | 3.55 | |||
| Component Name | Size | Material | N.W | |||
| Dustproof Bar | 940*70 | Cold Rolled Steel | 0.4 | |||

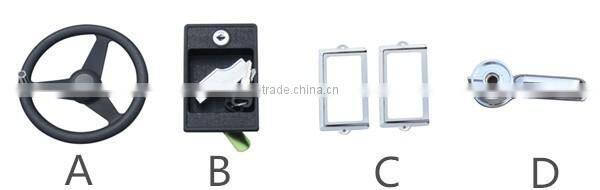

| Component Name | Size | Packing Size |
| A.Lock | Lock:105*71 | 2320*580*245H |
| B.Name Card | Name Card:135*80 | |
|
C.Anti dumping device D. Brake Valves |
