Specifications
600v solid state relayControl Methods: DC-AC
Load Voltage: 80A, 100A, 120A
Load Voltage: 480V/AC 660V/AC 1200V/AC

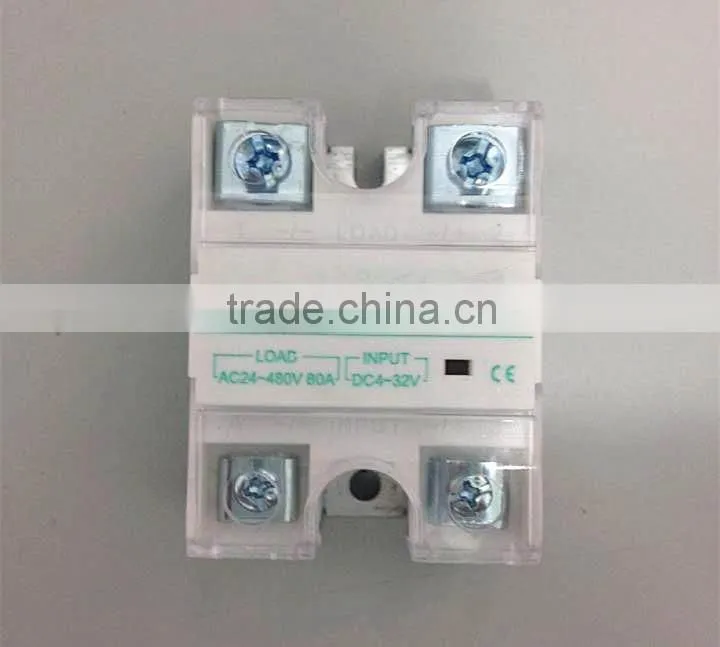

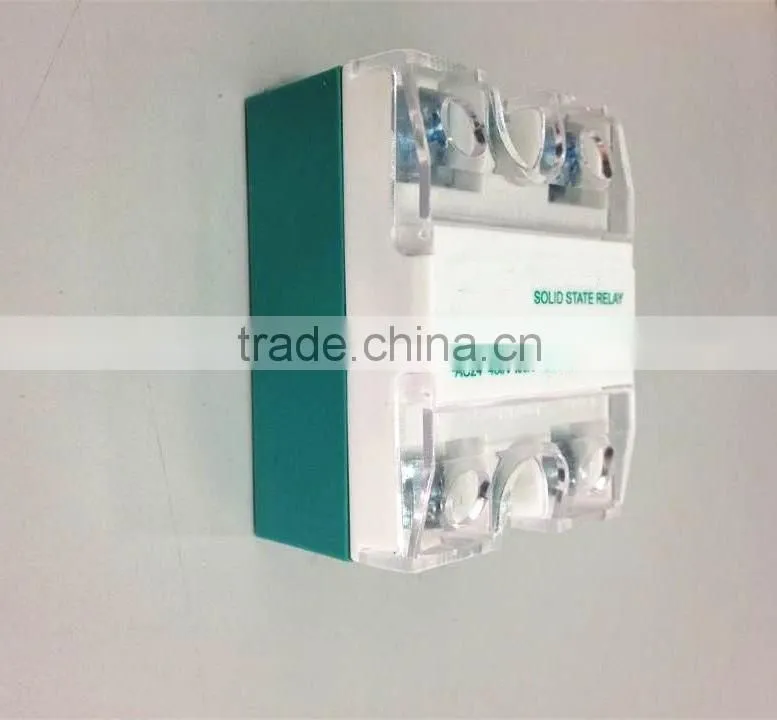

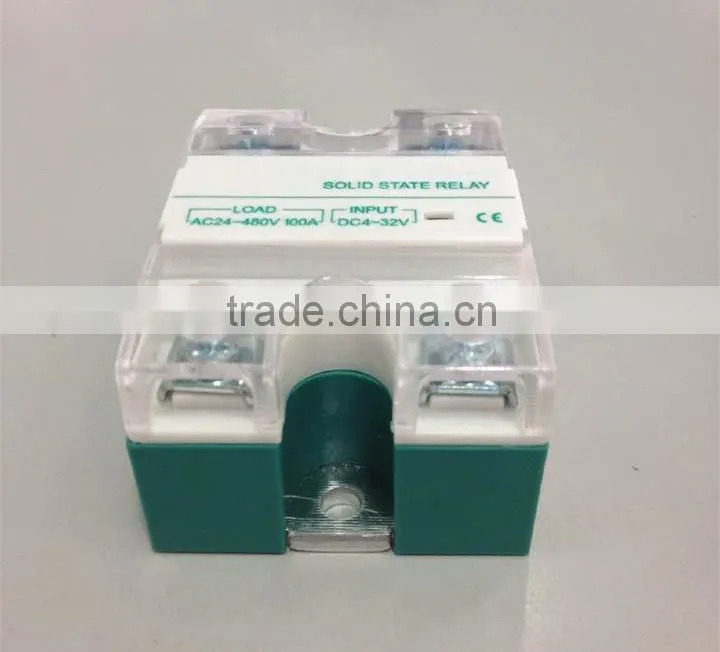

600v solid state relay
Description 600v solid state relay
solid-state relay (SSR) is a new non-contact electronic switching device with excellent switching performance, and it is designed with international advanced technology. It requires only a small input control current, can be well compatible with TTL, HTL, CMOS integrated circuits and etc; While the output loop adopts SCR or GTR to switch on and
off the load current. There is photocoupler to isolate the input and output, no movable contact parts. It comes with the features of reliable, fast switch, noiseless, long life, compact, no spark, corrosion resistant, explosion-proof, antivibration and so on. It is widely applied in computer external connect device, constant heating equipment; numerical control machines, remote control systems, industrial automation equipment; signal lamps, traffic lights, stage lighting control equipment; instruments, medical equipment, photocopiers, photo printing, rubber and plastic machinery , automatic washing machine and many other fields where need the explosion-proof, anti-temperature, corrosion resistant. It becomes the ideal replacements of relay (EMR) family.
Specification 600v solid state relay
| Control Methods | DC-AC 600v solid state relay |
| Load Voltage | 80A, 100A, 120A |
| Load Voltage | 480V/AC 660V/AC 1200V/AC |
| Control Voltage | 3-32VDC |
| Control Current | DC: 3-25mA |
| On Voltage | ≤1.5V/AC |
| Off Leakage Current | ≤5mA |
| On-off Time | ≤10mS |
| Dielectric Strength | 2500V/AC |
| Insulation Resistance | 1000MΩ/500V/DC |
| Ambient Temperature | -30~+75 |
| Cooling Condition | Load current 10-25A, heat sink required |
| Mounting Methods | bolt fixed |
| The work instructions | LED |
| Weight | 120g 600v solid state relay |
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available. OEM & ODM are welcome.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to your distributor.
certificates:
Q 1. what's the delivery time?
Q 2. tell me the standard of package?
A. Standard export packing is nutural carton box.
Q 3.Can you accept to use our logo?
A.If you have good quantity,it absolute no problem to do OEM.
Q 4.We want to know monthly capacity.
A. 200000pcs/month.
