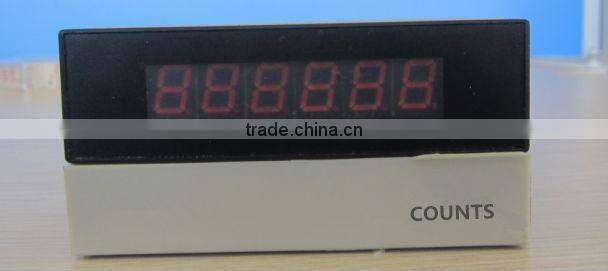

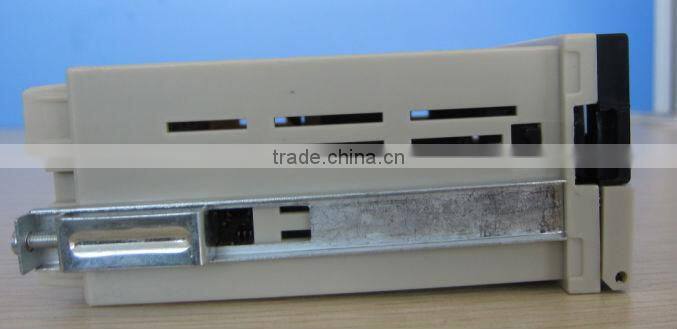

6 digital electronic counter
Description 6 digital electronic counter
DIN-size:48×96mm standard panel design
Multi signal input type (contact signal or electric signal)
Widely range, high precision, long memory as more than 10 year
Supply it DC12V (30mA max) from sensor.
Specification 6 digital electronic counter
| Operating voltage: | AC 24V, 110V,127V, 220V,380V/50HZ |
| Allow fluctuating voltage range | (85%~110%)Ue; DC24V. |
| Count range : | 1~999999 |
| Count input: | 1) Contact signal; 2) Level signal (L: 0-DC2V H: DC4V~30V; H valid, input resistance ≥ 4.7KΩ) |
| Top count rate: | 200Hz(Internal switch at 1 as OFF) |
| Memory: | 10 year |

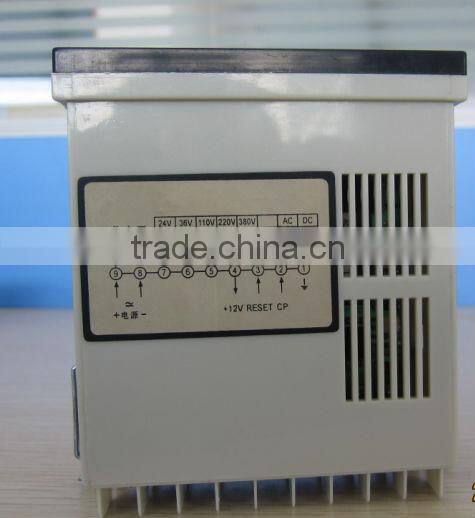

| Reset type: | 1) External terminal 1, 3 |
| Assistant output power: | DC12V±10% 30mA (max) |
| Count mode: | addition count |
| Condition temperature: | -5~+45℃(No freeze) |
6 digital electronic counter
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available. OEM & ODM are welcome.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to your distributor.
Certificates:
A. usually it will take about 7 working days for production.
Q 2. tell me the standard of package?

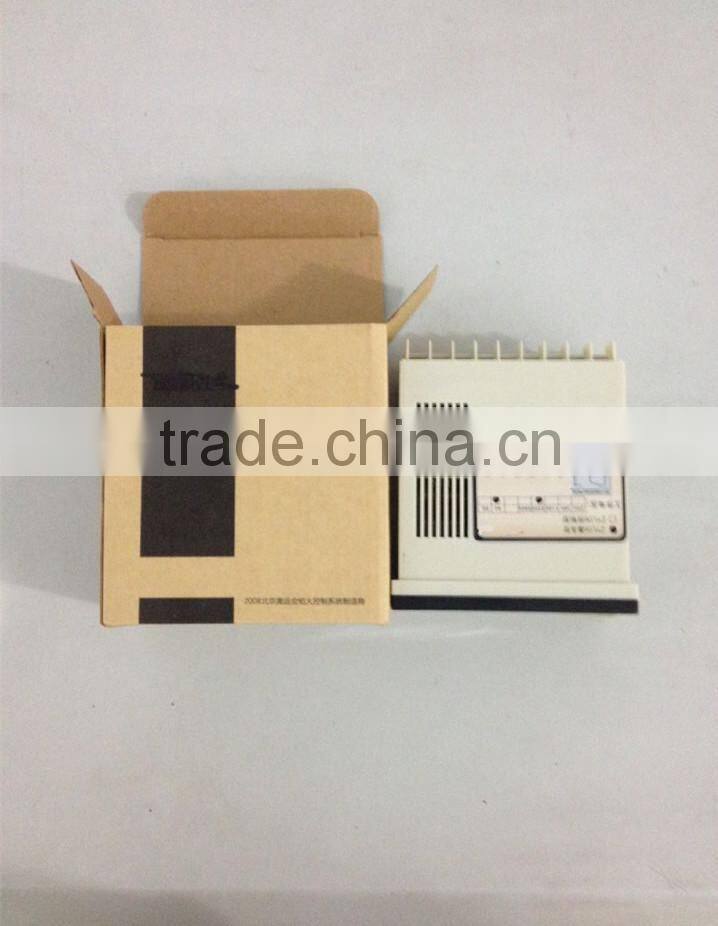

A. Standard export packing is nutural carton box.
Q 3.Can you accept to use our logo?
A.If you have good quantity,it absolute no problem to do OEM.
Q 4.We want to know monthly capacity.
A. 200000pcs/month.
