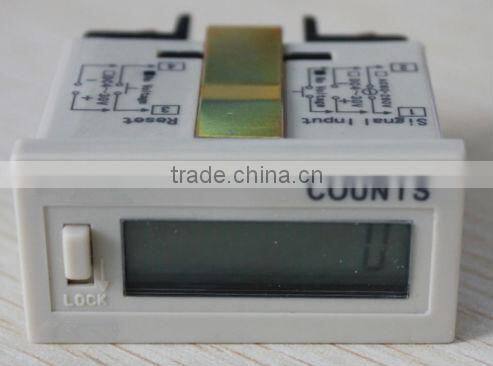

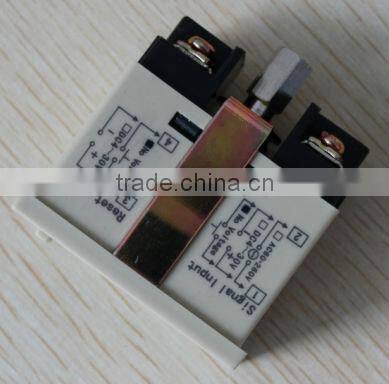

digital frequency counter
Description digital frequency counter
1. DIN48*24mm standard panel, 50*60mm extension available
2. Internal Lithium battery, no external power required.
3. 6 or 8 digitals LCD display, big and clear display
4. Panel reset with lock, avoid error operate
5. Input contact or electrical signal, reliable and exact count
6. Top count rate is 200Hz.
7. No mechanical abrasion, long life time, to replace the electromagnetism counter
Specification digital frequency counter
Power: internal power
Battery life: appr. 5 year (25℃)
Count range: 0~999999/99999999
Minimum count signal: DI-C03-L 100ms (10Hz)
DI-C03-VL/ DI-C03-AL 50ms (10 Hz)
DI-C03-H 5ms (100 Hz)
DI-C03-VH 2.5ms (200 Hz)
Reset: panel button reset/ external terminal reset
Operating temperature: -10~40℃(no freeze)
Humidity: 35~85%RH
No voltage input:
Max connect resistance: ≤10KΩ (count ON)
Min disconnect resistance: ≥1000KΩ (count OFF)
Voltage input: H valid
(1) L:DC0~2V H:DC4~30V
(2) L:≤5%Ue H:AC220V/110V(85%-110%)
Min reset pulse: ≥0.5s
Weight: appr.60g
Installation dimension: 22.5×45mm
Model digital frequency counter
Model | DI-C03- 6L | DI-C03- 6H | DI-C06- 6VL | DI-C03- 6VH | DI-C03- 8L | DI-C03- 8H | DI-C03- 8VL | DI-C03- 8VH | |||
Count rate | 10Hz | 100Hz | 10Hz | 200Hz | 10Hz | 100Hz | 10Hz | 200Hz | |||
Display | LCD display | ||||||||||
Reset | External/panel reset | External/panel reset | |||||||||
Display | 6 digital (6.8mm height) | 8 digital (6.8mm height) | |||||||||
Reset input | No voltage input (contact or transistor input) | Voltage input | No voltage input (contact or transistor input) | Voltage input | |||||||
Count input | |||||||||||
digital frequency counter
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available. OEM & ODM are welcome.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to your distributor.
Certificates:
A. usually it will take about 7 working days for production.
Q 2. tell me the standard of package?
A. Standard export packing is nutural carton box.
Q 3.Can you accept to use our logo?
A.If you have good quantity,it absolute no problem to do OEM.
Q 4.We want to know monthly capacity.
A. 200000pcs/month.
