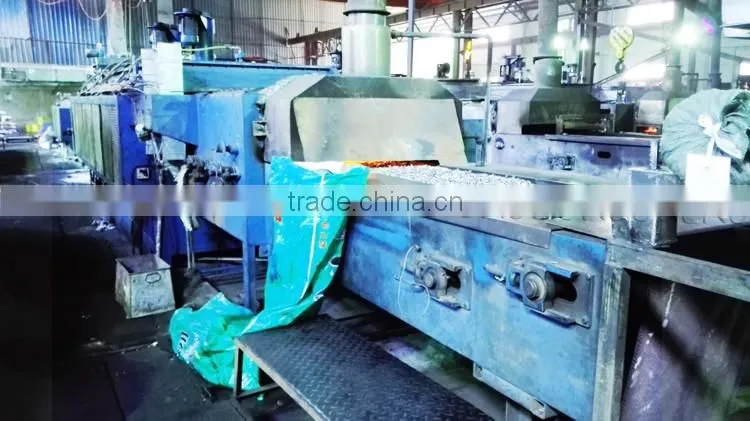

Continuous mesh belt conveyor gas carburizing furnace for sale
Multifunction mesh belt furnace
- Standard parts industry self tapping screw, drilling screw, wall screws, wood screws and other carbon heat treatment. High tensile screws, inner hexagon screw, 5-8.2 screw, nut, etc. For quenching and tempering heat treatment.
- Adjustable wrench, open end wrench, box spanner, hexagon wrench, screwdriver, sleeve, pliers, jack, such as hand tools for quenching and tempering heat treatment.
- Auto screw, shaft, hub, connecting rod, car lock ring, piston pin, locomotive screw, top and bottom plug, size bowl, drive shaft, the five group, front fork group, as group, fast valve group and so on automobile, motorcycle, bicycle parts of carburizing heat treatment.
- Folder, blade, file, the nail in the four corners, lighters, shoes core, hair clips, pen holder, etc for quenching and tempering heat treatment.
- Steel nails, nail clippers, hook, chain, hook locks and other hardware parts for carburizing heat treatment.
- Textile machinery parts, bearing parts of carburizing and quenching and tempering heat treatment.
Features of Mesh belt furnace:
- The mesh belt furnace adopted chain wheel to drive high temperature resistant stainless steel roller, to drag mesh belt move inside of furnace hearth circulatory and walk smoothly, reduce the loss of the mesh belt and increase the life of mesh belt; Reducing furnace heat loss, high thermal efficiency.
- Equipped with stir fan inside of furnace to ensure uniform temperature and protect (carburizing) atmosphere evenly dispersed, improve the carburizing speed, high output, workpiece quality stable.
- On the tail of furnace equipped with an exhaust fan, can timely discharge waste gas, improve workpiece surface gloss.
- On the bottom of the furnace body is equipped with slag removal mouth, convenient and clean up the clutter.
Models and Specifications
| Model Type | Main Furnace Power (KW) | Complete Line Power | Rated Temperature (℃) | Temperature Control Zone | Carbon Control Zone | Effective Working Size LxWxH(mm) | Quenching Production Capacity (kg/h) | Carburizing Production Capacity (kg/h) |
| ZRHG60-4-9 | 60KW | 95KW | 950 | 3 | 1 | 2400×500×80 | 100 | 80 |
| ZRHG80-5-9 | 80KW | 135KW | 950 | 3 | 1 | 3200×500×80 | 180 | 140 |
| ZRHG100-5-9 | 100KW | 165KW | 950 | 3 | 1 | 4100×500×80 | 200 | 160 |
| ZRHG140-6-9 | 140KW | 240KW | 950 | 4 | 1 | 4400×600×80 | 250 | 200 |
| ZRHG170-5-9 | 170KW | 280KW | 950 | 5 | 2 | 6700×500×80 | 350 | 300 |
| ZRHG180-6-9 | 180KW | 290KW | 950 | 5 | 2 | 5800×600×80 | 380 | 320 |
| ZRHG200-6-9 | 200KW | 320KW | 950 | 5 | 2 | 6700×600×80 | 420 | 360 |
| ZRHG240-8-9 | 240KW | 380KW | 950 | 5 | 2 | 6700×800×80 | 500 | 420 |
1.transmission mechanism
2.preheating zone
3.thermal fuse or radiant tube
4.Heating zone
5.stirring fan
6.oil pool lift
7.washing machine
8.tempering furnace
1.Why do we choose RongDongSheng ?
We are professional manufacturer of electric resistance heat treatment furnace located in Foshan city of Guangdong province , Which has over 15 years experience for producing furnace . Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
2.Have you exported machine to overseas market ?
Yes . We has exported machine to Thailand, Malaysia , Pakistan , India, Vietnam , Indonesia, Laos, Africa , South Africa , Iran , etc.
3.Is there any quality warranty and after service ?
The warranty of mechanical portion of the equipment shall be a year after you received the equipment; And help buyer installation and commissioning the equipment , and free training operator.
4.If there are broken of your machine and spare parts , what should I do ?
In case of any failure occurred in the warranty, damaged parts to be replaced shall be offered free of charge .we providelifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge.
Each year,many of our customer will visit our factory to check the furnace quality,and back with satisfication.
