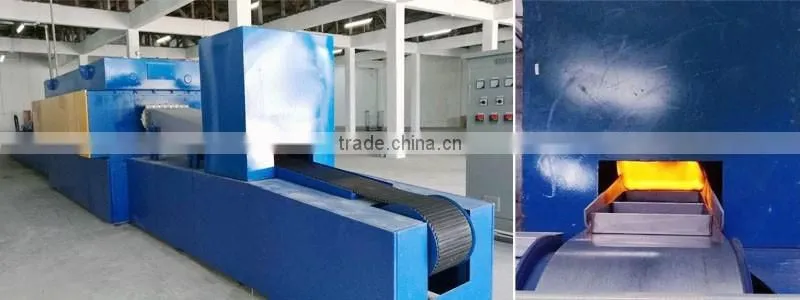

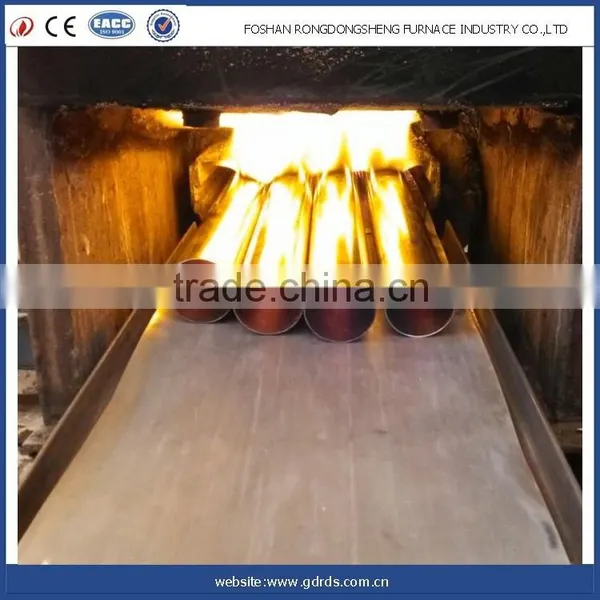

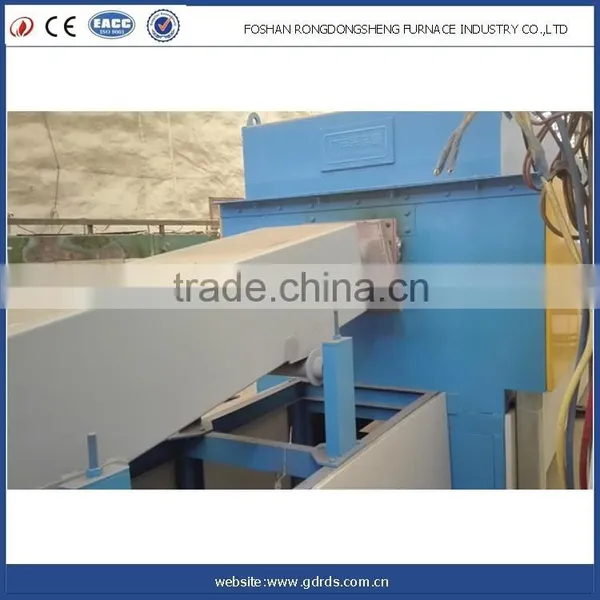

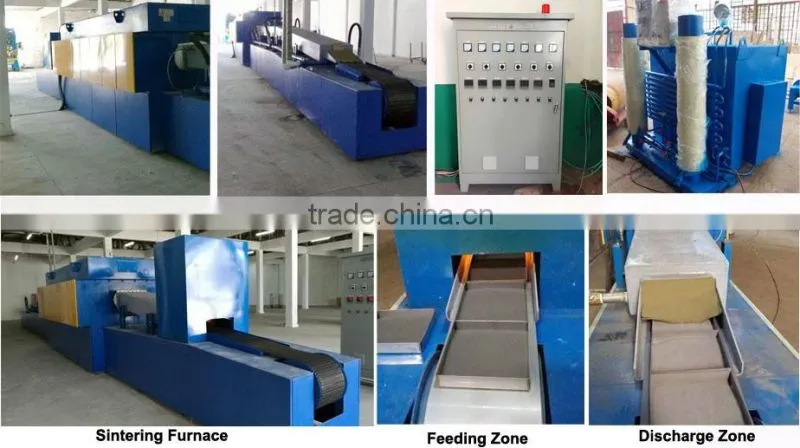

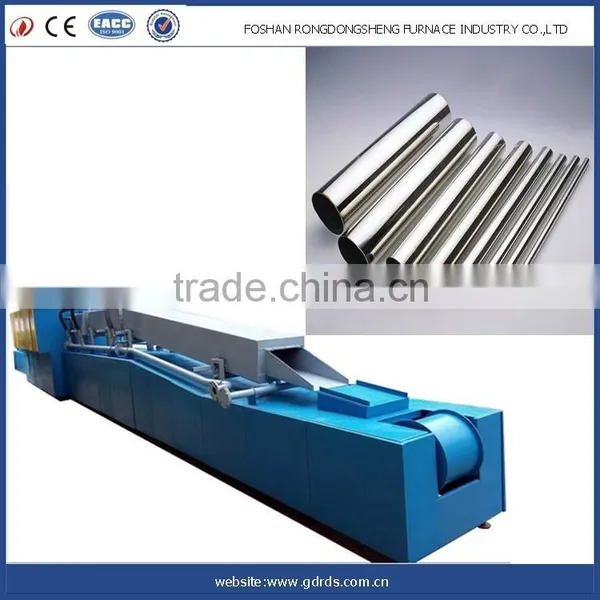

Factory price electric continuous sintering annealing furnace for stainless steel pipe
Brief Introduce:

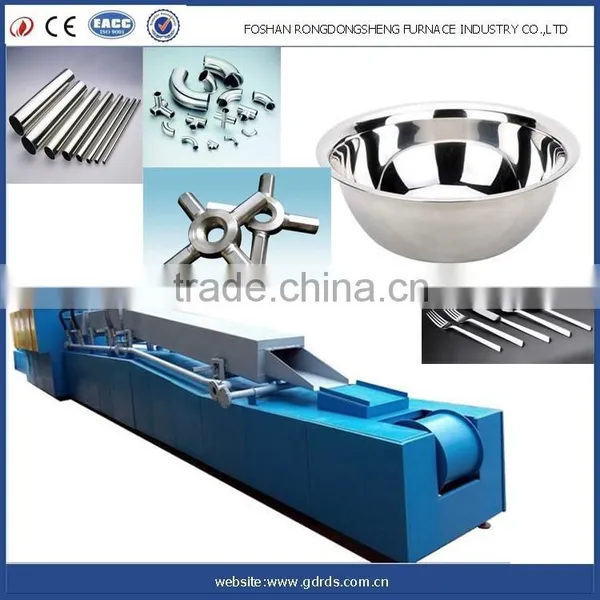

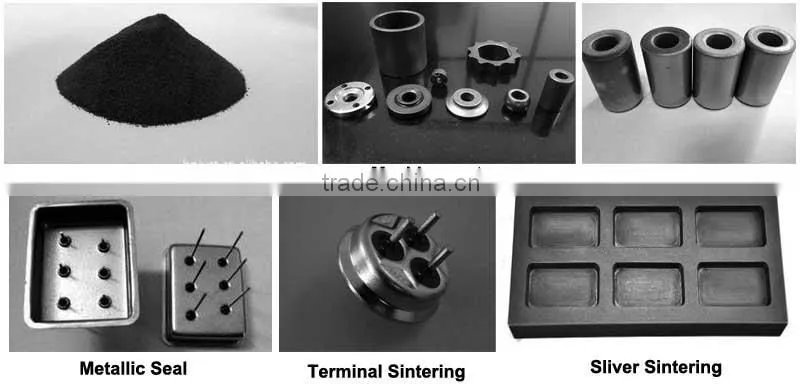

Mainly use for powder metallurgy sintering, annealing of magnetic materials and some small metal parts, such as watch case, strap, kitchenware industry of annealing, quenching and stainless steel bright annealing, especially Cr13 stainless steel quenching, stainless steel solid solution treatment, etc.
Ammonia gas ( decomposition into 75% hydrogen gas and 25% nitrogen gas ) : The surface of wokrpieces is bright without oxide layer with protective atmosphere
| Model | Rated Power (kw) | Number of Heating area | Hearth Size | Effective Cooling Length (mm) |
Output (kg/h) |
Ammonia Decomposition Furnace Power (kw) |
||
| L (mm) |
W (mm) |
H (mm) |
||||||
| Rc 5-7 |
15 | 1 | 1300 | 70 | 40 | 2500 | 15 | 5.5 |
| Rc 6-15 |
20 | 3 | 1600 | 155 | 40 | 3500 | 22 | 7 |
| Rc 6-20 |
21 | 3 | 1600 | 200 | 50 | 3500 | 28 | 10 |
| Rc 8-15 |
24 | 3 | 2000 | 155 | 50 | 4800 | 35 | 7 |
| Rc 8-20 |
30 | 3 | 2000 | 200 | 60 | 4800 | 40 | 10 |
| Rc 12-15 |
45 | 3 | 2600 | 155 | 50 | 6800 | 50 | 7 |
| Rc 12-20 |
45 | 3 | 2600 | 200 | 60 | 6900 | 52 | 10 |
| Rc 16-20 |
60 | 4 | 3500 | 200 | 60 | 9000 | 80 | 10 |
| Rc 16-25 |
70 | 4 | 3500 | 250 | 80 | 9000 | 100 | 10 |
| Rc 16-30 |
85 | 4 | 3500 | 300 | 80 | 9000 | 120 | 10 |
| Rc 20-35 |
120 | 5 | 4500 | 350 | 120 | 11800 | 200 | 15 |
Foshan RongDongsheng Furnace Industry Co.,Ltd. was founded in 1997 in Foshan , Guang dong Province of China , Covering more than 10000 M2 and very closed to Guangzhou city
Our company has passed ISO9001 international management system certification and European CE certificate.
With many years experiences in R&D and manufacturing, wide learning and absorbing from others, continuous summarization and innovation, as well as advanced manufacturing equipments and first-class technicians, we set up our branch company at Shun de City of Guan dong province in 1999.
1.Why do we choose RongDongSheng ?
We are professional manufacturer of electric resistance heat treatment furnace located in Foshan city of Guangdong province , Which has over 18 years experience for producing furnace . Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
2.Have you exported machine to overseas market ?
Yes . We has exported machine to Thailand, Malaysia , Pakistan , India, Vietnam , Indonesia, Laos, Africa , South Africa , Iran , etc.
3.Is there any quality warranty and after service ?
The warranty of mechanical portion of the equipment shall be a year after you received the equipment; And help buyer installation and commissioning the equipment , and free training operator.
4.If there are broken of your machine and spare parts , what should I do ?
In case of any failure occurred in the warranty, damaged parts to be replaced shall be offered free of charge .we providelifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge.
