Batch pit-type black wire electric annealing furnaces for sale
Brief introduce of pit type furnace :
This series pit type annealing furnace is cycle furnace, main be used for various kinds of standard parts , wire annealing heat treatment, especially for various steel wire , copper wire , aluminum wire and other workpieces bright annealing heat treatment .
Applicable for bright anealing tempering of carbon steel, alloy steel parts and magnetic materials in protective atmosphere, and for bright anealing of small batch of scrolling strips
Model |
Rated Power (kw) |
Rated Voltage (V) |
Rated Temperature (centigrade) |
Phases |
Effective Size of Muffle Jar (Hearth) (mm) |
RJ-35-8Z |
35 |
380 |
850 |
3 |
Φ500*650 |
RJ-55-8Z |
55 |
380 |
850 |
3 |
Φ650*900 |
RJ-75-8Z |
75 |
380 |
850 |
3 |
Φ900*1200 |
RJ-45-8Z |
45 |
380 |
850 |
3 |
Φ600*900 |
RJ-65-8Z |
65 |
380 |
850 |
3 |
Φ600*1100 |
RJ-90-8Z |
90 |
380 |
850 |
3 |
Φ950*1250 |
RJ-120-8Z |
120 |
380 |
850 |
3 |
Φ950*1500 |
RJ-150-8Z |
150 |
380 |
850 |
3 |
Φ950*2400 |
Wire Annealing Process ________________________________________________
Characteristic :
1)Rational structure, uniform furnace temperature, small upper & lower temperature difference in working zone, especially applicable for heating and heat treatment for long axial workpiece.
2) Adopt energy-saving furnace lining, fast temperature rise, low empty furnace consumption, save more than 20% of energy compare with old product.
3)The control system can be equipped with normal control instrument or instrument with micro-processor program control according to actual need.
4)When needed during process, protective atmosphere can be fed into the furnace to realize little-oxidizing heating.
5)Each product is installed with safety interlock and over-temperature device to provide reliable and safe operation and use.

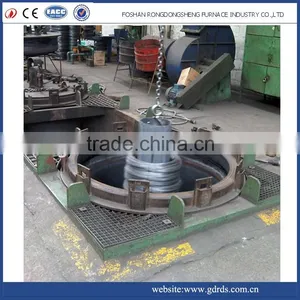

Products on Site ______________________________________________________
1.Why we choose RongDongSheng ?
We are professional manufacturer of electric resistance heat treatment furnace located in Foshan city of Guangdong province , Which has over 18 years experience produce furnace . Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
2.How do we know about the quality of our products after processed by your machine?
We could process your sample for your quality identify.
3.What is the difference between your factory and others?
Besides manufacturing the machines,we use our machine to provide heat treatment process to our local customers,and most of the others don't do that.Here we are not just the manufacturer but also the user,this makes us more professional and keeps us updating our technologies by our rich using experiences.
4.Have you exported machine to overseas market ?
Yes . We has exported machine to Thailand, Malaysia , Pakistan , India, Vietnam , Indonesia, Laos, Africa , South Africa , Iran , etc.
5.Is there any quality warranty and after service ?
The warranty period of mechanical portion of the equipment shall be a year after you received the equipment; And help buyer installation and commissioning the equipment , and free training operator.
6.If there are broken of your machine and spare parts , what should I do ?
In case of any failure occurred in the warranty period, damaged parts to be replaced shall be offered free of charge . we providelifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge.
