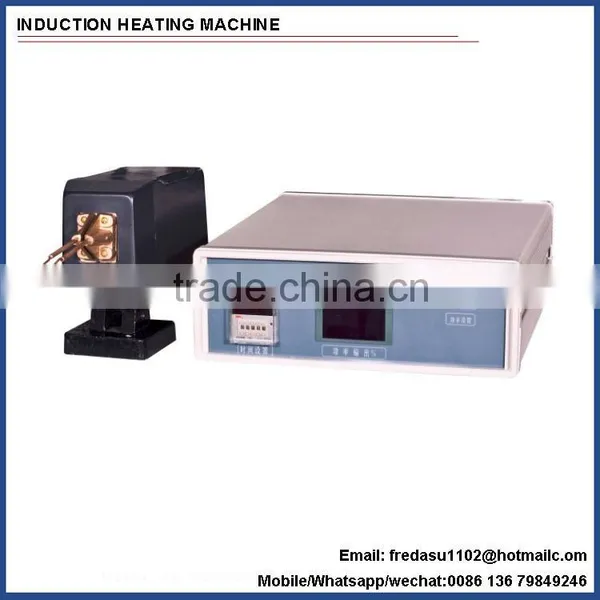

Super High frequency induction heating machine 3kw
1. The IGBT power module is adopted, with low power dissipation and efficient energy conservation itself.
2. Soft switching parallel resonance, and PFM double control circuit are adopted, which is simple and easy to operate.
3. Output transformer can not only match conveniently the load impedance, but also segregate the high voltage electricity network; it is safe to operate.
4. The circuit is simple and reliable , and is convenient to bear high-power capacity through the parallel connection.
5. It is designed for 100% full power, and can run around the clock.
6. The volume is incredibly small, which can save production space for client.
7. It is fit for the striking and forging, and smelting of all kinds of metals, especially fit for the diathermancy of small workpieces, which needs partial diathermancy.
Classifications of the Induction Heating Equipment:
1. Intermediate Frequency: 500HZ-20KHZ. It is fit for diathermancy and smelting ;
2. Ultrasonic Frequency:10KHZ-100KHZ. It can be applied widely , such as diathermancy, smelting and heat treatment;
3.High- Frequency:50KHZ-1MHZ.It is fit for heat treatment and heating of the fine workpieces.
4.Ultrahigh Frequency: above 500KHZ. It is fit for heating of the workpieces and heat treatment.
| Type | Input Voltage | Max.input current | Rated Power | Oscillation Frequency |
| SFC3A | AC220V | 15A | 3.2KW | 0.7-1.2MHZ |
| SFC5A | AC220V | 22A | 5KW | 0.7-1.2MHZ |
| SFC6A | AC220V | 8A | 6KW | 0.4-1.1MHZ |
Heating/Hot Forging:
Aims to fabricate the work pieces of certain temperature into other shapes through forging press with the help of punch press, forging machine or other equipments. for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.
Quenching/Hardening
I Metal quenching refers to one treatment method performed on metal workpieces that to chill the metal workpieces drastically (for example, dabble towards metal workpieces rapidly or put them into oil) so as to improve the metal hardness when they are heated to a certain temperature . Most of the workpieces are just needed for sacrificial quenching or partial quenching; it is especially fit for induction heating equipment. For example, these are wheel gears, chain wheels, leading axles, leading rails, jags, utility knives, rollers, cutting tools, machine tool accessories and moulds, and so forth.
Welding/Brazing:
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different material .For example, these are air-conditioner parts, copper fittings in a bathroom, furniture , decorative lighting, cutters, the bottom of a pan with mixed materials, electric kettles , and cemented carbide articles, such as wood cutting tools, abrasive wheels, scrapers, and saw bits, and so forth.
Smelting:
Mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to smelting of iron, steel, copper, aluminum, zinc as well as various precious metals;In general, it utilizes series of power frequency, intermediate frequency and ultrasonic frequency.
Annealing:
Annealing of various stainless steel products and other work pieces , such as stainless steel basin, stainless steel tube, cue ,brass lock, aluminum radiator and so on .
1. Product quality guarantee period for a yea after buy equipment.
2. All favorable price will to provide various spare parts depend on your order;
3. Provide long-term technical services and follow-up service.
