Home > Industrial Equipment & Components > Boiler & Furnace > Furnace > Intermediate Frequency Melting Equipment

Intermediate Frequency Melting Equipment

Name: Intermediate Frequency Melting Equipment
Brand: rongdongsheng
SKU: 134697717
Availability: InStock

Intermediate Frequency Melting Equipment thumbnail-1

Intermediate Frequency Melting Equipment photo-1

US$ 1,000 - 8,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Induction Furnace

Usage:

Melting Furnace

Contact Supplier Request Quote Chat Now

Foshan Rongdongsheng Furnace Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou/shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Induction Furnace

Usage Melting Furnace

Place of Origin Guangdong, China

Brand Name rongdongsheng

Voltage 380v/660v

Certification ISO&CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

1. Zero·voltage scanning soft start or stop at any time under any state without impact on power supply;

2. Speedy melting, low production cost , low pollution, conforming to environmental protection requirement;

3. Melting directly from low temperature, available for fully emptying of solution , easy change of category of melting material;

4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;

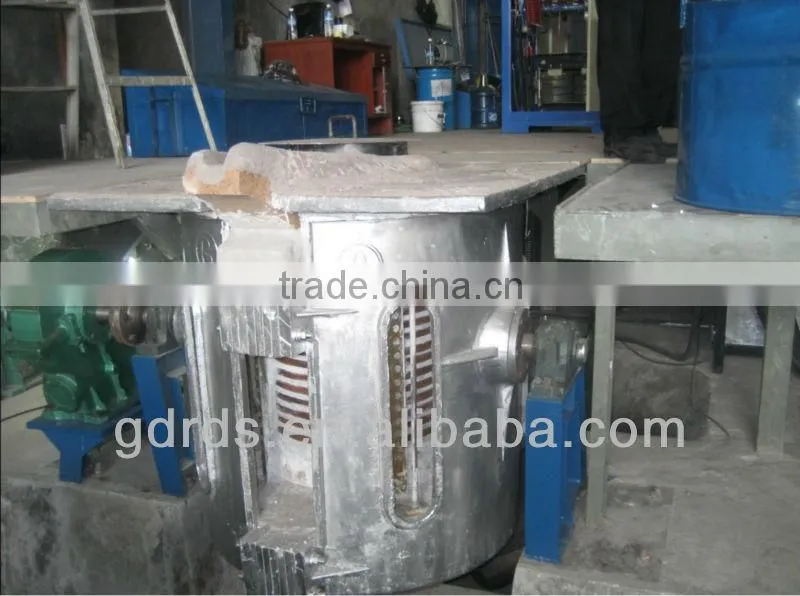

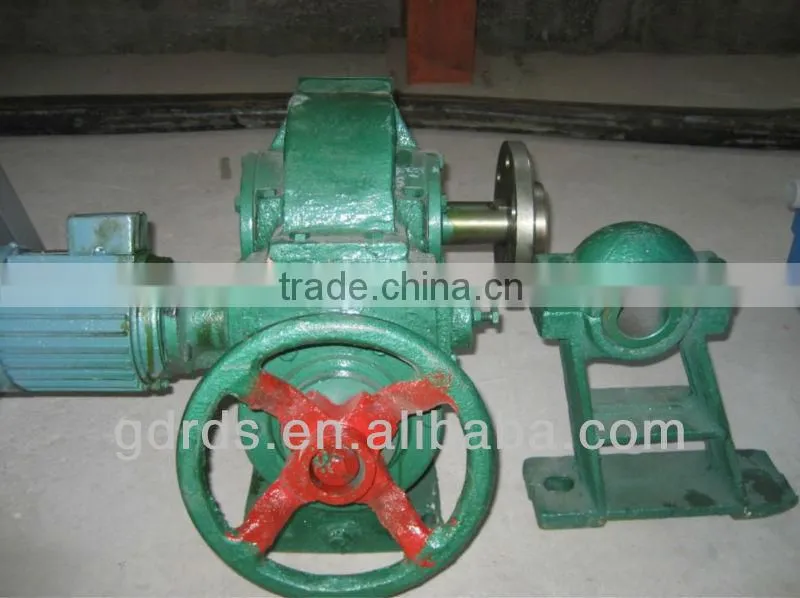

5. Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;

6. Contravariant automatic regulation circuit available for matching of load impendence automatically, maintaining good operation without regulation or compensation of capacitance; power supply with fault diagnosis facilitating service.

Main Models And Technical Parameters
Equipment Type (Furnace capacity)	Power input(Three-phase Four- wire 50/60Hz)			Power Output				Melting Time (Minutes)	Power consumption per ton of material (KW)
Equipment Type (Furnace capacity)	Rating power (KW)	Input Voltage (V)	Input Current (A)	DC Current (A)	DC Voltage (V)	IF Voltage (V)	IF frequency (KHZ)	Melting Time (Minutes)	Steel (KW)	Iron (KW)	Copper (KW)	Brass (KW)	Aluminum (KW)
KGPS--0.05T	50	380	80	100	500	750	1-2.5	20-60	850	800	450	420	470
KGPS--0.1T	100	380	160	200	500	750	1-2.5	20-60	800	750	450	400	460
KGPS--0.2T	160	380	256	320	500	750	1-2.5	30-70	750	700	440	390	450
KGPS--0.25T	160	380	256	320	500	750	1-2.5	30-70	750	700	440	380	440
KGPS--0.3T	200	380	320	400	500	750	1-2.5	30-70	700	650	430	380	430
KGPS--0.5T	250	380	400	500	500	750	1-2.5	30-70	650	600	430	370	420
KGPS--0.75T	400	380	640	800	500	750	1-2.5	40-70	630	580	400	350	410
KGPS--1T	600	380	960	1200	500	750	0.7-1	40-70	600	560	390	340	400
KGPS--1.5T	1000	380	1600	2000	500	750	0.7-1	50-70	580	530	380	330	380
KGPS--1.5T	1000	660	912	1140	880	1300	0.7-1	50-70	580	530	380	330	380
KGPS--2T	1250	380	2000	2500	500	750	0.5-1	50-70	560	520	370	320	360
KGPS--2T	1250	660	1140	1430	880	1300	0.5-1	50-70	560	520	370	320	360
KGPS--3T	1500	380	2400	3000	500	750	0.5-1	50-80	530	510	350	310	350
KGPS--3T	1500	660	1370	1710	880	1300	0.5-1	50-80	530	510	350	310	350
KGPS--5T	2500	380	4000	3200	780	1170	0.3-1	60-90	510	490	340	290	330
KGPS--5T	2500	660	2272	2840	880	1300	0.3-1	60-90	510	490	340	290	330
KGPS--10T	5000	660	4560	5700	880	1300	0.3-1	70-100	500	450	320	260	320
Furnace temperature:1.Steel 1650°C 2.Iron 1450°C 3.Copper 1050 °C 4.Brass 900 °C 5. Aluminum 700 °C
