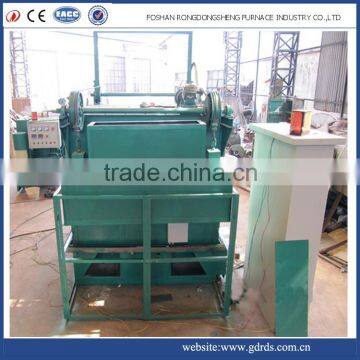

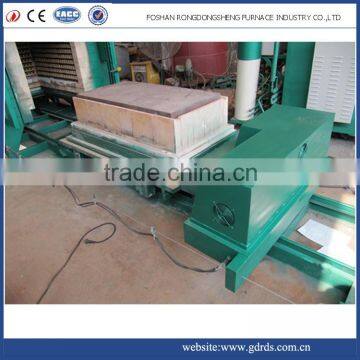

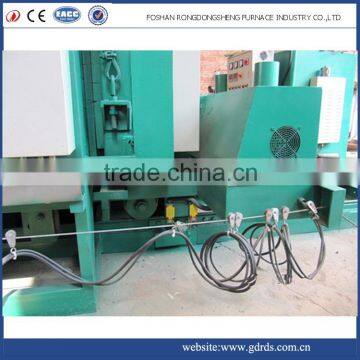

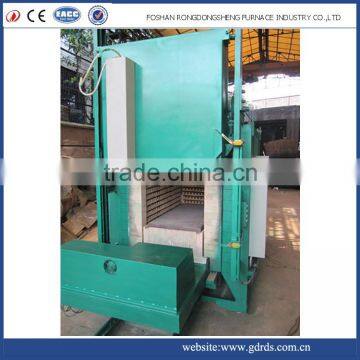

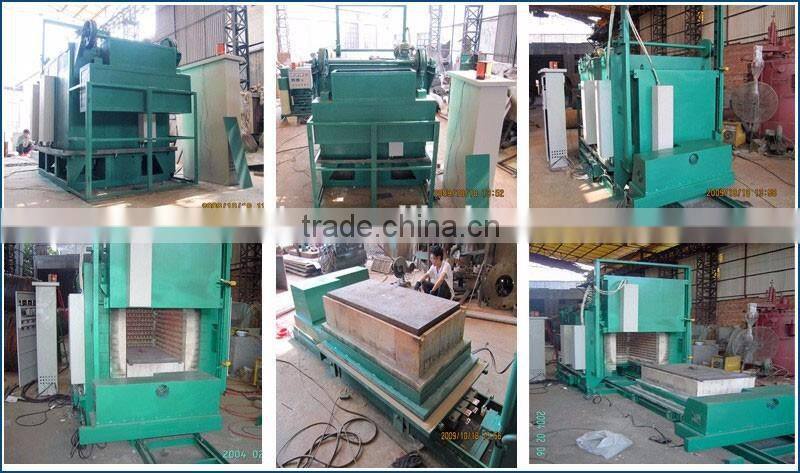

electric bogie hearth used heath treatment
quench hardening furnace
1.Application

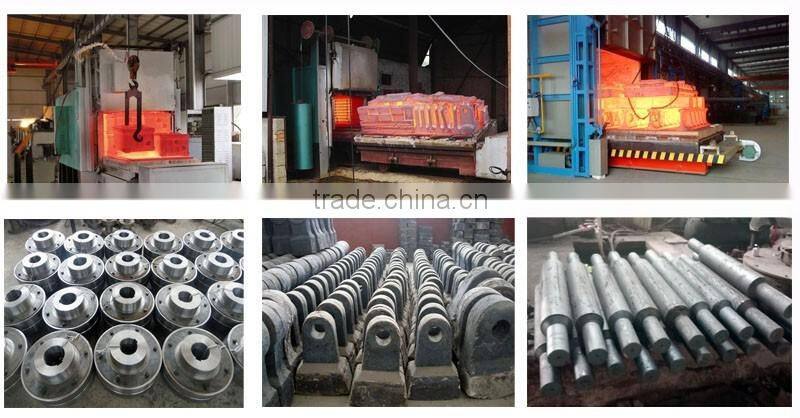

The furnace is cycle operation type resistance furnace, is mainly used for various kinds of parts quenching, tempering ,annealing, distressing ,preheating and other heat treatment.
2.Construction
Consists of furnace body , furnace door and open mechanism, moving car, clectrical control system and other parts.
3.Feature:
1)car-botton resistance furnaces is national standard, energy-saving and periodic resistance furnace, with ultra energy-efficient structure.
2)It uses composite fiber for heat preservation, and ultra-light and high-strength refractory materials.
It can save energy from 60% to 70% with no pollution .
3)The furnace mouth has a brick for preventing workpiece impact
4)trolley uses double-layer sealing, with integrated rail connection and easy mounting and operation.
Model |
Rated Power |
Voltage |
Rated Temprature |
Max. Loading |
Effective working Size |
Weight |
RT2-65-10 |
65 |
380 |
1000 |
1000 |
1100*550*450 |
3500 |
RT2-105-10 |
105 |
380 |
1000 |
2500 |
1500*800*600 |
5100 |
RT2-120-10 |
120 |
380 |
1000 |
3500 |
2100*850*750 |
6200 |
RT2-180-10 |
180 |
380 |
1000 |
5000 |
2100*1050*750 |
8000 |
RT2-250-10 |
250 |
380 |
1000 |
9000 |
2400*1500*700 |
9500 |
RT2-320-10 |
320 |
380 |
1000 |
12000 |
3000*1350*950 |
12000 |
RT2-480-10 |
480 |
380 |
1000 |
15000 |
4500*2600*950 |
22000 |
RT2-900-10 |
900 |
380 |
1000 |
28000 |
6000*2500*1200 |
34000 |
1,Foshan RongDongsheng Furnace Industry Co.,Ltd. was founded in 1997 in Foshan , Guang dong Province of China , Covering more than 10000 M2.
2,Our company has passed ISO9001 international management system certification and European CE certificate.
3. We are professional manufacturer of electric resistance heat treatment furnace
4. 18 years experience produce furnace . Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
1.Why we choose RongDongSheng ?
We are professional manufacturer of electric resistance heat treatment furnace located in Foshan city of Guangdong province , Which has over 18 years experience produce furnace . Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
2.How we can konw the quality of the products?
3.What is your difference from other company?
We also provide heat treatment service to local customers with our own machines,so we are not only the manufacturer but also the user.Comparing to other companies ,we are more professional and devot ourselves to improving our techlonogy and experience,so we can advance than our counterparts.
4.Have you exported machine to overseas market ?
Yes . We has exported machine to Thailand, Malaysia , Pakistan , India, Vietnam , Indonesia, Laos, Africa , South Africa , Iran , etc.
5.Is there any quality warranty and after service ?
The warranty period of mechanical portion of the equipment shall be a year after you received the equipment; And help buyer installation and commissioning the equipment , and free training operator.
6.If there are broken of your machine and spare parts , what should I do ?
In case of any failure occurred in the warranty period, damaged parts to be replaced shall be offered free of charge . we provide lifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge
