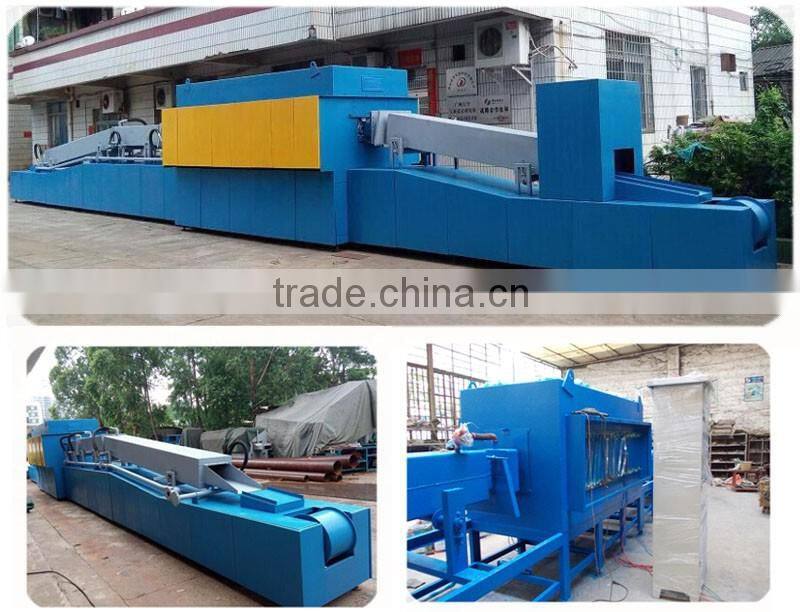

controlled atmosphere metal heat treatment electric brazing furnace for sale
Overview :
Applicable for brazing of stainless steel, brass, red copper and ceramic materials of auto pipe fittings, auto parts, stainless steel electric hot tray, machinery parts and for other bright heat treatments.
This device is mainly composed of transmission system, heating system, cooling system, control system, and ammonia decomposition gas supply system.

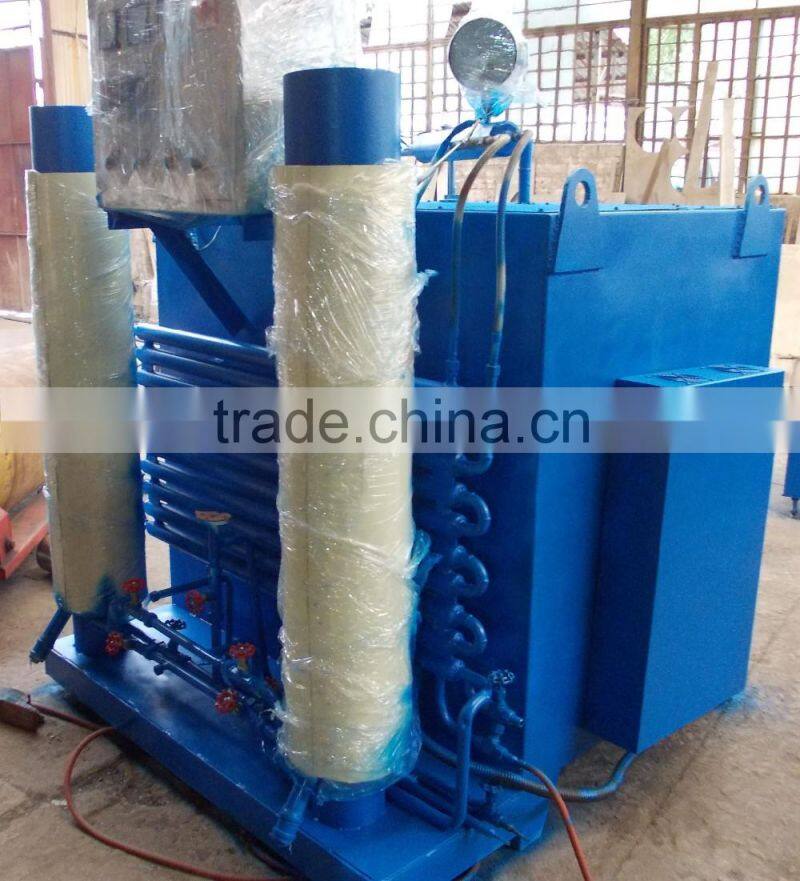

Ammonia Decompostion Gas Supply System: (NH3=75%H2+25%N2)
The gas mixture (hydrogen 75% and Nitrogen 25%) decomposed from liquid ammonia gets into the hearth and reaches gas protection effect; the gas direction regulating device ensure stable atmosphere. Having treated by this kind of furnace, product surface will become bright and won’t be oxidized. All treated products will reach excellent consistency.

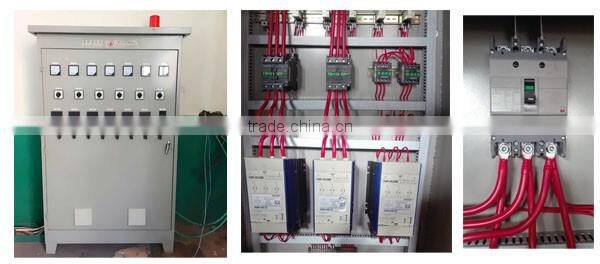

Electric Control System
All imortant componets are use international famous brand , such as : Schneider , Siemens, Omron, Mitsubishi and so on .
Advantage of high temperature brazing furnace:
1. This furnace is made of Sweden nickel alloy plates which contain rare earth elements, have strong structural strength and small heat deformation and improve its service life.
2. The cooling section use the technology of separating cooling muffle from cooling jacket welding and welding line, which ensures that brazed work piece become bright and won’t be oxidized.
3. Heat exchanger is equipped in the cooling section, which greatly increases the cooling speed of work pieces.
4. Special design enables each heating zone to realize step less voltage regulation and ensure stable temperature for the heating furnace. The stability of furnace temperature can reach ±1celsius degree.
5. Unique anti-explosion design uses various warning and circuit interlocking automatic protective devices to ensure the safe operation of the furnace.
Apply in : automobile, home appliances, electronics, hardware, machinery and other industries

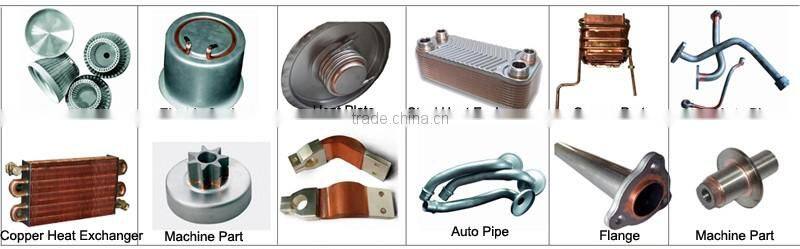

Such as : Auto pipe fittings, auto parts, stainless steel electric hot tray, machinery parts, air-conditioning refrigeration fittings, phosphoretic steel, soft connection of copper-based silver and lighting products and so on .
| Model | Rated Power (kw) | Number of Heating area | Hearth Size | Effective Cooling Length (mm) |
Output (kg/h) |
Ammonia Decomposition Furnace Power (kw) |
||
| L (mm) |
W (mm) |
H (mm) |
||||||
| Rc 5-7 |
15 | 1 | 1300 | 70 | 40 | 2500 | 15 | 5.5 |
| Rc 6-15 |
20 | 3 | 1600 | 155 | 40 | 3500 | 22 | 7 |
| Rc 6-20 |
21 | 3 | 1600 | 200 | 50 | 3500 | 28 | 10 |
| Rc 8-15 |
24 | 3 | 2000 | 155 | 50 | 4800 | 35 | 7 |
| Rc 8-20 |
30 | 3 | 2000 | 200 | 60 | 4800 | 40 | 10 |
| Rc 12-15 |
45 | 3 | 2600 | 155 | 50 | 6800 | 50 | 7 |
| Rc 12-20 |
45 | 3 | 2600 | 200 | 60 | 6900 | 52 | 10 |
| Rc 16-20 |
60 | 4 | 3500 | 200 | 60 | 9000 | 80 | 10 |
| Rc 16-25 |
70 | 4 | 3500 | 250 | 80 | 9000 | 100 | 10 |
| Rc 16-30 |
85 | 4 | 3500 | 300 | 80 | 9000 | 120 | 10 |
| Rc 20-35 |
120 | 5 | 4500 | 350 | 120 | 11800 | 200 | 15 |
1,Foshan RongDongsheng Furnace Industry Co.,Ltd. was founded in 1997 in Foshan , Guang dong Province of China , Covering more than 10000 M2.
2,Our company has passed ISO9001 international management system certification and European CE certificate.
3. We are professional manufacturer of electric resistance heat treatment furnace
4. 15 years experience produce furnace . Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
1.Why we choose RongDongSheng ?
We are professional manufacturer of electric resistance heat treatment furnace located in Foshan city of Guangdong province , Which has over 18 years experience produce furnace . Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
2.Have you exported machine to overseas market ?
Yes . We has exported machine to Thailand, Malaysia , Pakistan , India, Vietnam , Indonesia, Laos, Africa , South Africa , Iran , etc.
3.Is there any quality warranty and after service ?
The warranty period of mechanical portion of the equipment shall be a year after you received the equipment; And help buyer installation and commissioning the equipment , and free training operator.
4.If there are broken of your machine and spare parts , what should I do ?
In case of any failure occurred in the warranty period, damaged parts to be replaced shall be offered free of charge . we providelifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge.
