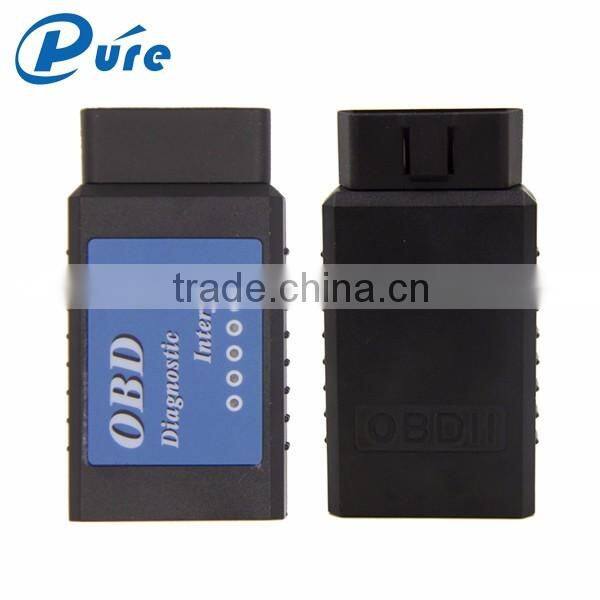

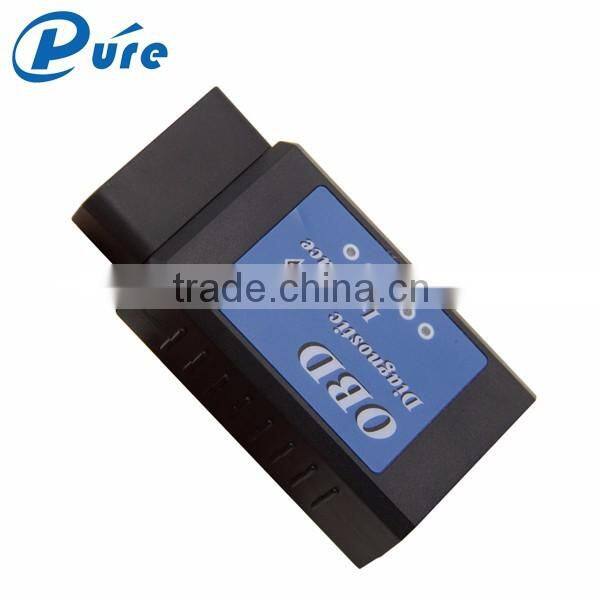

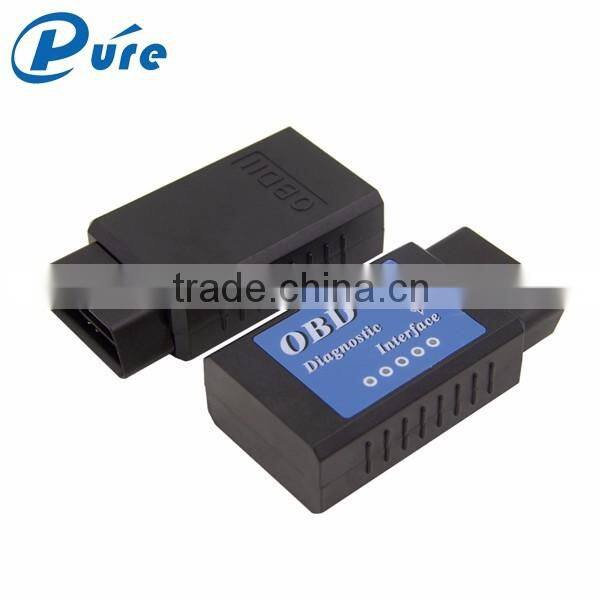

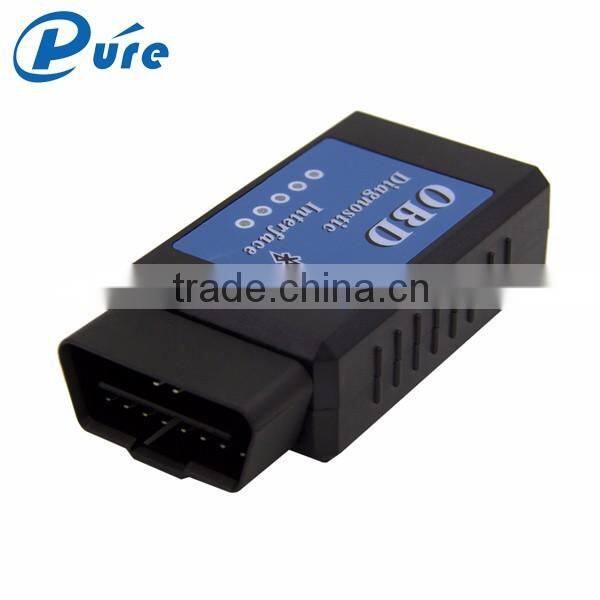

2016 ELM327 Bluetooth Car Scan Tool,ELM327 Bluetooth ODB2 Diagnostic Interface Scanner

Latest V2.1 ELM327 Bluetooth OBD2 Scanner for Multi-brands CAN-BUS Supports All OBD2 Protocol works on Android Windows Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Latest V2.1 ELM327 Bluetooth OBD2 Scanner for Multi-brands CAN-BUS Supports All OBD2 Protocol

Top 6 Reasons To Get ELM327 Bluetooth

1. Software Version : V2.1

2. Hardware Version : V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (Bluetooth)

5. Software included for Palm, PDA, Windows PC, Windows Smartphone

6. Supports ISO 9141, KWP2000, CAN bus

Supported protocols:

0.Automatic

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

*default settings (user adjustable)

ELM327 Bluetooth Functions:

• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

• Clear trouble codes and turn off the MIL ("Check Engine" light)

• Display current sensor data, including:

• Engine RPM

• Calculated Load Value

• Coolant Temperature

• Fuel System Status

• Vehicle Speed

• Short Term Fuel Trim

• Long Term Fuel Trim

• Intake Manifold Pressure

• Timing Advance

• Intake Air Temperature

• Air Flow Rate

• Absolute Throttle Position

• Oxygen sensor voltages/associated short term fuel trims

• Fuel System status

• Fuel Pressure

• Many others

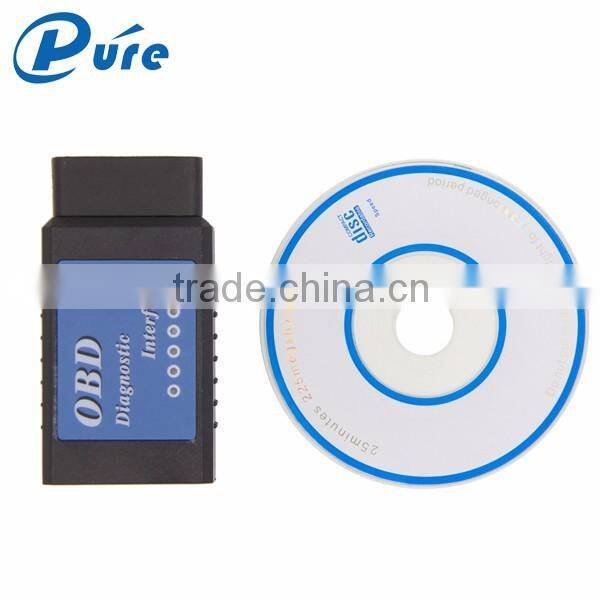

Package list:

1pc x ELM327 Bluetooth

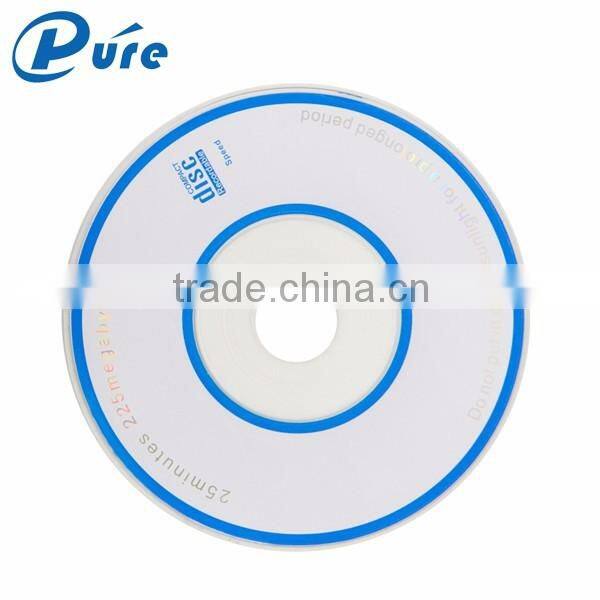

1pc x CD Drive

Specification:
