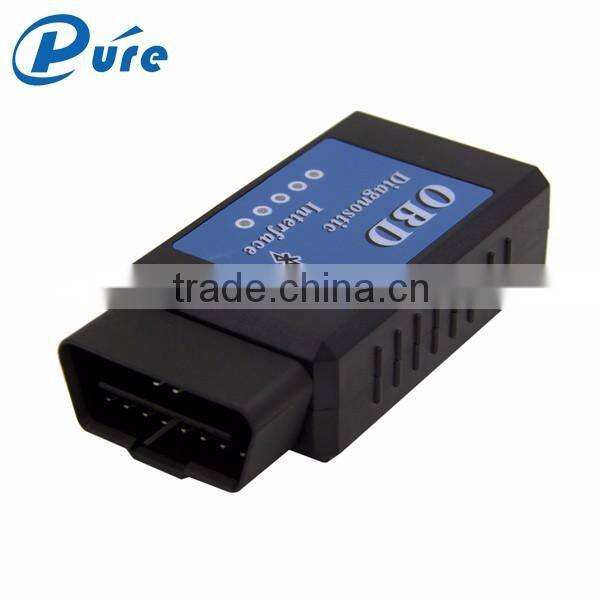

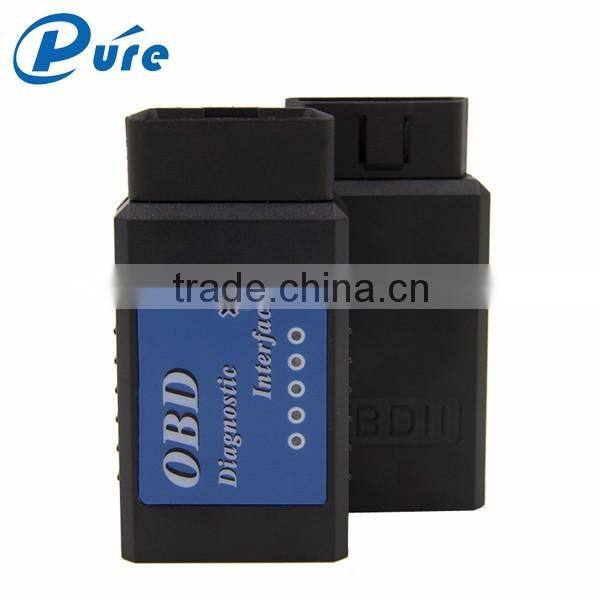

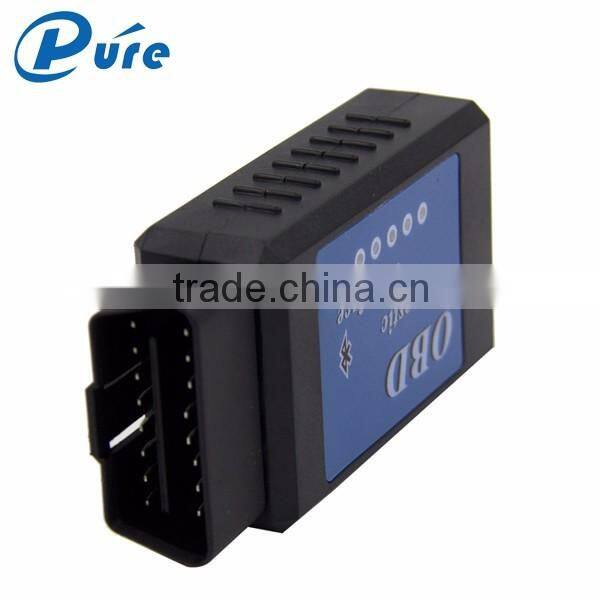

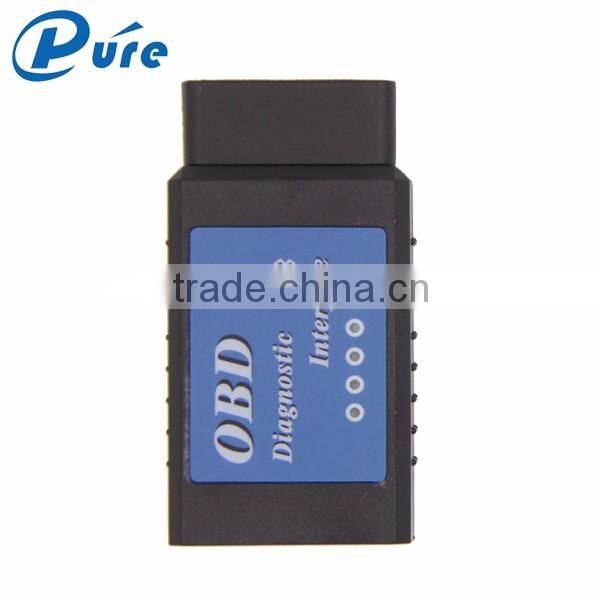

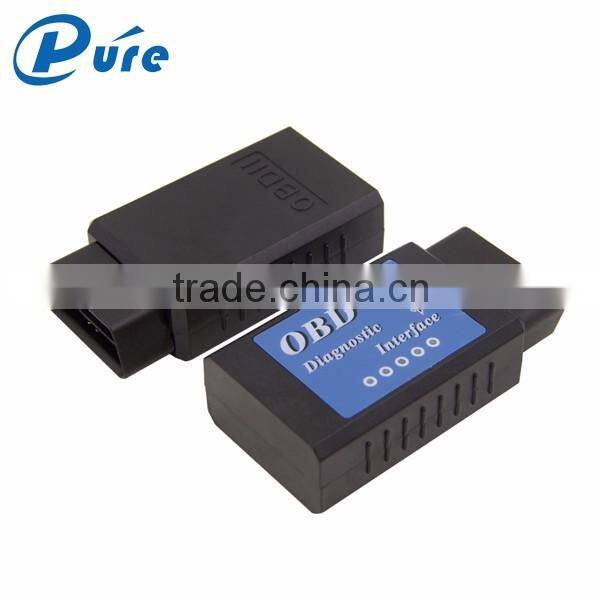

Advanced ELM327 OBDII Car Diagnostic Bluetooth Scanner Works With All OBD-2 Compliant Vehicles

The Elm327 OBDII Bluetooth Car Diagnostic Interface Scanner is used to read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. The can test a lot of trouble of the car and display the current sensor data, including: engine RPM, calculated load value, coolant temperature, fuel system status, vehicle speed, short / long term fuel trim, intake manifold pressure, timing advance, intake air temperature, air flow rate, absolute throttle position, oxygen sensor voltages / associated short term fuel trims, fuel pressure, Many others... The Bluetooth diagnostic is very convenient to use.

- Works with all OBD-2 compliant vehicles

- Bluetooth Wireless connection

- Bluetooth range: 30m

- LED indication

- Voltage: 12V (short circuit and overvoltage protection)

- Comes with CD disk

Newly developed bluetooth ELM327 V1.5,support all OBD-II protocols as follows:

* Support OBD-II protocols as follows:

1.ISO9141-2(5 baud init,10.4Kbaud)

2.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

3.ISO14230-4 KWP(fast init,10.4 Kbaud)

4.ISO15765-4 CAN(11bit ID,500 Kbaud)

5.ISO15765-4 CAN(29bit ID,500 Kbaud)

6.ISO15765-4 CAN(11bit ID,250 Kbaud)

7.ISO15765-4 CAN(29bit ID,250 Kbaud)* Color: Back + Orange + Blue

* Item Size: 8.2 * 4.6 * 2.5cm

* Package Size: 12 * 16.3 * 2.5cm

* Item Weight: 58g

* Package Weight: 75g

Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data, including:

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13. Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17. Fuel System status

18.Fuel Pressure

Compatible vehicles:

Benz 2001/02/03 W203 C200K (ISO)

B-M-W X5 2002 (ISO) Chevrolet Aveo (ISO)

Citroen C3 2004 (ISO) Daihatsu YRV 2005 (ISO)

Daihatsu YRV Turbo 2006 (ISO)

Fiat Tipo 2002 (ISO)

Ford New Focus 2006(CAN)

Ho-n-da Accord 2006 JDM (ISO)

Ho-n-da Accord Euro R 2004 JDM (ISO)

Ho-n-da City GD8 (ISO)

Ho-n-da Civic ES 1.6A (ISO)

Ho-n-da Integra Type R DC5 JDM (ISO)

Ho-n-da Jazz 1.4M (ISO)

Hyundai Accent 2004 (ISO)

Hyundai Getz 1.3A 2004 (ISO)

Hyundai Getz 1.6M 2004 (ISO)

Hyundai Matrix 2004 (ISO)

Hyundai Santa Fe 2.4A (ISO)

Hyundai Sonata GLS (ISO)

Hyundai Sonata 2005 (ISO)

Hyundai Tuscani FX (ISO)

Kia Carens 2005 (ISO)

Kia Magentis 2005 (ISO)

Kia Rio LS (ISO)

Kia Sorento SUV 2005 (ISO)

Lexus es300 Mazda 2 (CAN)

Mazda 5 (CAN)

Mazda 6 (CAN)

Mazda Premacy 2001 (ISO)

Mazda RX8 (CAN)

Mitsubishi Colt 2003 (ISO)

Mitsubishi Colt Plus 2005 (ISO)

Mitsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000;RS/GS----1994-1996 GS all can do;Turbo Car for the year 1996-2000,only have speed and TPS,can clear the DTCS)

Mitsubishi Lancer Evolution IX 2006 (ISO)

Mitsubishi Pajero 3.5 V6 2006 (ISO)

Nissan Sunny B14 (ISO)

Nissan Sunny VIP FB15 (ISO)

Nissan X-Trail 2.0L 2004 (ISO)

Nissan X-Trail 2.5L 2004 (ISO)

Peugeot 206 2001 –Only can show RPM

Peugeot 206 (ISO)

Peugeot 307 (ISO)

Peugeot 407 (ISO)

Renault Megane II 2005 (ISO)

Renault Kangoo 2006 (ISO)

Subaru Impreza 1.6TS 2002 (ISO)

Subaru Impreza WRX 2005 (ISO)

Toyota Camry 2.0A 2004 (ISO)

Toyota Camry 2.4A 2005 (ISO)

Toyota Corolla Altis 1.6A 2005 (ISO)

Toyota Corolla GLXi G8 1999 (ISO)

Toyota Corolla G9 2002 (ISO)

Toyota Vios 2004 (ISO)

Not available veichles:

Mazda 323 Protege 2003 (OBD-I)

Mitsubishi Lancer 1.6M 2006

Nissan Sunny (N16)

Nissan Cefiro (Teana) 2005

Nissan sentra 1.8 2000/2005

Nissan Cefiro (Teana) 2005

Proton Perdana V6

Subaru Legacy GT 2005

Toyota camry 2002

Toyota Wish JDM (Missing Pin 5 in DLC)

Toyota IST JDM (Missing Pin 5 in DLC)

Toyota altis 1.8 2004

Peugeot 206 2000

Suzuki Jimny 1.3 2000

All Diesel engine

Package list:

1pc x ELM327 unit(bluetooth version)

1pc x CD drive
