LOra Spreading High Sensitivity XL1278-D01 SX1278 Wireless Transceiver Module 433MHz
US$ 7.99 - 8.59
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SX1278 Wireless Module
Model Number:
SX1278 Wireless Module
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
433Mhz RF Transmitter and Receiver Link Kit for Arduino/ARM/MCU WLUS$ 0.43 - 0.59MOQ: 1 Piece -
1100 Meter Long-Distance NRF24L01+PA+LNA NRF24L01P Wireless Transceiver Communication Module (with Antena) DC 3.3VUS$ 2.75 - 3.29MOQ: 1 Piece
-
Nano V3.0 3.0 Controller Compatible With Nano CH340 USB Driver NO CABLE for Arduino NANO V3.0 3d PrinterUS$ 1.7 - 2MOQ: 1 Piece
-
Nano 3.0 Controller Compatible for Arduino Nano CH340 USB Driver With CABLE NANO V3.0US$ 2 - 2.3MOQ: 1 Piece
-
DS3231 Real Time Clock Module for Arduino 3.3V/5V With Battery For Raspberry PiUS$ 1.05 - 1.2MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
SX1278 Wireless Module
Model Number
SX1278 Wireless Module
Product Features
1. FSK/GFKS technology, LoRa (remote) spread spectrum technology
2. Half-duplex communication
3. Super Immunity (channel rejection ratio: 56db)
4. High receiver sensitivity -139dbm.
5. ISM multi-band, no need to apply for frequencies free of charge.
6. Optional multi-frequency, multi-transfer rate. Can be used in FDMA and FM technologies.
7. Intelligent reset, low voltage monitoring, timing wake, low-power mode, sleep mode
8. Low power consumption accept current: 10-12mA
9. 256 FIFO TX/RX
10. RSSI channel detection
11. Transfer Mode: FIFO/Direct mode (recommended FIFO packet mode)
12. Configuration: AFC/Air wake-up/low power/Carrier Sense/FEC error correction/AEC encryption
13. Ultra-long-distance transmission farthest open up 5KM.
Applications
1.Remote control and remote data acquisition system
2.Wireless meter reading (water, electricity, gas)
3.Wireless ordering machines, oil, mining, construction sites, factories and other original 485/232 interface system
4.Industrial data acquisition, transmission, intelligent control systems
5.Wireless alarm system
6.Smart Furniture system
7.Baby Monitor System/Hospital Paging System
8.Small wireless data transmission system

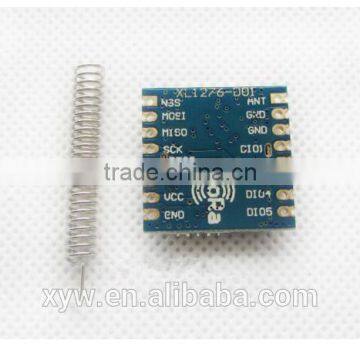

Pin Definitions

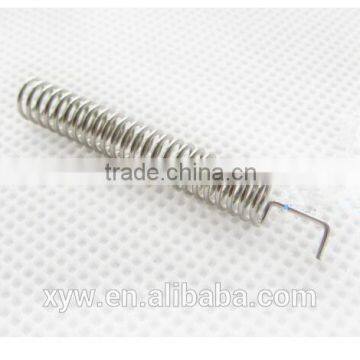

1.ANT: antenna interface
2.GND: signal ground
3.DIO1/DIO2/DIO3/DIO4/DIO5: digital I/O, can be customized
4.VCC: power supply
5.DIOO: digital I/O, can be customized
6.REST: reset
7.SCK: SPI clock input
8.MISO: SPI data output
9.MOSI: SPI data input
10.NSS: SPI chip output
Performance parameters
