DC-DC Adjustable Step-Up and Step-Down Power Supply Module Boost and Buck Voltage Converter Super 2596& 2577
US$ 3.45 - 3.99
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Super 2596& 2577
Model Number:
Super 2596& 2577
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC-DC Power Module 5V/12V 5W Dual Full Isolation AC-DC Switch Power Supply Module Step Down Buck ConverterUS$ 2.95 - 4.39MOQ: 1 Piece -
100W DC-DC 3~35V to 3.5~35V Booster Step up Module Converter Regulated Power Supply+ LED Digital VoltmeterUS$ 3.89 - 4.2MOQ: 1 Piece
-
12V LED Display DC-DC Power Supply 24V to 12V Car/Vehicle Step Down Buck Converter Voltage Regulator WaterproofUS$ 5.29 - 6.49MOQ: 1 Piece
-
Car/Vehicle Power Supply 24V to 5V/6A 12V to 5V/6A Power Converter Voltage Regulator Waterproof LED Display DC-DCUS$ 3.99 - 4.69MOQ: 1 Piece
-
Boost Converter Step-Up Module Power Supply 600W DC-DC 12V-60V to 12V-80VUS$ 11.19 - 12.69MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Super 2596& 2577
Model Number
Super 2596& 2577

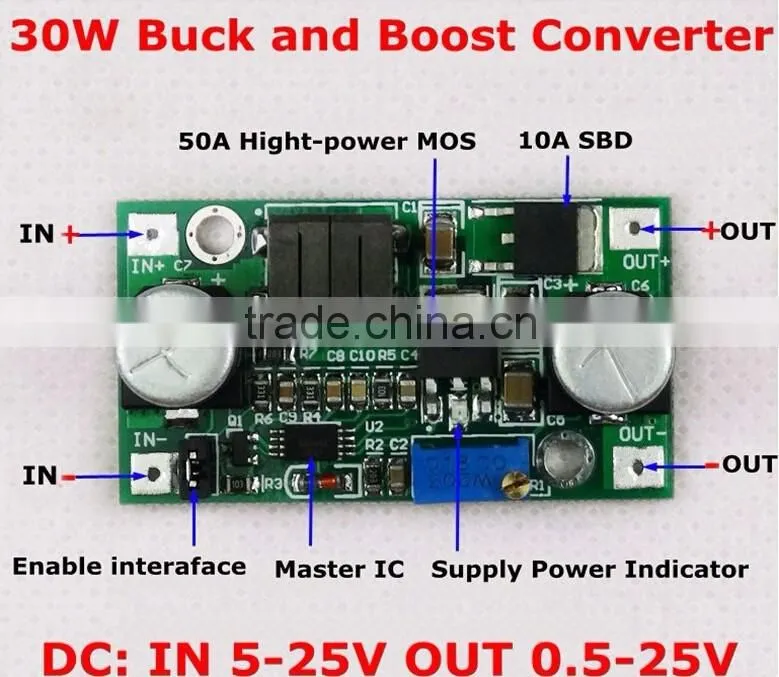

Features

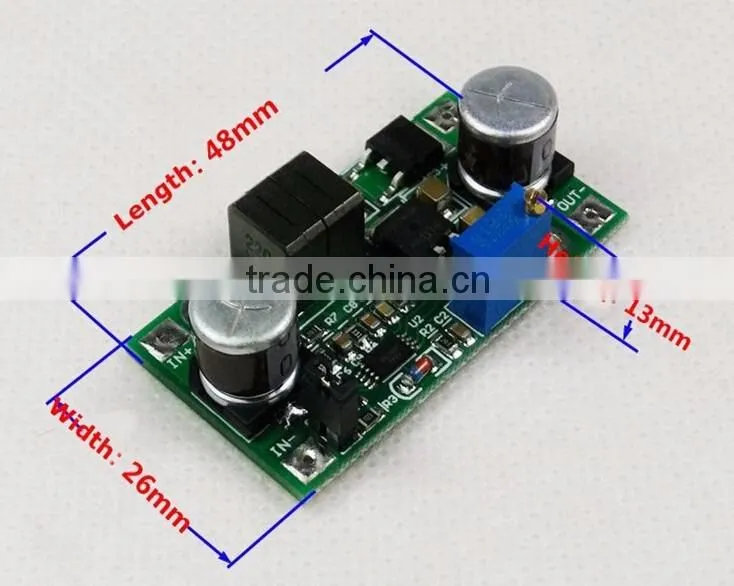

- Size: 48x26x13 (length*width*height)(mm)
- Color: As the picture show
- Weight: 12g
- Input voltage: 5-25V
- LED Indicator : YES
- Enable Interface: Yes
- Output voltage: 0.5-25V(Adjustable)
- IN/OUT Power : 30W(MAX)
- Input current: Rated current MAX 2A
- Output current: Rated current MAX 2A
- In+: Input positive
- In-: Input negative
- Out+: Output positive
- Out-: Output negative
Note:
- This module don't have reverse protection, if you connect reversely, it will be burned. Please pay more attention.
- When the output is in shot, the output will be automatically stopped. So you put out the enable interface cap and then insert it. The module will become normal.
- When the module starts or the load is off, it will appeared easily that the temperate output voltage will be more than the preset voltage. So the module is not suitable for the device which is sensitive to voltage.
The Common Voltage Data Test
Boost Efficiency:
5.0V to 12V/1A efficiency 86.3%
7.4V to 12V/1A efficiency 88.7%
12V to 18V/1A efficiency 88.3%
18V to 24V/1A efficiency 87.3%
Buck Efficiency:
5V to 3.3V/3A efficiency 74.2%
12V to 5V/3A efficiency 83.8%
24V to 12V/2A efficiency 86.4%
24V to 18V/2A efficiency 87.6%
Boost and Buck Efficiency:
12V to 12V/3A efficiency 87.4% 5V to 5V/2A efficiency 81.4%
