IC 2262/2272 433MHZ 4 Channel Wireless Remote Control Kits 4 Key For Arduino

IC 2262/2272 433MHZ 4 Channel Wireless Remote Control Kits 4 Key For Arduino thumbnail-1
IC 2262/2272 433MHZ 4 Channel Wireless Remote Control Kits 4 Key For Arduino thumbnail-2
IC 2262/2272 433MHZ 4 Channel Wireless Remote Control Kits 4 Key For Arduino photo-1
IC 2262/2272 433MHZ 4 Channel Wireless Remote Control Kits 4 Key For Arduino photo-2
US$ 2 - 2.3 MOQ: 1 Piece
Key Specifications
Get Latest Price
D/C:
New
Package:
KIT
Model Number:
2262/2272 433MHZ 4 Channel Wireless Remote Control Kits
Contact Supplier Request Quote Chat Now
Shenzhen Xiangyangwei Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
D/C New
Package KIT
Model Number 2262/2272 433MHZ 4 Channel Wireless Remote Control Kits
Type Other, KIT, 2262/2272 four-way wireless remote control kit M4
Brand Name N/A
Place of Origin Guangdong, China
Product Description

Remote control

1.Operating voltage: DC12V (27A/12V battery x1)

2.Operating Current: 10mA @ 12V

3.Radiated power: 10mw @ 12V

4.Modulation mode: ASK (Amplitude Modulation)

5.Transmitting frequency: 433MHZ

6.Transmission distance :50-100M (Open field, the receiver sensitivity of -100dbm)

7.Encoder types: fixed code

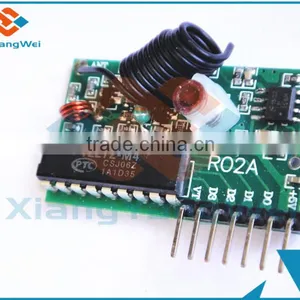

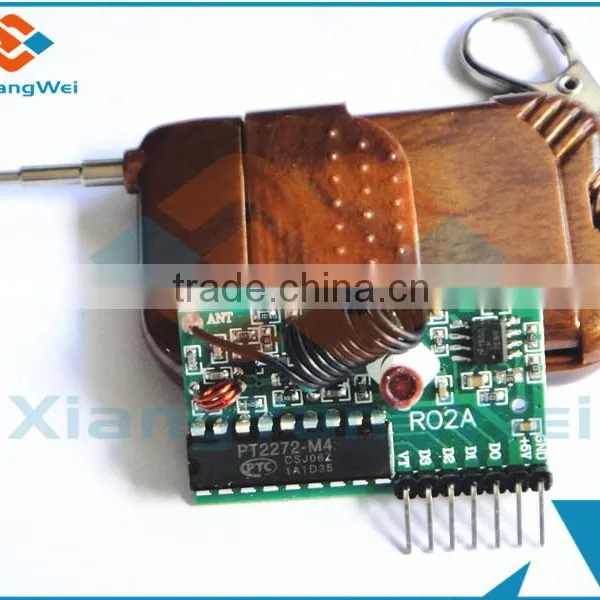

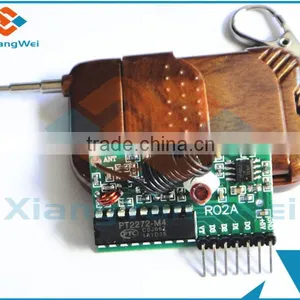

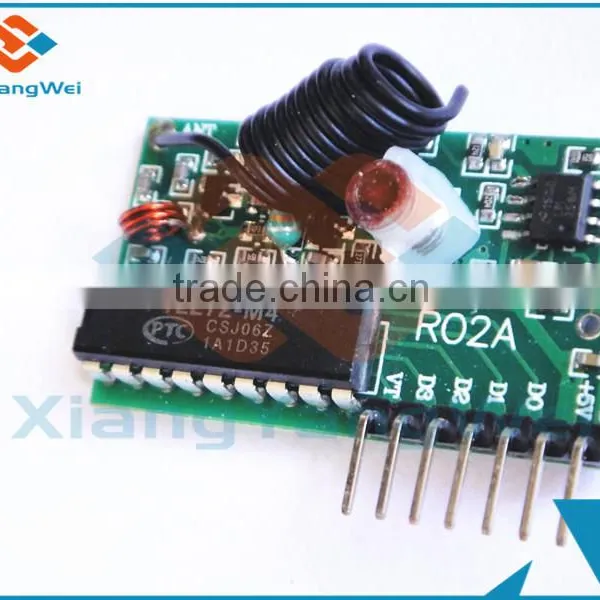

With decoding receiver board

1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.

2.Size: 6.6*22*41mm

There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.
