Hydraulic Lift High Shear Emulsifier

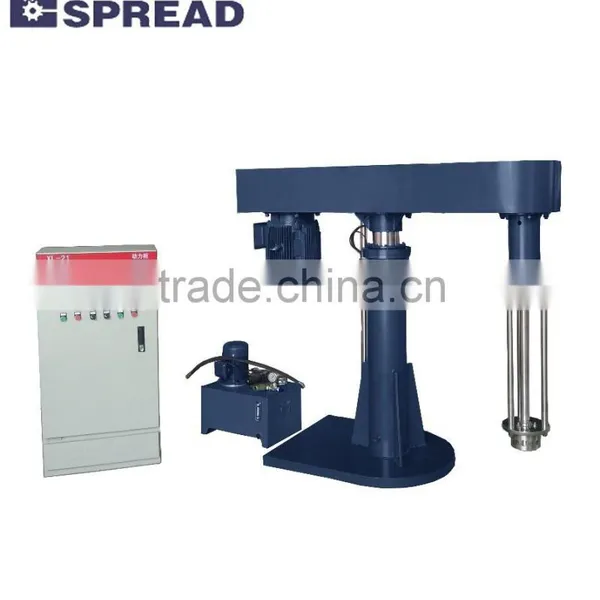

Hydraulic Lift High Shear Emulsifier photo-1

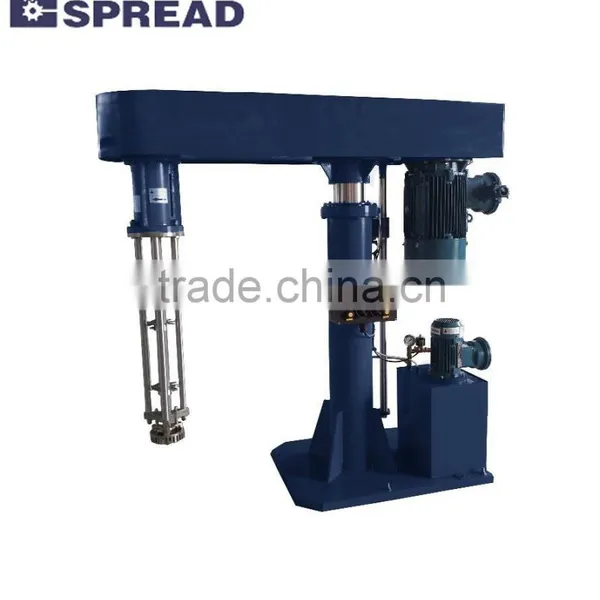

Hydraulic Lift High Shear Emulsifier photo-2

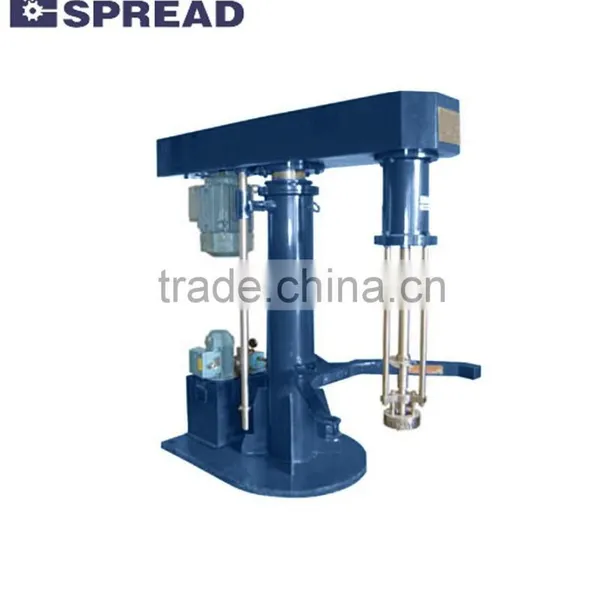

Hydraulic Lift High Shear Emulsifier photo-3

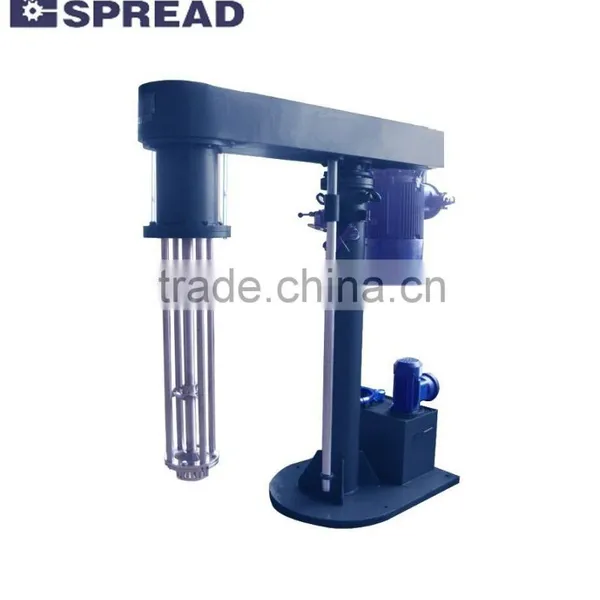

Hydraulic Lift High Shear Emulsifier photo-4
US$ 500 - 550 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Homogenizer
Product Type:
Paint
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Mixer Type Homogenizer
Product Type Paint
Application Liquid
Additional Capabilities Milling
Place of Origin Shanghai, China
Brand Name ESPREAD
Model Number ESSY
Voltage 220V/380V/440V/460V Customized
Power(W) 1.1-110KW
Certification CE, ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Description



     ESSY batch high shear mixer offers a full range of mixer for production scale. The design exceeds the high quality standards necessary to achieve optimal process results and withstand the rigors of difficult processes that require high shear mixing. The mixer is amounted on a mobile hydraulic or fixed stand.



Feature:


Capacity
100 - 20,000 litres.
Workheads
Special workheads available for all models.

Materials of Construction
Product contact in SS304 or 316L stainless steel. Motor Specification
1-110 kW, TEFC, flame proof, ATEX approved and stainless steel motors available as standard.

Mounting
All mixers can be supplied with either mobile or fixed hydraulic stand

Sealing
Where sealing is required, lip seals and single or double mechanical shaft seals can be supplied

Speed
Speed is adjustable with frequency inverter.



Main Technical Data



Type

Power (Kw)

Capacity(L)

Speed(rpm)

ESSY1.1

1.1

30- 50

2900

ESSY 4.0

4

50- 200

2900

ESSY 7.5

7.5

200-500

2900

ESSY 11

11

500- 1000

2900

ESSY 15

15

1000-1500

2900

ESSY 22

22

1000-2000

2900

ESSY 37

37

1500-3500

1450

ESSY 45

45

2500-5000

1450

ESSY 55

55

3000-6000

960

ESSY 75

75

4000-8000

960

ESSY 90

90

4500-10000

960

ESSY 110

110

5000-20000

940





Hydraulic lift high shear emulsifier

Hydraulic lift high shear emulsifier
