Paint Filler filling machine
Description

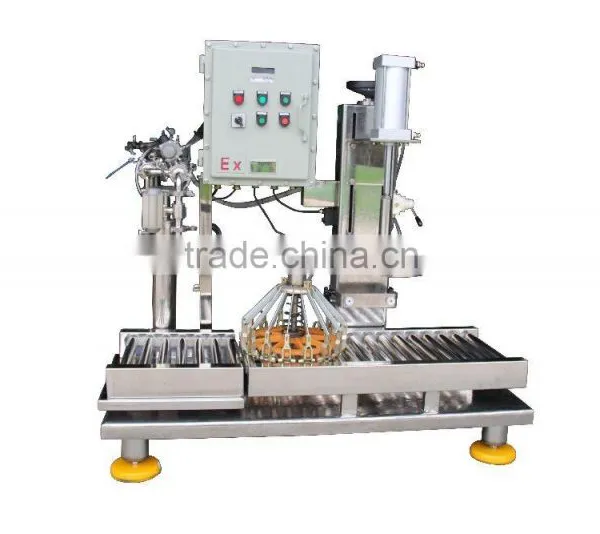

ESWG paint filler for filling machine is semi-automatic type of liquid filling machine, it can filling and capping automatic once put the barrel in the position.It is very suitable to fill in coatings,inks, paints and other fine chemical liquid.
Features
The filling machine adopts high precision gravimetric measuring device, so the measuring result is very correct.
There are fast and slow feeding valves, fast valve increases filling speed and slow valve ensure filling precision greatly.
Widely measuring range and the accuracy is just ±10g/barrel.
Filling nozzle adopts anti-leaking device, make sure there is no airs in the filling material.
Feeding and filling automatically, equipped with pneumatic nipping and capping set.
Main Technical Data
Technical parameter/ Model |
ESWG5 |
ESWG10 |
ESWG30 |
ESWG50 |
Filling range(kg) |
0.5-5 |
2-10 |
5-30 |
10-50 |
Filling speed(time/hours) |
160-240 |
160-240 |
160-240 |
160-240 |
Rate of accuracy |
0.25 |
0.25 |
0.25 |
0.25 |
Accuracy |
±0.2% |
±0.2% |
±0.2% |
±0.2% |
Supply Power |
AC220V /50Hz±2Hz |
|||
Air source |
Flux 0.1m3/min Pressure 0.4~0.6MPa |
|||
Ambient temperature |
0°C~40°C |
|||
