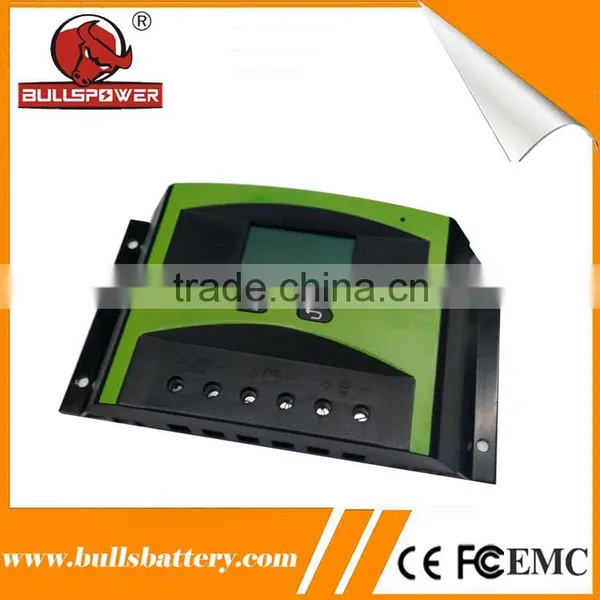

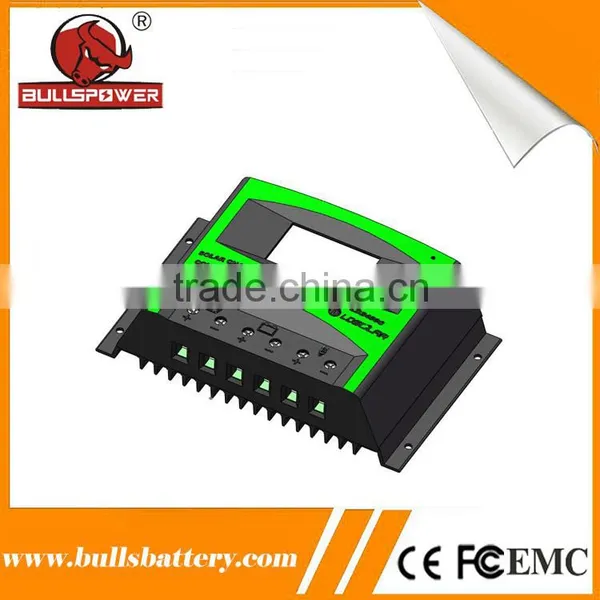

instructions 10a 12v solar panel wind solar hybrid charge controller
Product features:
1.Micro controller digital accuracy
2.PWM 3 stage charging control
3.Multistage charging technology
4.Automatic load reconnection
5.Load disconnection depending on LVD
6.Temperature Compensation,Night light function
7.Common positive grounding on one terminal
8.Has Overcharge protection,Deep discharge protection,Short circuit protection,Open circuit protection,Overload protection,Reverse current protection at night
Application of solar energy system:
This is a new type of electricity system, designed to resolve the problem of power shortage for the families, companies and other places. It can use for solar power system ,light, radio, DVD, TV set, fans, freezer, computers, small hand-drill, and communication equipment. The controller is widely used in the field of family houses, schools, hospitals, offices, etc.
Electronic Protections:
·PV array short circuit
·PV over current
·PV over voltage
·PV reverse polarity
·Battery reverse polarity
·Over charging
·Overheating protection
Mode number |
BP2420 |
|
System Voltage |
12V/24V |
|
Max Input voltage |
25V |
55V |
Self-consumption |
≤12mA |
|
Max Charge Current |
10A |
20A |
Max discharge current |
10A |
20A |
LVD |
11.0V ADJ 9V….12V ; ×2/24V |
|
LVR |
12.6V ADJ11V….13.5V ; ×2/24V |
|
Float Voltage |
13.8V ADJ13V….15V ; ×2/24V |
|
Boost Charging |
14.4V ; ×2/24V Bettery Voltage less than 12Vstart boost charging 2 hours |
|
Charging mode |
PWM |
|
Temperature Compensation |
-24mV/℃ for 12V system ; ×2/24V |
|
Working Temperature |
-20℃---+50℃ |
|
Terminal scale |
28—10 AWG |
|
Water Proof grade |
IP32 |
|
Size |
168mm×92mm×41.5mm |
|
Net weight |
320g |
|
Unite Carton Size |
540*405*235 mm |
|
PCS/CTN |
40PCS |
|

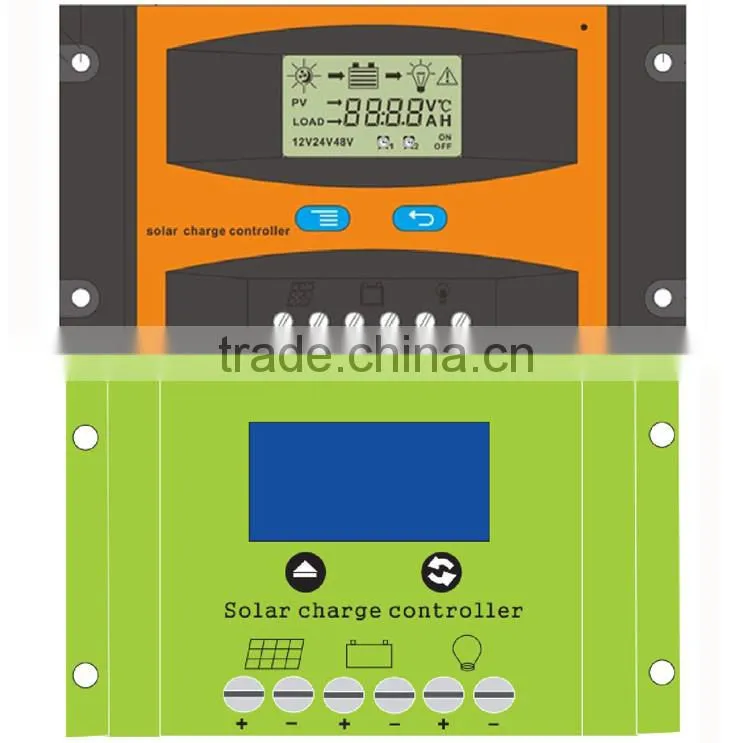

Mode number |
LCD2430 |
||
System Voltage |
12V/24V |
48V |
|
Max Input voltage |
25V |
50V |
100V |
Self-consumption |
≤12mA |
||
Max Charge Current |
30A |
||
Max discharge current |
30A |
||
LVD |
11.0V ADJ 9V….12V ; ×2/24V;×4/48V |
||
LVR |
12.6V ADJ 11V….13.5V ; ×2/24V;×4/48V |
||
Float Voltage |
13.8V ADJ 13V….15V ; ×2/24V;×4/48V |
||
Boost Charging |
14.4V ; ×2/24V;×4/48V Bettery Voltage less than 12Vstart boost charging 2 hours |
||
Battery Over Voltage Protection |
16.5V ; ×2/24V;×4/48V |
||
Charging Mode |
PWM |
||
Temperature Compensation |
-24mV/℃ for 12V system ; ×2/24V; ×4/48V |
||
Working Temperature |
-20℃---+50℃ |
||
Terminal scale |
14—6 AWG |
||
Water Proof grade |
IP32 |
||
Size |
190mm×108mm×41.5mm |
||
Net weight |
480g |
||
Unite Carton Size |
448*390*283 mm |
||
PCS/CTN |
30PCS |
||
Mode number |
LD2460S |
|||||||
System Voltage |
12V/24V |
48V |
||||||
Max Input voltage |
25V |
50V |
100V |
|||||
Self-consumption |
≤12mA |
|||||||
Max Charge Current |
30A |
40A |
50A |
60A |
50A |
60A |
||
Max discharge current |
30A |
|||||||
LVD |
11.0V ADJ 9V….12V ; ×2/24V;×4/48V |
|||||||
LVR |
12.6V ADJ 11V….13.5V ; ×2/24V;×4/48V |
|||||||
Float Voltage |
13.8V ADJ 13V….15V ; ×2/24V;×4/48V |
|||||||
Boost Charging |
14.4V ; ×2/24V;×4/48V Bettery Voltage less than 12Vstart boost charging 2 hours |
|||||||
Battery Over Voltage Protection |
16.5V ; ×2/24V;×4/48V |
|||||||
Charging Mode |
PWM |
|||||||
Temperature Compensation |
-24mV/℃ for 12V system ; ×2/24V; ×4/48V |
|||||||
Working Temperature |
-20℃---+50℃ |
|||||||
Terminal scale |
14—6 AWG |
|||||||
Water Proof grade |
IP32 |
|||||||
Size |
220mm×128mm×44mm |
|||||||
Net weight |
480g |
|||||||
Unite Carton Size |
470*434*305 mm |
|||||||
PCS/CTN |
24PCS |
|||||||
-

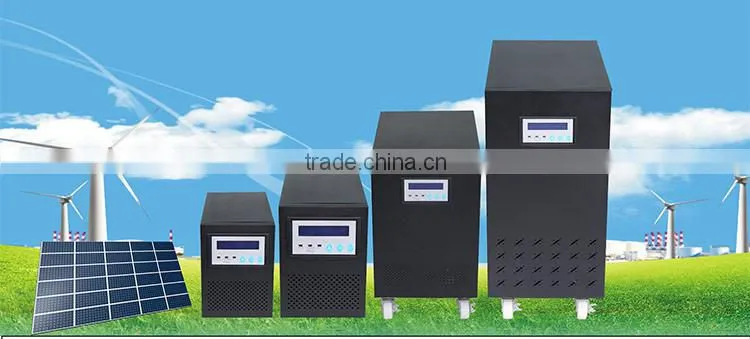

notice:we have Inverter with AC Charger and Controller

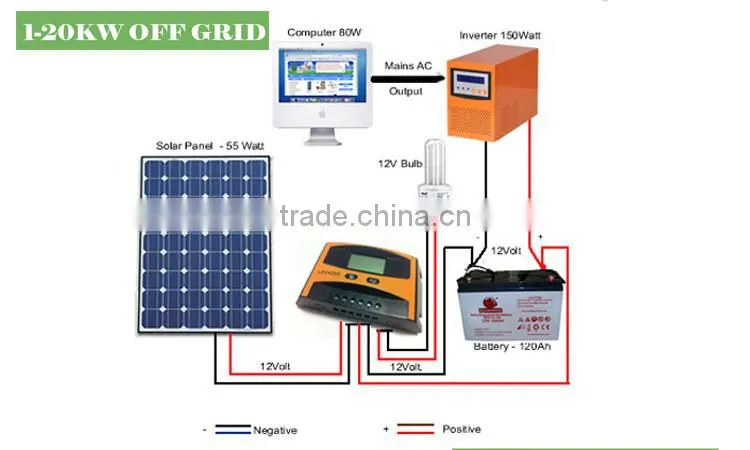

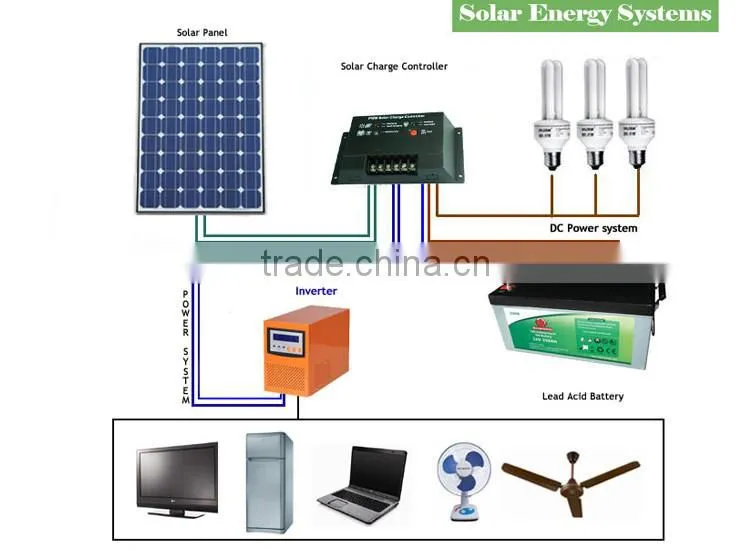

Solar cell modules
It converts solar energy into electrical energy and the frames support solar panels.

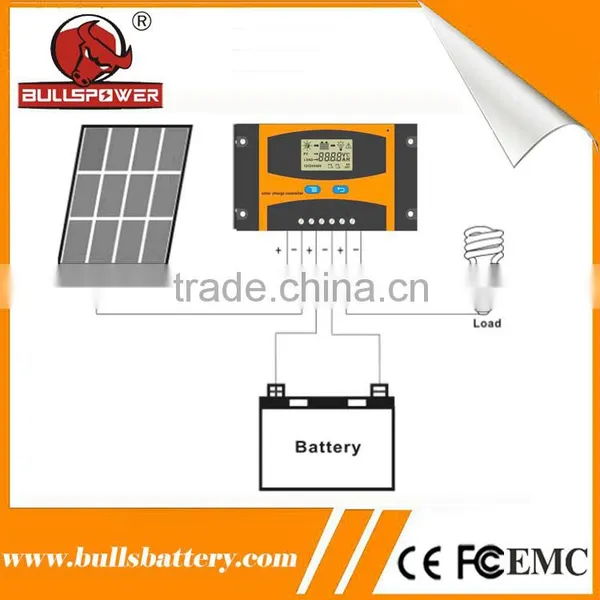

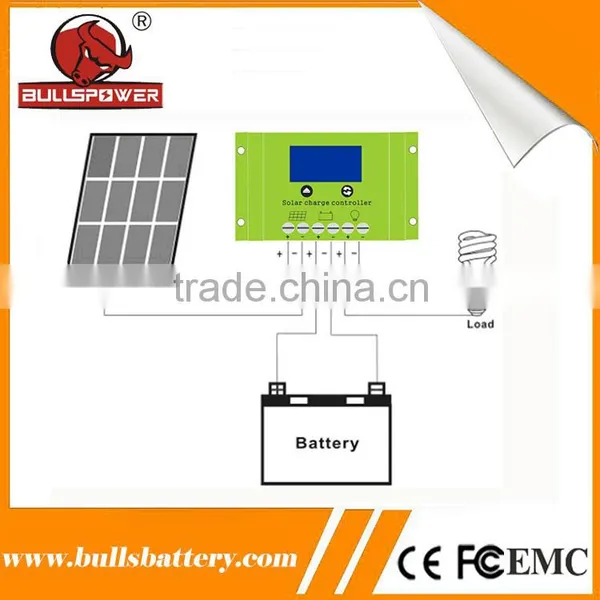

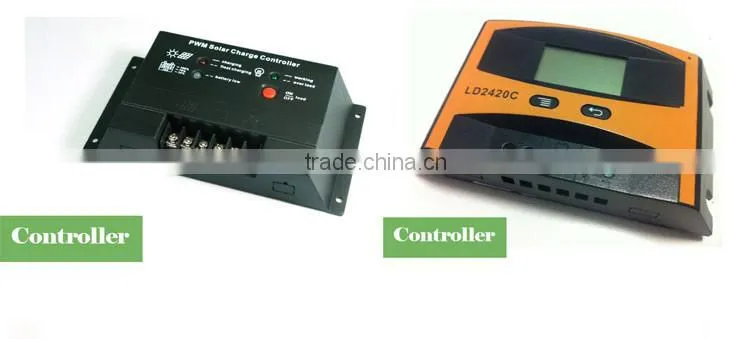

Charge controller
It supplies direct current regulated from solar modules to the battery or inverter.

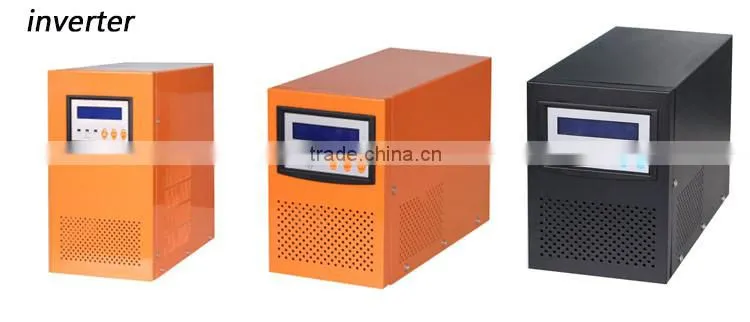

Stand-Alone Inverter
It supplies alternative current to loads after rectifying the direct current.

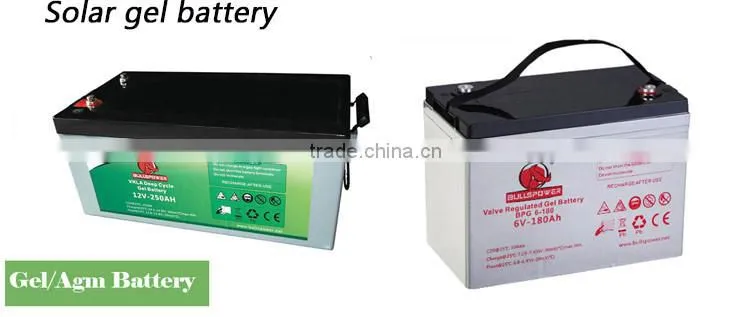

Battery
It supplies the electric power to loads through inverter in case the electric power generated from solar modules is in short supply or at night. -
More products please click

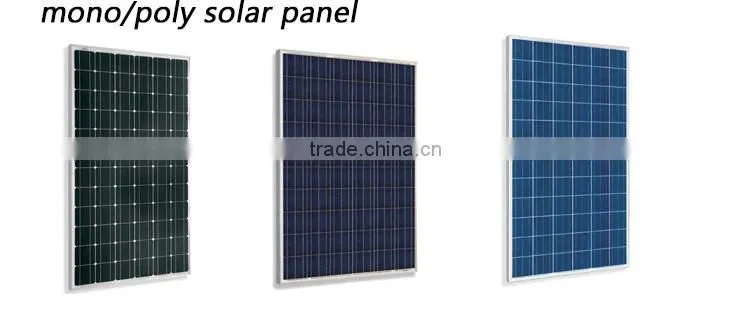

3W-300W Mono Solar panel

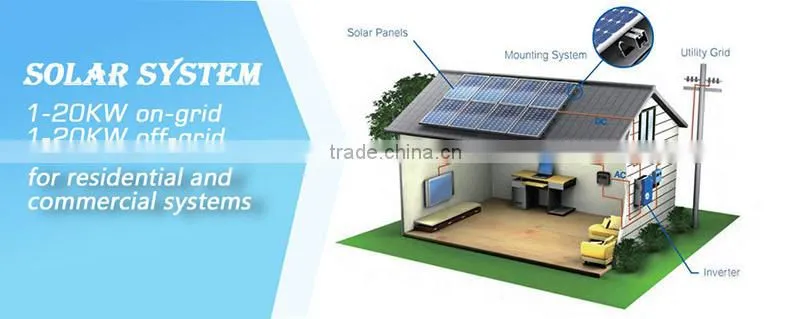

3W-300W Poly Solar panel - 1KW-10KW Solar system
Why choose Bullspower?
1. Professional OEM & ODM service
2. Outstanding design and R&D team
3. Best quality control--55 QC checking points
4. Small quantity order / trial order accepted
5. Excellent quality and 24 hours after-sales service
6. Quality guarantee 1-3 years varies from different series
7. Diversified payment terms TT, L/C, Western Union, Paypal for your selection
8. Protection of your sales area, ideas of design and all your private information
9. Welcome to inquiry, welcome to visit our factory
Need solar system can contact us, we can offer a series of products for you!
3W-300W Poly Solar panel
Please contact us as following contact information.
Contact: Mia Zhou
Telephone:86-752-2819469
skype:miazhou07
Whatsapp/Wechat/QQ number:0086 15019807612 / 1065983422
Country/Region:China(Mainland)
Province/State:Guangdong
City:Huizhou
Q1: How to choose a right inverter and solar battery?
A1:Tell us your demand, then our sales will recommend a suitable inverter and solar battery to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7-10 days for sample; 25 days for bulk order.
Q4: What is the warranty of solar panel?
A4: 5 year warranty
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
