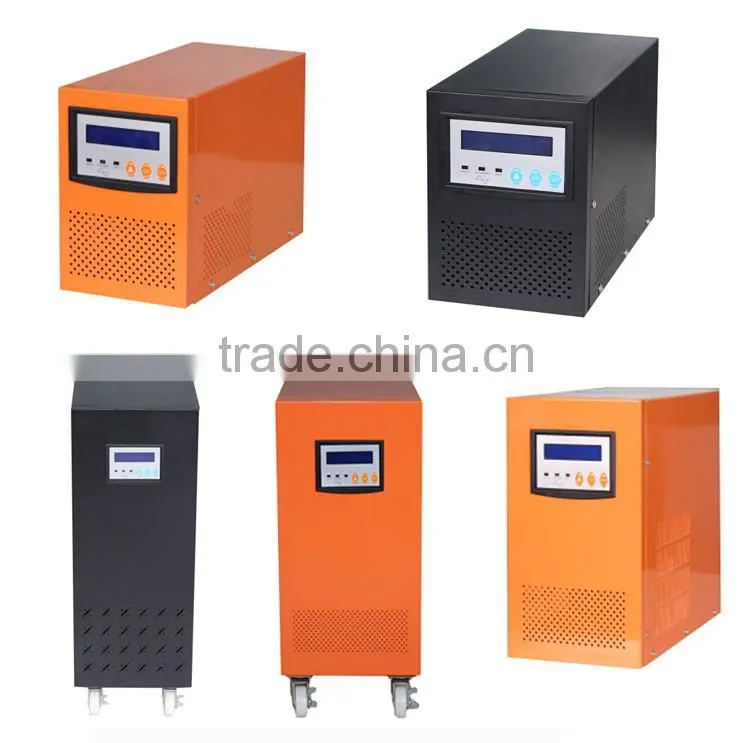

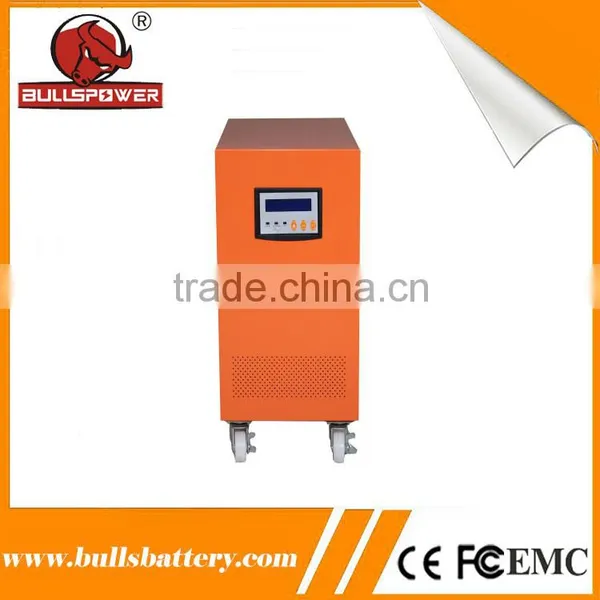

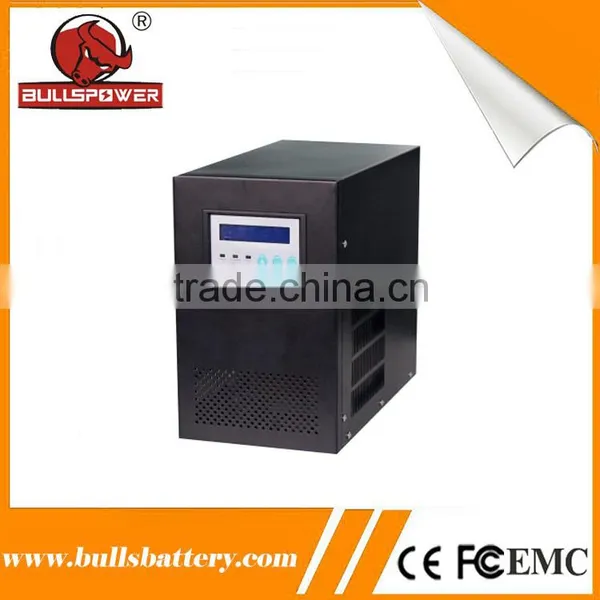

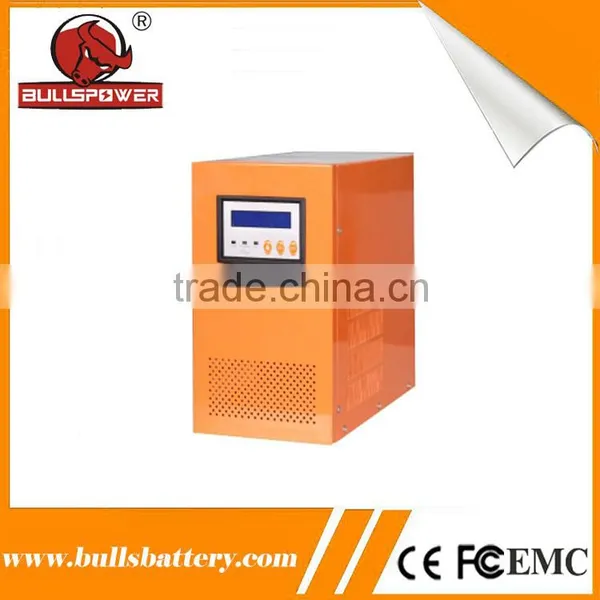

AC DC 12v 220v pure sine wave 1500w inverter for home use solar system
Off-grid / pure sine wave inverter with charger/ DC to AC inverter
Solar power inverter (Home UPS/ Line interactive UPS)
Features and function:
* Pure sine wave output
* CPU control technology; SCM control
* Strong ability of impact resistance
* Have UPS function and AC charger function
* Wide input voltage range: 145-275V; 300W-3500W has three step AVR (two step -up, one step -down)
* Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc.
* Anti reverse connection protection and high-low voltage protection(option)
* Special overload protection: when it is overload, it will lock the unit automatically,when it restores,it will restart the unit automatically again.
* Strong inverter ability. It can change frequency immediately and it is able to drive the inductive load such as air conditioner, refrigerator, motor, etc.
* LCD display
* Meet the need of different power supply
* Use MOSFET
Working Mode Option:
1,The city power priority: when city power is available ,the inverter will work AC output , city power will supply to load ; when have both city power, inverter will charges power to battery . when city power failed, inverter will use battery power talk the load .
2,Battery priority : when it have battery power , inverter will use battery power take the load , when battery power is lower ,inverter will automatically use ups function, use city power talk the load and charge the battery .
Application of solar energy system:
This is a new type of electricity system, designed to resolve the problem of power shortage for the families, companies and other places. It can use for solar power system ,light, radio, DVD, TV set, fans, freezer, computers, small hand-drill, and communication equipment. The inverter /UPS is widely used in the field of family houses, schools, hospitals, offices, etc.
Model |
300W |
400W |
500W |
600W |
700W |
1000W |
1500W |
2000W |
|||
Input |
Rated capacity |
300W |
400W |
500W |
600W |
700W |
1000W |
1500W |
2000W |
||
Input |
peak power |
600W |
800W |
1000W |
1200W |
1500W |
2000W |
3000W |
4000W |
||
Input |
Commercial Power range(VAC) |
100/110/120/127/220/230(+25%,-35%) |
|||||||||
Battery |
DC Voltage |
12/24VDC |
24/48VDC |
||||||||
Output |
AVR voltage range(VAC) |
110/120/127/220/230/240±10%(Auto-sensing) |
|||||||||
over voltage protection |
15V/30V |
30V /60V |
|||||||||
under voltage protection |
10.5V/21V ±1V |
21V/42V ±1V |
|||||||||
Transfer time |
Typical:5ms(Including detection time) |
||||||||||
Output |
Waveform |
Pure sine wave |
|||||||||
Frequency |
|
||||||||||
temperature |
|
0℃~70℃ |
|||||||||
|
Appearance |
External Size(mm) (L*W*H) |
320*150*210 |
380*195*310 |
||||||||
Gross Size(mm) |
494*420*345(2PCS) |
532*335*468(1PCS) |
|||||||||
Net weight(kg) |
7 |
8 |
9 |
10 |
11.5 |
14 |
23 |
26 |
|||
Gross weight(kg) |
16 |
18 |
20 |
22 |
23 |
30 |
25 |
28 |
|||
protection |
overload |
|
|||||||||
Battery |
TYPE |
Sealed, maintenance-free lead acid |
|||||||||
Recharge current |
18A(Maximum) |
||||||||||
Battery protection |
|
||||||||||
-
notice:we have Inverter with AC Charger and Controller

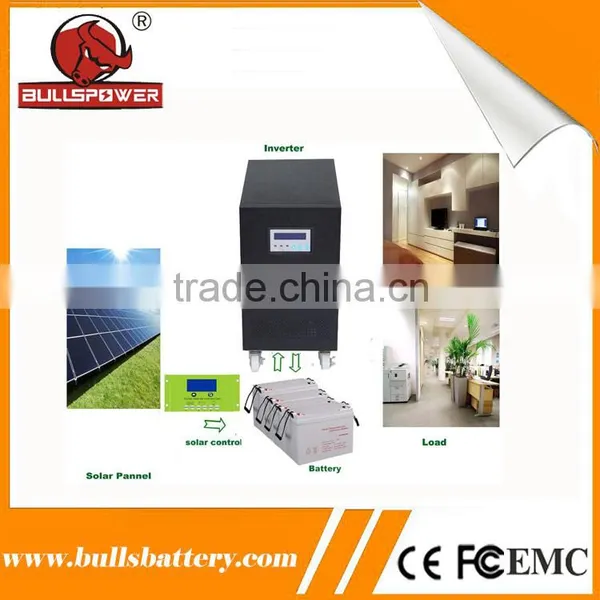

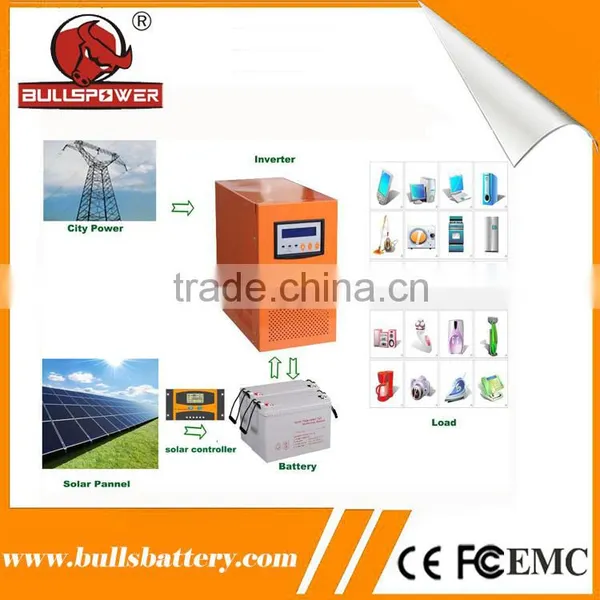

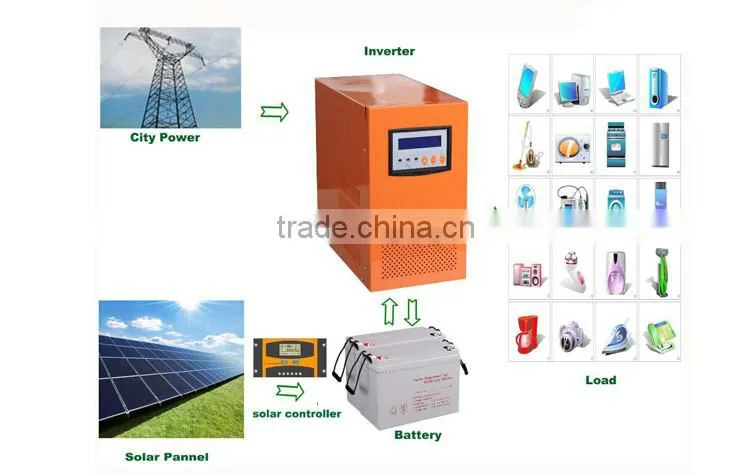

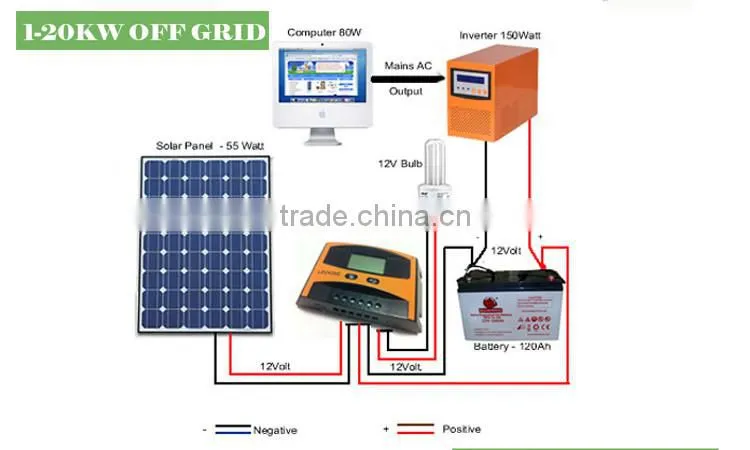

Solar cell modules
It converts solar energy into electrical energy and the frames support solar panels.

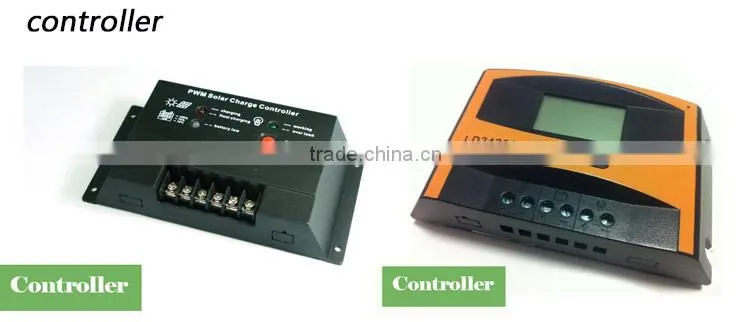

Charge controller
It supplies direct current regulated from solar modules to the battery or inverter.
Stand-Alone Inverter
It supplies alternative current to loads after rectifying the direct current.
Battery
It supplies the electric power to loads through inverter in case the electric power generated from solar modules is in short supply or at night. -
More products please click
3W-300W Mono Solar panel
3W-300W Poly Solar panel - 1KW-10KW Solar system
Why choose Bullspower?
1. Professional OEM & ODM service
2. Outstanding design and R&D team
3. Best quality control--55 QC checking points
4. Small quantity order / trial order accepted
5. Excellent quality and 24 hours after-sales service
6. Quality guarantee 1-3 years varies from different series
7. Diversified payment terms TT, L/C, Western Union, Paypal for your selection
8. Protection of your sales area, ideas of design and all your private information
9. Welcome to inquiry, welcome to visit our factory
Need solar system can contact us, we can offer a series of products for you!
3W-300W Poly Solar panel
Please contact us as following contact information.
Contact: Mia Zhou
Telephone:86-752-2819469
skype:miazhou07
Whatsapp/Wechat/QQ number:0086 15019807612 / 1065983422
Country/Region:China(Mainland)
Province/State:Guangdong
City:Huizhou
Q1: How to choose a right inverter and solar battery?
A1:Tell us your demand, then our sales will recommend a suitable inverter and solar battery to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7-10 days for sample; 25 days for bulk order.
Q4: What is the warranty of solar panel?
A4: 5 year warranty
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
