Home > Products > 1. plastic recycling line > Plastic Bottle Recycling Machine/Plastic Crushing Machine

Plastic Bottle Recycling Machine/Plastic Crushing Machine

FOB Price

US$ 10,000 - 15,000 / Set

1 Set(Min. Order)

Port TIANJIN
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	WASTE PLASTIC RECYCLING
Automatic Grade	Automatic	Production Capacity	100%
Place of Origin	Hebei, China	Brand Name	HAORUI
Model Number	Type 800	Voltage	380V 50HZ
Power(W)	45kw	Dimension(LWH)	As customers required
Weight	8-15tons	Certification	CE ISO9001
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Application

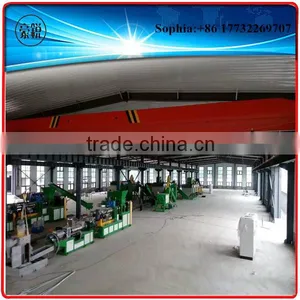

It is suitable for crushing, washing and drying of waste plastic such as PP, PE, PET, etc. We can make it in carbon steel and stainless steel, also we can design machines according to different waste plastic and requirements of clients. This waste plastic recycling line mainly includes:

SPECIFICATIONS FOR PET RECYCLING WASHING LINE
NO.	ITEM	DESCRIPTION
1.	Prewasher	Remove solid impurity,wash surface of bottles.
2.	Bale Opener	Break up the compressed bottle bale.
3.	Belt Conveyer	Transport bottles to label remover.
4.	Label Remover	Remove the labels on the bottle,label removing efficiency, more than 98%
5.	Manual Select Platform	Made according to workers' height, supply a suitable plate for selecting the left labels or some other impurity.
6.	Belt Conveyer	Transport the bottles into crusher.
7.	Crusher	Crush the bottles with water,It also have function of pre washing.
8.	Screw Feeder	Conveying the flakes into friction washer.
9.	Friction Washer	Scrubbing material in high-speed with water
10.	Floating Washer	Remove few remand paper, sand, label from material based ondifferentdensity.
11.	Screw Feeder	Conveying the flakes into hot washer.
12.	Hot Washer	High temperature stirring washing with caustic soda. Water can be heated by steam or electric.
13.	Screw Feeder	Conveying the flakes into floating washer.
14.	Floating Washer	Remove few remand paper, sand and labels.
15.	Floating Washer	Remove few remand paper, sand, label from material based on differentdensity.
16.	Dewatering Machine	High speed centrifuge drying.Horizontal and Vertical dewatering machine
17.	Electric heating System	Electric heating wind drying.
18.	Label Flakes Separator	The last left impurity will be separated from flakes by the blower fan.
19.	Storage Silo	Store the final material.
20.	Electrical Control Panel	Control the whole line.

Main Features

1) this machine can deal with PE, PP, PET, etc

2) waste plastic in high efficiency and low power consumption

3)easy cooperation

Packing & Delivery

Packaging
Size	4500 (L) * 1500 (W) * 2500 (D)
Weight	1.2 T
Packaging Details	The normal package is film,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	5000 (L) * 900 (W) * 900 (D)
Weight	1.2 T
Packaging Details	The normal package is film,we will use pe film for packing or pack it according to customers special request.
