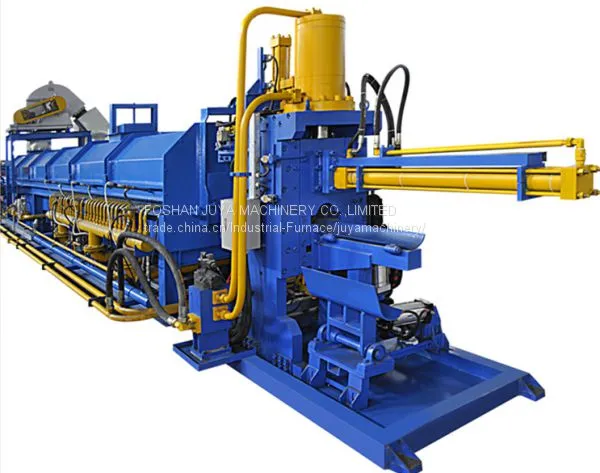

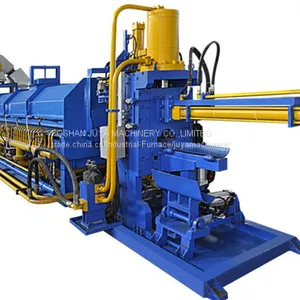

single hot log shear furnace for aluminum profile extrusion
- 10 Set / Sets per Month
- shenzhen
- T/T L/C
- 45 days
Product Details
| Brand Name: | juya | Place of Origin: | China | Model Number: | juya-011 |
| Type: | Other, direct | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | one year |
| Weight: | 25tons | Dimension(L*W*H): | 25m*2.5m*2.5m | Voltage: | 380v 50Hz |
| Usage: | Other, heating aluminum extrusion billet and shear | Condition: | New |
Product Description
Single hot log shear furnace for aluminum profile extrusion
Billet Dia. | 4inch | 5inch | 6inch | 7inch | 8inch | 9inch | 10inch | 11inch | 12inch | 13inch | 14inch | |
Φ102 | Φ127 | Φ152 | Φ178 | Φ203 | Φ228 | Φ254 | Φ280 | Φ305 | Φ330 | Φ356 | ||
Press | 800T | 1000T | 1400T | 1650T | 2000T | 2500T | 3000T | 3600T | 3600T | 4500T | 4500T | |
Billet L | 6~8m | 6~8m | 6~8m | 6~8m | 6~8m | 6~8m | 6~8m | 6~8m | 6~8m | 6~8m | 6~8m | |
Max. Temp. | 538℃ | 538℃ | 538℃ | 538℃ | 538℃ | 538℃ | 538℃ | 538℃ | 538℃ | 538℃ | 538℃ | |
Temp. tolerance | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | ±5℃ | |
Heat up | 20 min | 20min | 25min | 25min | 30min | 35min | 35min | 40min | 40min | 50~60min | 50~60min | |
Heat area | 3 | 3 | 3 | 4 | 4 | 4 | 5 | 6 | 6 | 6 | 6 | |
NG consumption | 20m3/T | 20m3/T | 25m3/T | 25m3/T | 25m3/T | 25m3/T | 28m3/T | 28m3/T | 28m3/T | 28m3/T | 28m3/T | |
Fuel | Natural gas ,LPG | |||||||||||
Fuel calorific | Natural gas : 8400 Kcal; LPG : 23000 Kcal | |||||||||||
Compressed air | 5~8 bar | |||||||||||
Combustion fan | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 15kw | 15kw | 15kw | 15kw | 15kw | 15kw | 15kw | |
Circulation fan | 7.5kw | 11kw | 11kw | 15kw | 18.5kw | 18.5kw | 18.5kw | 30kw | 30kw | 30kw | 30kw | |
Power | 15kw | 18.5kw | 18.5kw | 24.5kw | 35.5kw | 35.5kw | 35.5kw | 47kw | 47kw | 47kw | 47kw | |
