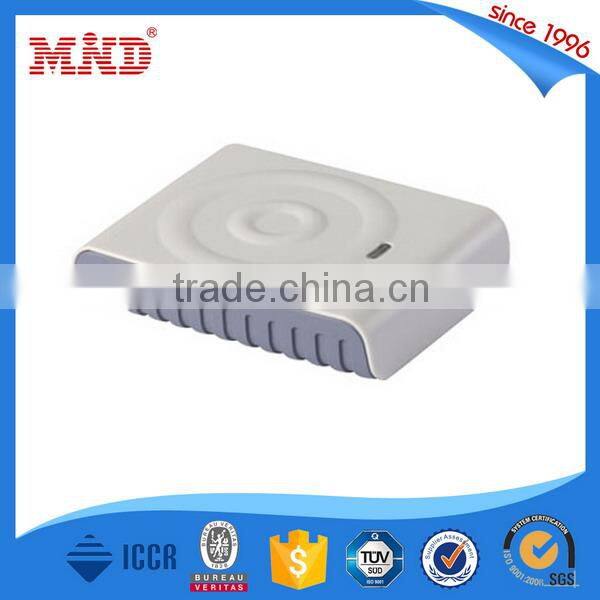

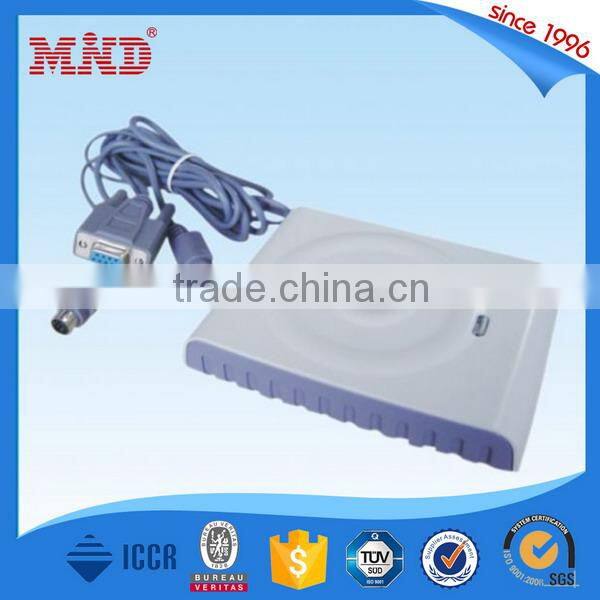

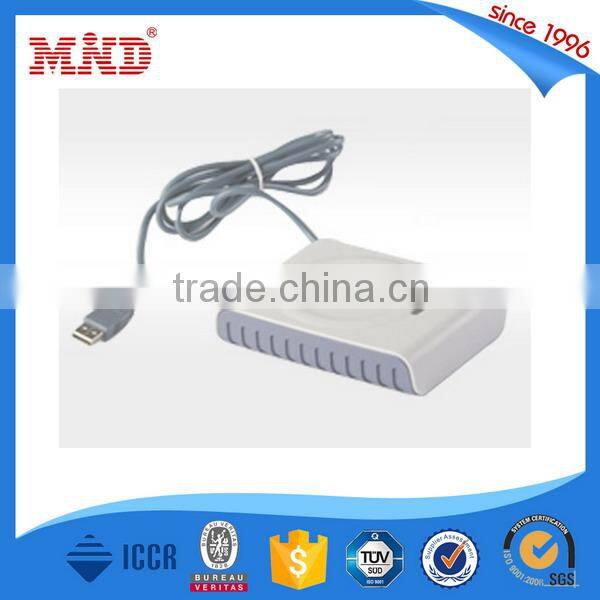

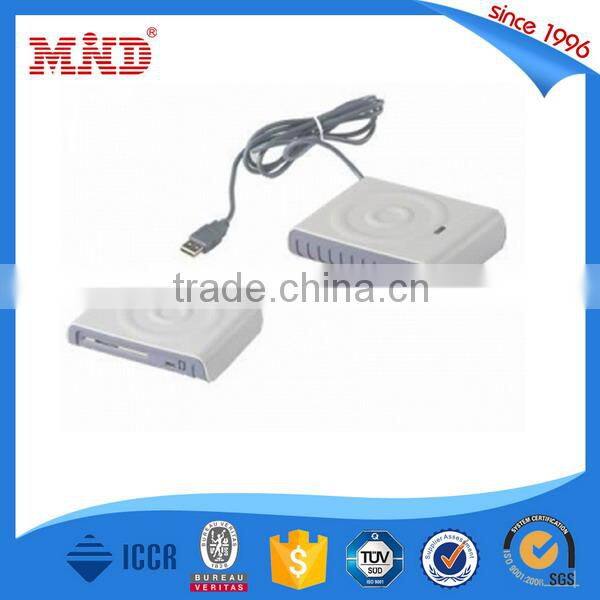

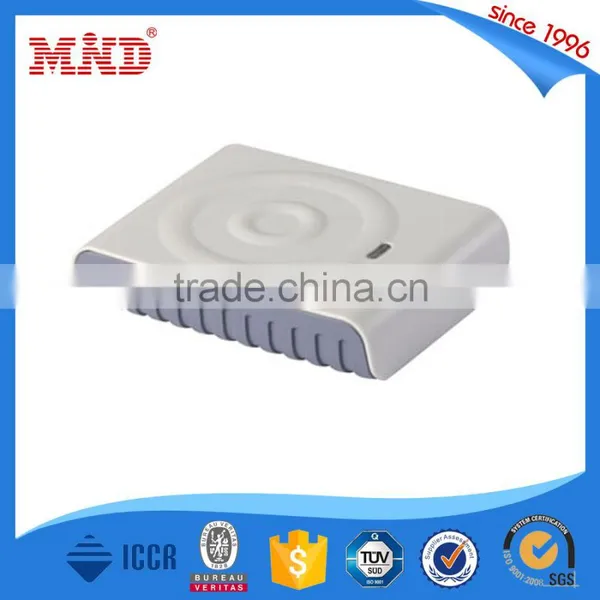

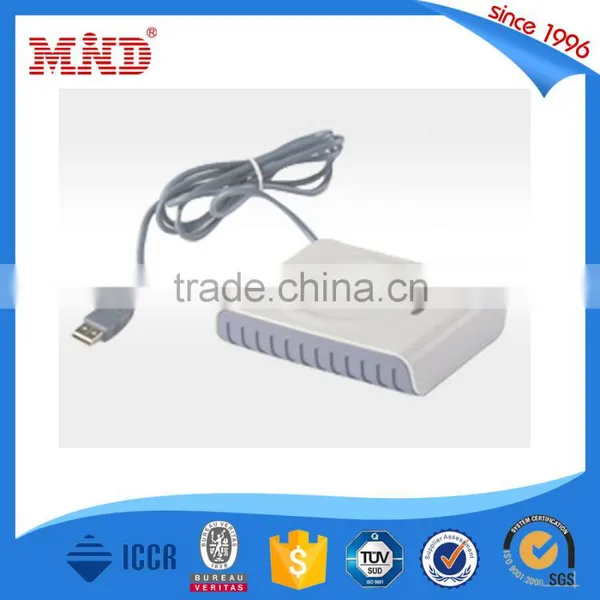

MDR1 RFID card reader-writer with USB contact Interface
MDR1 USB rfid reader/D8 tactless smart card reader is a PC-linked contactless smart card reader/writer developed on the 13.56MHz Contactless (RFID) Technology and followed for Near Field Communication (NFC), supporting not only ISO 14443 A and B cards but also NFC and FeliCa contactless technologies, CCID compliance.
Features
1.Contactless Card Reader
2.USB Interface To Communicate With PC
3.ecure Smart Card Reader Applications .
4.Auto-testing Card Operation
Frequency:13.56MHz
Power provided:Key board
Data Baud rate:9600(bit/sec)
Size:140*100*30mm
Nominal Weight:0.3kg
Package: 1 piece in one single box.
Shipping: Different express(DHL, FedEx, TNT etc.)
| Host interface | USB or serial RS232 |
| operating range | 0°C to +50 °C |
| storage range | -40 °C to +85 °C |
| humidity range | 30 % to 95 % non condensing |
| Smart card interface | ISO 7816 T=0 T=1 protocols, support popular memory cards in the market. |
| Contactless | ISO 14443 TYPE A&B or ISO15693 (13.56MHZ) |
| power supply voltage | DC5V |
| power supply current | <100 mA |
| BPS | 9600-115200bps |
| Operation systems | Windows 98/me/2000/NT/XP, UNIX, LINUX |
| operating distance (contactless) | up to 5 cm,typical 2.5 cm |
Applications: access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.
Many different main products for your free choice : NFC/RFID card, contact IC card, NFC Epoxy Tag, ABS key Fob, RFID wristband etc.
1. Warranty: 3 years
2. Free Replacement: If have inaccurate card within order, Chengdu Mind will provide free replacements.
3. On-time Delivery Guarantee: delay over 1 week, provide 2% free cards; delay over 2 weeks, provide 4% free cards.
Our Partners:
Established in 1996, Chengdu Mind IOT Technology Co.,Ltd has own factory with 20000 sqaure meters, specialized in the designing, manufacturing and selling of RFID products and PVC cards over 19 years.
1. What about the warranty period
Two years without natural and man-made damage. We guarantee no worries for the after sale.
2. What about the delivery time?
Once we got payment or deposit, 5-6 working days for producing 1000-80000 pcs cards.
3. What about the sample testing?
Free Sample (Existing sample) for testing before client place full order.
4. Are you a trading company or factory?
We are the one of the biggest manufacturer of RFID cards/NFC tags/PVC cards in China over 19 years.
5. What about the payment and shipment?
You can pay with T/T, Western Union, Paypal, Credit card etc.
Clients can choose by sea, air or express(DHL, FedEx, TNT UPS etc.)
Application
1) Mobile wallet (mobile payment)
2) Amusement management.(swimming pool, fairground etc.)
3) Access Control System
4) Electronic ticket vending machines
5) Parking system
6) Personnel identification and exchange
