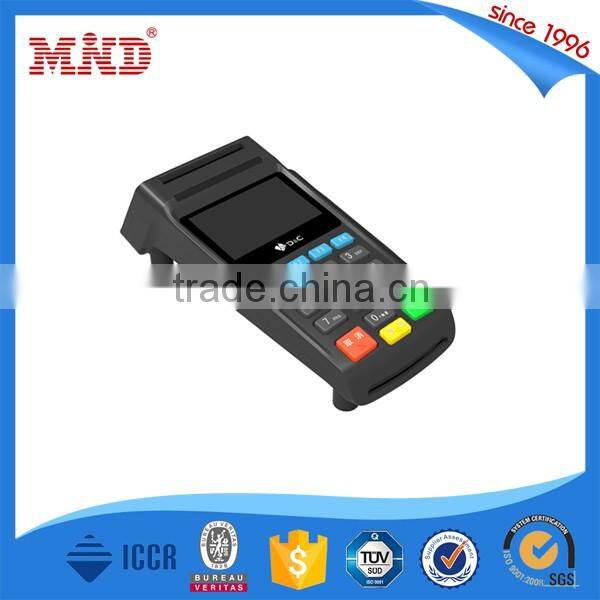

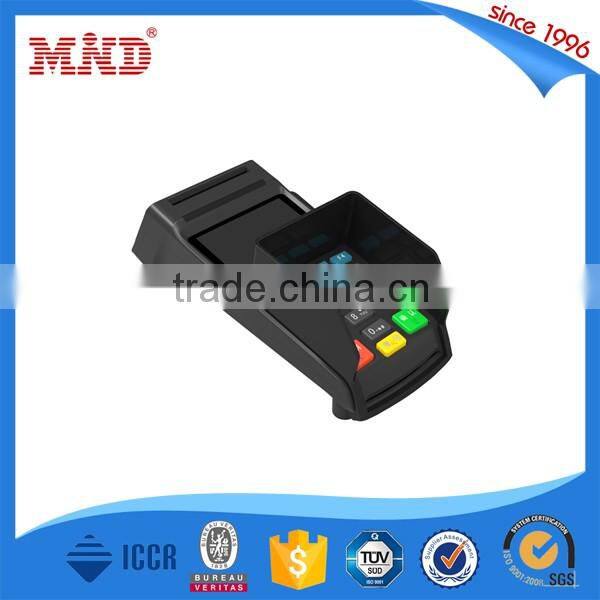

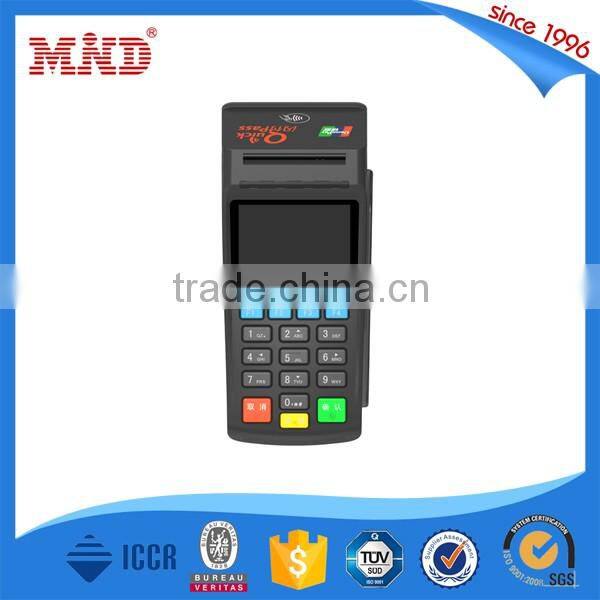

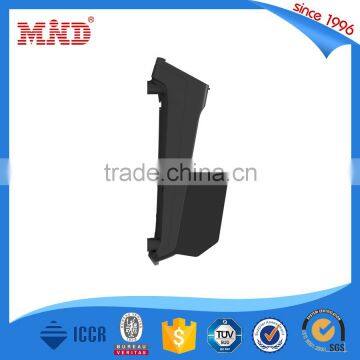

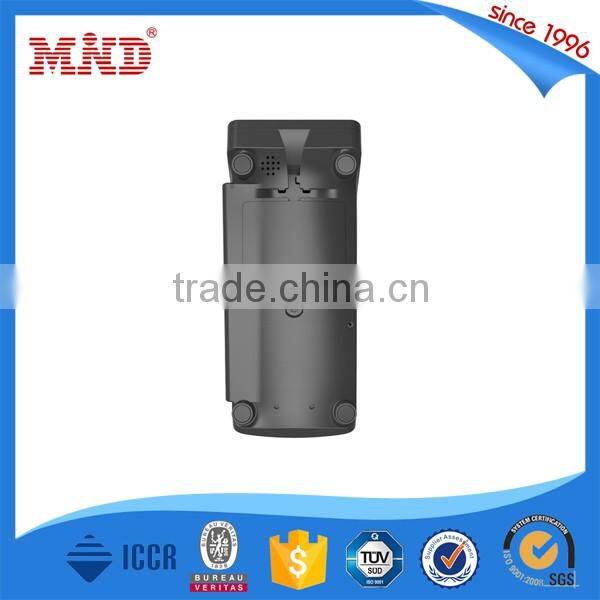

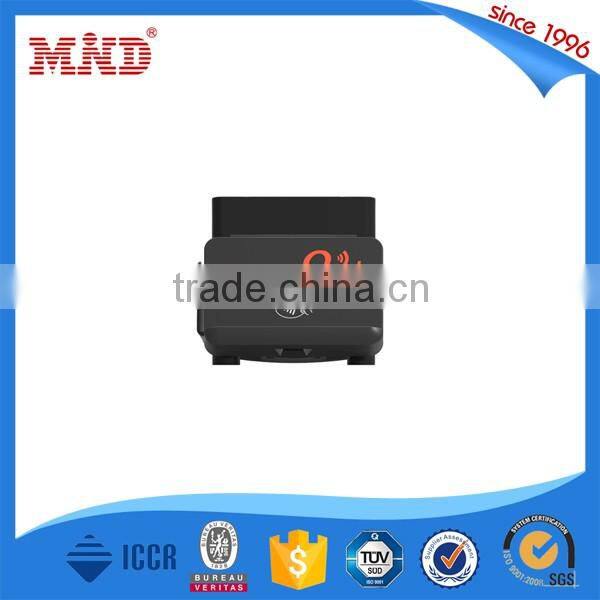

MDR19 Bluetooth NFC Smart Card Reader With RS232 And USB Interface
Z90 is an all-in-one card reader/writer, supports contact IC card,contact-less IC card and mag-stripe card.It adopts 32 bit high-speed CPU and high-capacity storage,which makes it can be with great data-handling capacity.Z90 facilitates charge and communication by RS232 or USB interface .Non-driving tech USB supports 2 contact card slot.Main slot is with drop insert-plug way
| Central Processor | 32bit CPU | ||||
| Storage | 16/32/64M FLASH | Match | |||
| 8M/16M/32M PSRAM | |||||
| Display | Main display | 128×64 dot-matrix LCD,multi-language support | Optional | ||
| 192×64 dot-matrix LCD,multi-language support | |||||
| Indicate Light | 4,from left to right: blue yellow green red | ||||
| Press Key | Built-in 17 press key, support keyboard inserted | ||||
| Voice | voice broadcast support | Match | |||
| Buzzer | Support | ||||
| Peripheral Interface/Communication Mode | Direct outlet | Two USB interface | HID(USB non-director) | ||
| Direct outlet | One DB9 interface | RS232 | |||
| One USB interface | Baud rate115,200 bps | ||||
| Direct outlet | One USB socket | available for external password keyboard | |||
| Mag-stripe Card Reader | 1/2/3 rail track read,two-way and single side card use | Match | |||
| IC Card Reader | 2 | ||||
| Certificated with ISO/IEC 7816 | |||||
| Support T=0,T=1 CPU card, simultaneously support universal storage card AT24 series,4442,4428... | |||||
| T=0:9600-38400bps,T=1:9600-115200bps | |||||
| Card contacts can be used to 20,0000times | |||||
| Contact-less Reader | |||||
| Support ISO/IEC 14443 Type A/B card, MF card,ISO15693 E -tags; | |||||
| Read distance is over 4CM; | |||||
| SAM Card Slot | 4 card slot,certificated with ISO/IEC 7816 | ||||
| Power Supply | Serial interface or USB interface, | ||||
| DC5V±5% | |||||
| with over-voltage protection | |||||
| Real-time Clock | Built-in real-time clock | ||||
| Operating Systems | Windows 98,Me,2K,XP,2003,Unix,Linux | ||||
| Encryption Mode | Encryption mode | Software encryption | |||
| Encryption algorithm | DES,3DES,RSA | ||||
| Working Environment | Temperature:-20℃~60℃ | ||||
| Humidity:5%~93%(non-condensing) | |||||
| Storage Environment | Temperature:-20℃~70℃ | ||||
| Humidity:5%~95%(non-condensing) | |||||
| Dimensions | 186*77*40.7mm | ||||
| Weight | |||||
| Others | Provide function library of universal interface; | ||||
| Support various of operating systems and language development platform; | |||||
| Online upgrading is available; | |||||
| Support customization and development. | |||||
| Match line | Direct outlet 1.5M two USB interface line cable; | Optional | |||
| Direct outlet 1.5M one RJ11 socket and two USB interface(or one DB9 interface,1 USB interface)line cable, | |||||
| Direct outlet 1.5M one DB9 interface,1 USB interface line cable. | |||||
Established in 1996, Chengdu Mind IOT Technology Co.,Ltd has own factory with 20000 sqaure meters, specialized in the designing, manufacturing and selling of RFID products and PVC cards over 19 years.
1. Warranty: 3 years
2. Free Replacement: If have inaccurate card within order, Chengdu Mind will provide free replacements.
3. On-time Delivery Guarantee: delay over 1 week, provide 2% free cards; delay over 2 weeks, provide 4% free cards.
Our Partners:
Many different main products for your free choice : NFC/RFID card, contact IC card, NFC Epoxy Tag, ABS key Fob, RFID wristband etc.
1. What about the warranty period
Two years without natural and man-made damage. We guarantee no worries for the after sale.
2. What about the delivery time?
Once we got payment or deposit, 5-6 working days for producing 1000-80000 pcs cards.
3. What about the sample testing?
Free Sample (Existing sample) for testing before client place full order.
4. Are you a trading company or factory?
We are the one of the biggest manufacturer of RFID cards/NFC tags/PVC cards in China over 19 years.
5. What about the payment and shipment?
You can pay with T/T, Western Union, Paypal, Credit card etc.
Clients can choose by sea, air or express(DHL, FedEx, TNT UPS etc.)
Application
1) Mobile wallet (mobile payment)
2) Amusement management.(swimming pool, fairground etc.)
3) Access Control System
4) Electronic ticket vending machines
5) Parking system
6) Personnel identification and exchange
We are looking for long terms cooperation access control and security systems wholesalers, resellers, importers, agents worldwide!
