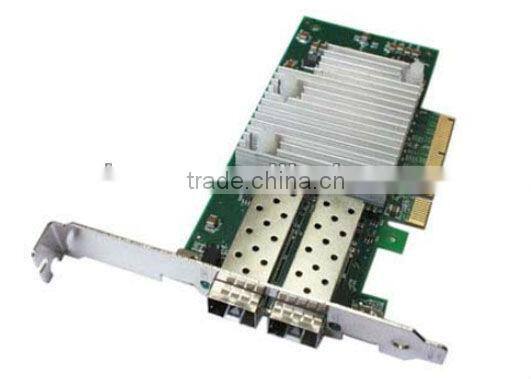

server adapter card 10 Gigabit Ethernet Network interface card SFP+ Slots*2 NIC cards

Name: server adapter card 10 Gigabit Ethernet Network interface card SFP+ Slots*2 NIC cards
Brand: EDNSE
Price: USD $5 - 500 / Set

FOB Price

USD $5 - $500 / Set

200 Sets(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shenzhen/HK
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Products Status:	Stock	Application:	Server	Type:	Wired
Kind:	Internal	Transmission Rate:	Other, 1 GbE/10 GbE	Interface Type:	Other, SFP
Certification:	FCC B, UL, CE, VCI, BSMI, CTICK, MIC	Brand Name:	EDNSE	Model Number:	10Gigabit Ethernet
Place of Origin:	Guangdong, China

Product Description

Specifications

EDNSE server adapter card 10Gigabit Ethernet
1.Optimized for virtualized environments;

General and Technical Features
Manufacturer Product Name		EDNSE 10 Gigabit Ethernet Dual Port Server Adapter X520 SFP+ 2
Product Code		10G2BF-SFP+
Form Factor		Internal-connected with Intel Xeon 5500 series processor servers
Controller-Processor		Intel 82599ES*1
Bus Type		PCI Express 2.0(5GT/s)
Bus Width		x8 lane PCI Express,operable in x8 and x16 slots
Bus Speed (x8, encoded rate)		20 Gbps uni-directional; 40 Gbps bi-directional
Network Interface Type		SFP+ Slots *2, two LC fiber-optic connectors Direct Attach cables
Data Rate(s) Supported		Optical: 1 GbE/10 GbE Direct Attach: 10 GbE per port
Network Standards Physical Layer Interface		10GBASE-LR 10GBASE-SR
IEEE Network Standards		IEEE 802.3
Hardware Certifications		FCC B, UL, CE, VCI, BSMI, CTICK, MIC
LEDs		2 (1/port,) Link (solid) and Activity (blinking) Link Speed (green = 10G / yellow = 1G)
*Brackets 2**		Includes a full-height bracket and a low profile bracket.
Air Flow		Minimum of 100 LFM required
Typical power consumption		Maximum 10.7 W		Typical 10.0 W
Environment Standard			Physical Dimensions
Operating Temperature	0°C~55°C		Length	14.8 cm (5.83 in)
Operating Humidity	90%		Width	6.8cm (2.68 in)
Stoke Temperature	-40°C~70°C		Height of Brackets	12.0cm/8cm (4.72 in/3.15in)
Stoke Humidity	90%		Packing Standard Size (Unit)	20cm15cm4.5cm (7.87in5.91in1.77in)

Features and Benefits of 10 Gigabit Dual Port Server Adapter X520

Features	Benefits
Intel 82599 10 Gigabit Ethernet Controller	Industry-leading, energy-efficient design for next-generation 10 Gigabit performance and multi-core processors
Low-profile	Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers
Load balancing on multiple CPUs	Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling (RSS) from Microsoft or Scalable I/O on Linux*
iSCSI remote boot support	Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions
Support for most network operating systems (NOS)	Enables widespread deployment
RoHS-compliant	Complies with the European Union directive 2002/95/EC to reduce the use of hazardous materials
Intel PROSet Utility for *Windows Device Manager**	Provides point-and-click management of individual adapters, advanced adapter features, connection teaming, and virtual local area network (VLAN) configuration
Time Sync (IEEE 1588, 802.1as)	Lets networked Ethernet equipment synchronize internal clocks according to a network master clock; endpoint can then acquire an accurate estimate of the master time by compensating for link latency
Plug and play support	Standard
Receive Side Scaling	Multiple Rx queues enable the efficient distribution of network receive processing across multiple CPUs in multiprocessor systems
Direct Cache Access (DCA)	The I/O device activates a pre-fetch engine in the CPU that loads the data into the CPU cache ahead of time, before use, eliminating cache misses and reducing CPU load
Product backing	Backed by EDNSE limited lifetime warranty, 3-months replacement guarantee, and 3-years global services warranty, and worldwide support.

Advanced Software Features
Adapter fault tolerance (AFT)		Adaptive load balancing (ALB)
Switch fault tolerance (SFT)		Teaming support
Test switch configuration		*PCIe Hot Plug/Active**
*IEEE 802.1Q VLANs**		IEEE 802.3ad (link aggregation control protocol)
*IEEE 802.3 2005 flow control support**		IEEE 1588 Precision Time Control Protocol
IEEE 802.1p*		Interrupt moderation
TCP segmentation/large send offload		MSI-X supports Multiple Independent Queues
Tx/Rx IP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities		IPv6 offloading--Checksum and segmentation capability extended to new standard packet type
