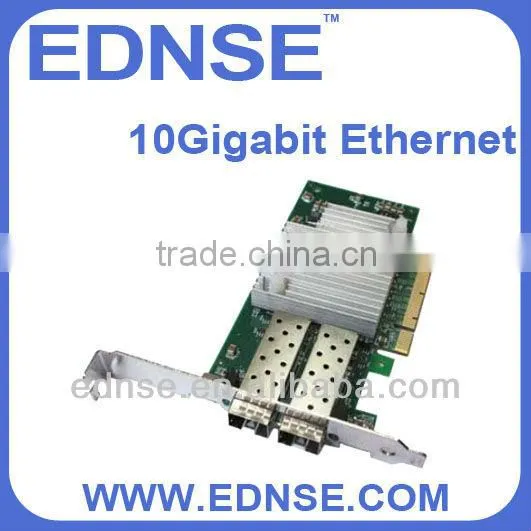

EDNSE Server Adapter Card 10Gigabit Ethernet Network Interface Card SFP+ Slots*2

EDNSE Server Adapter Card 10Gigabit Ethernet Network Interface Card SFP+ Slots*2 thumbnail-1
EDNSE Server Adapter Card 10Gigabit Ethernet Network Interface Card SFP+ Slots*2 photo-1
Negotiable MOQ: 200 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Server
Type:
Wired
Contact Supplier Request Quote Chat Now
DENESE (Dongguan) Computer Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Server
Type Wired
Kind Internal
Transmission Rate Other, 1 GbE/10 GbE
Interface Type Other, SFP
Certification FCC B, UL, CE, VCI, BSMI, CTICK, MIC
Brand Name EDNSE
Model Number 10Gigabit Ethernet
Place of Origin Guangdong, China

Specifications

EDNSE server adapter card 10Gigabit Ethernet
1.Optimized for virtualized environments;

General and Technical Features
Manufacturer Product Name
EDNSE 10 Gigabit Ethernet Dual Port Server Adapter X520 SFP+
2
Product Code
10G2BF-SFP+
Form Factor
Internal-connected with Intel Xeon 5500 series processor servers
Controller-Processor
Intel 82599ES*1
Bus Type
PCI Express 2.0(5GT/s)
Bus Width
x8 lane PCI Express,operable in x8 and x16 slots
Bus Speed (x8, encoded rate)
20 Gbps uni-directional; 40 Gbps bi-directional
Network Interface Type
SFP+ Slots *2, two LC fiber-optic connectors
Direct Attach cables
Data Rate(s) Supported
Optical: 1 GbE/10 GbE
Direct Attach: 10 GbE per port
Network Standards
Physical Layer Interface
10GBASE-LR
10GBASE-SR
IEEE Network Standards
IEEE 802.3
Hardware Certifications
FCC B, UL, CE, VCI, BSMI, CTICK, MIC
LEDs
2 (1/port,) Link (solid) and Activity (blinking)
Link Speed (green = 10G / yellow = 1G)
Brackets *2
Includes a full-height bracket and a low profile bracket.
Air Flow
Minimum of 100 LFM required
Typical power consumption
Maximum 10.7 W
Typical 10.0 W
Environment Standard
Physical Dimensions
Operating Temperature
0°C~55°C
Length
14.8 cm (5.83 in)
Operating Humidity
90%
Width
6.8cm (2.68 in)
Stoke Temperature
-40°C~70°C
Height of Brackets
12.0cm/8cm (4.72 in/3.15in)
Stoke Humidity
90%
Packing Standard
Size (Unit)
20cm*15cm*4.5cm
(7.87in*5.91in*1.77in)


Features and Benefits of 10 Gigabit Dual Port Server Adapter X520
Features
Benefits
Intel 82599 10 Gigabit
Ethernet Controller
Industry-leading, energy-efficient design for next-generation 10 Gigabit
performance and multi-core processors
Low-profile
Enables higher bandwidth and throughput from standard and low-profile PCIe
slots and servers
Load balancing on
multiple CPUs
Increases performance on multi-processor systems by efficiently balancing
network loads across CPU cores when used with Receive-Side Scaling (RSS)
from Microsoft or Scalable I/O on Linux*
iSCSI remote boot support
Provides centralized storage area network (SAN) management at a lower cost
than other iSCSI solutions
Support for most network
operating systems (NOS)
Enables widespread deployment
RoHS-compliant
Complies with the European Union directive 2002/95/EC to reduce the use of
hazardous materials
Intel PROSet Utility for
Windows* Device Manager
Provides point-and-click management of individual adapters, advanced adapter
features, connection teaming, and virtual local area network (VLAN) configuration
Time Sync (IEEE 1588,
802.1as)
Lets networked Ethernet equipment synchronize internal clocks according to a
network master clock; endpoint can then acquire an accurate estimate of the
master time by compensating for link latency
Plug and play support
Standard
Receive Side Scaling
Multiple Rx queues enable the efficient distribution of network receive processing
across multiple CPUs in multiprocessor systems
Direct Cache Access
(DCA)
The I/O device activates a pre-fetch engine in the CPU that loads the data into the
CPU cache ahead of time, before use, eliminating cache misses and reducing
CPU load
Product backing
Backed by EDNSE limited lifetime warranty, 3-months replacement guarantee,
and 3-years global services warranty, and worldwide support.
Advanced Software Features
Adapter fault tolerance (AFT)
Adaptive load balancing (ALB)
Switch fault tolerance (SFT)
Teaming support
Test switch configuration
PCIe Hot Plug*/Active
IEEE 802.1Q* VLANs
IEEE 802.3ad (link aggregation control protocol)
IEEE 802.3 2005* flow control support
IEEE 1588 Precision Time Control Protocol
IEEE 802.1p*
Interrupt moderation
TCP segmentation/large send offload
MSI-X supports Multiple Independent Queues
Tx/Rx IP, TCP, and UDP checksum offloading (IPv4,
IPv6) capabilities
IPv6 offloading--Checksum and segmentation capability
extended to new standard packet type





Whole rendering

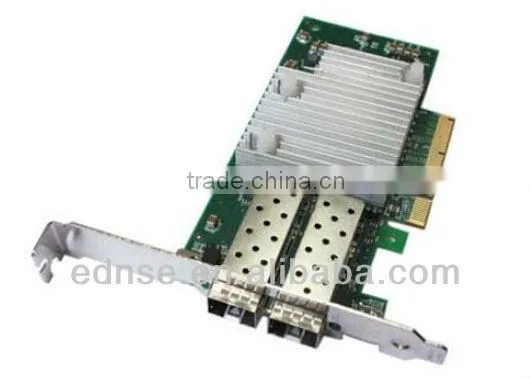

EDNSE server adapter card 10Gigabit Ethernet Network interface card SFP+ Slots*2
