ED102H65EDNSE 2 HDD Bays 1U Server Chassis Rackmount Server Case
Negotiable
/ Unit
1 Unit(Min. Order)
- Shenzhen/HK
- T/T L/C D/P D/A
You May Like
Product Details
| Products Status | Stock | Application | Server | |
| Type | Rack | Form Factor | ATX | |
| Material | Steel | Style | With Fan | |
| Front Ports | USB | Brand Name | EDNSE | |
| Model Number | ED102H65 | Place of Origin | Guangdong, China |
Product Description
Features & Benefits
1.1U 650mm depth, ideal for IDC/High Perfromance Computing Server
2.Support Extended (12"x13"),(12"x10.5"),(12"x9.6") M/B
3.Support Standard ATX power/1U Redundant power
4.Optional front VGA port for on-site monitoring
5.Modular design in HDD cage/front fan/backplane for easy maintenance
6.Fully utilized space to support 4x3.5"HDD,2x2.5"HDD,1xSlim-DVD
1.1U 650mm depth, ideal for IDC/High Perfromance Computing Server
2.Support Extended (12"x13"),(12"x10.5"),(12"x9.6") M/B
3.Support Standard ATX power/1U Redundant power
4.Optional front VGA port for on-site monitoring
5.Modular design in HDD cage/front fan/backplane for easy maintenance
6.Fully utilized space to support 4x3.5"HDD,2x2.5"HDD,1xSlim-DVD

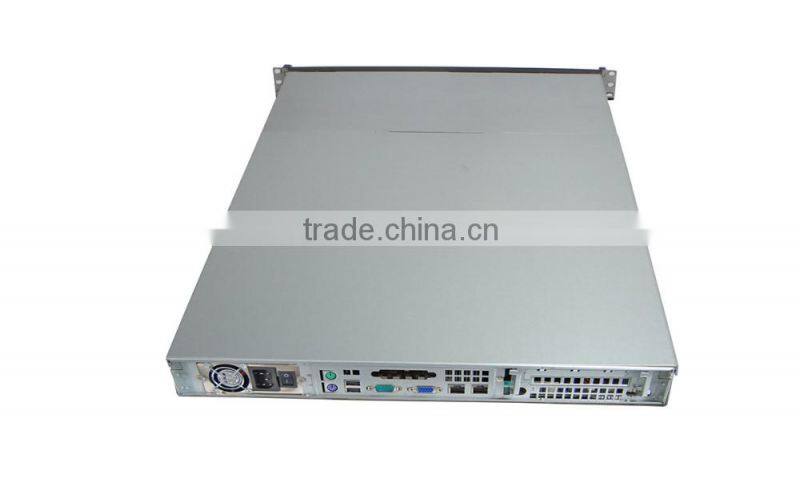

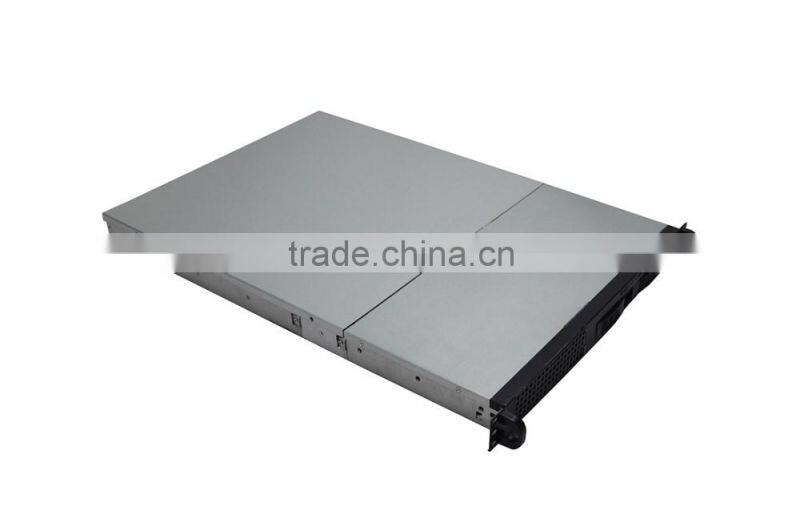

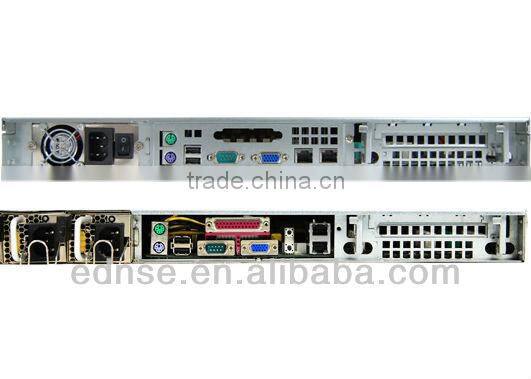

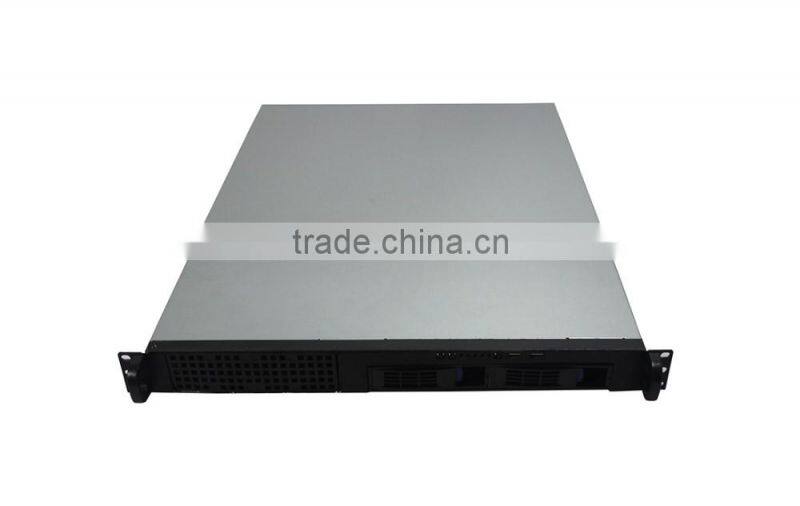

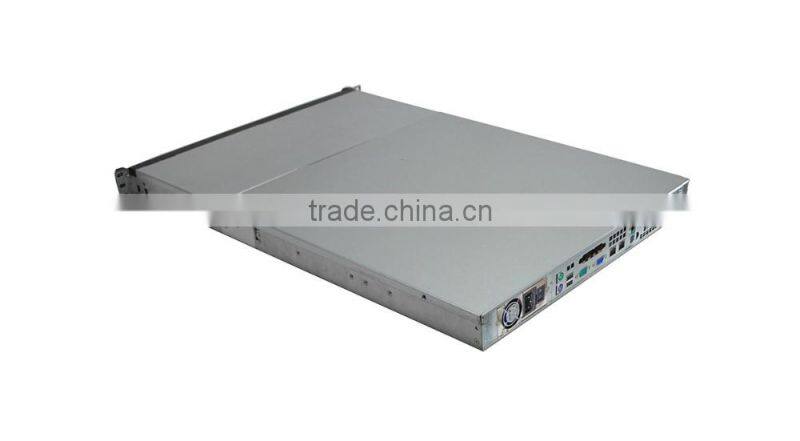

ED102H65 EDNSE 2 HDD bays 1U server chassis rackmount server case
Specification | |||
Order Code | Generality | ||
ED102H65 | Metal Material | SGCC | |
Description | Metal Thickness | 1.2 mm | |
1U 650mm depth,Hot-swap 2x3.5"HDD,2x2.5"HDD,1xSlim-DVD | Metal Material Type | ABS | |
Expansion Slots | |||
M/B Form Factor | FF | 2 | |
(12"x13"),(12"x10.5"),(12"x9.6") | System Cooling(Shockproof) | ||

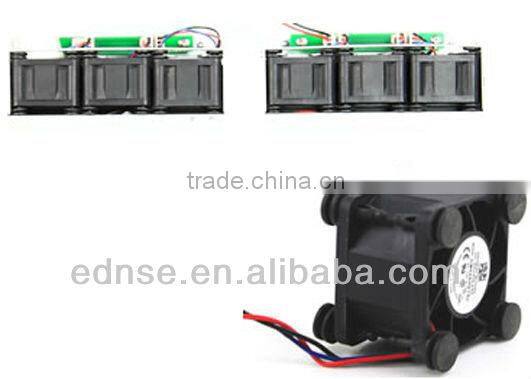

Processor | Middle | 6 x 4028 mm PWN | |
DP Xeon(Intel),DP Opteron(AMD) | Rear | ||
Core(Intel) | Rear Window | ||

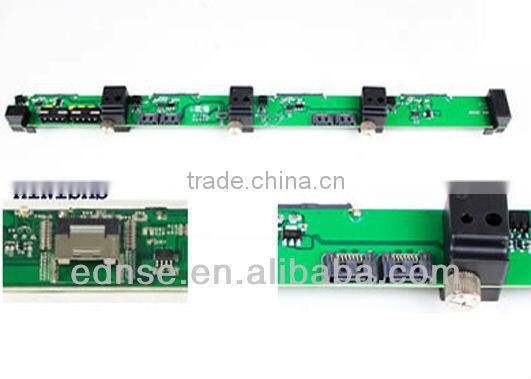

Support Backplane | Standard | ||
Sata Ⅱ/Sas or minisas | Front Panel | ||
Chassis Dimension | Front Control | Power On/Off | |
D x W x H (mm) | 650X430X44 | System Reset | |
D x W x H (inch) | 25.6''x16.9x1.7'' | Alarm Reset | |
Drive Bay | Indicator | Power LED (x1) | |
Hot-Swap 3.5" and 2.5" | 2x3.5''HDD,2x2.5"HDD | HDD Activity LED (x1) | |
CD-ROM | 1 x Slim-DVD | LAN Activity LED (x2) | |
Fan / Power Failure LED | |||
Power Supply | Ports | USB3.0 x 2 | |
Standard ATX power/1U Redundant power | VGA ( option) | ||
Shipping Information* | |||
Net Weight (Chassis Only) | 7.5 Kg | ||
Gross Weight (w/Packing) | 9 Kg | ||
Cubit Feet | 0.085CBM | ||
Container Information | 20' : 329pcs | ||
40' : 729pcs | |||
40'H : 823pcs | |||

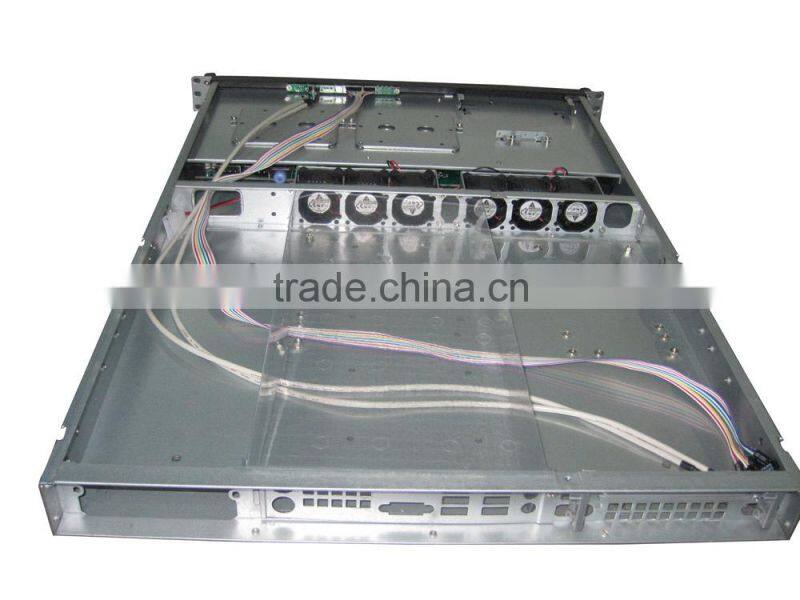

Vertical view

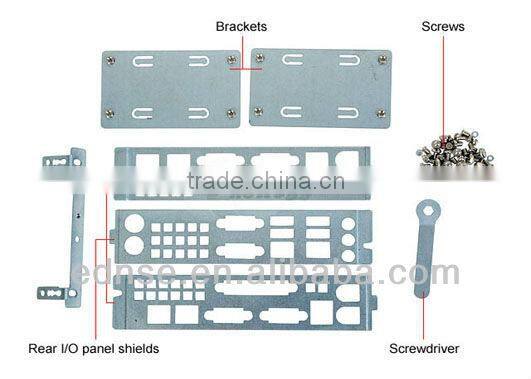

Accessories display chart
