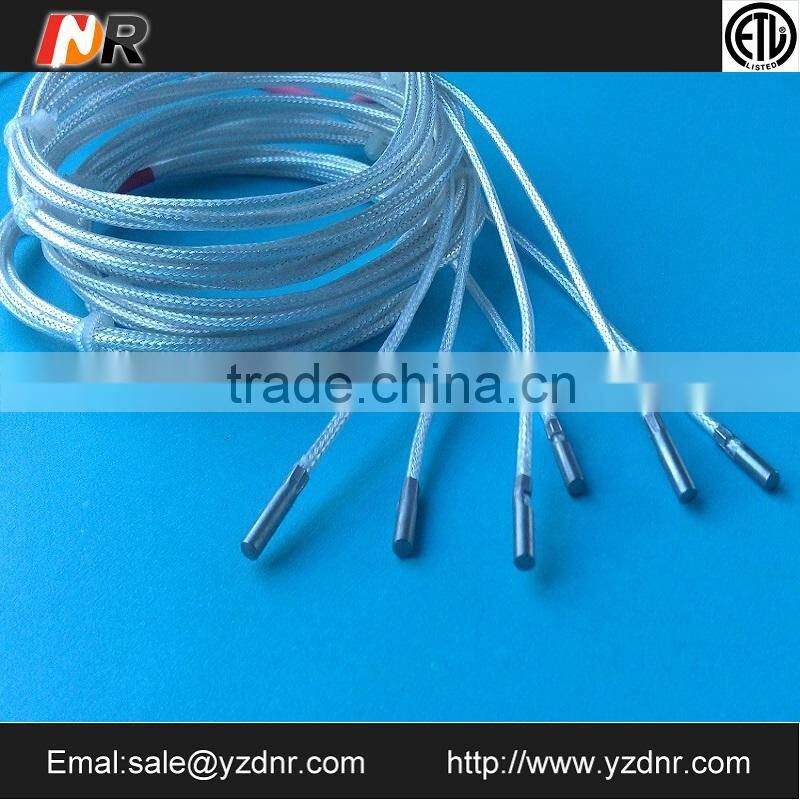

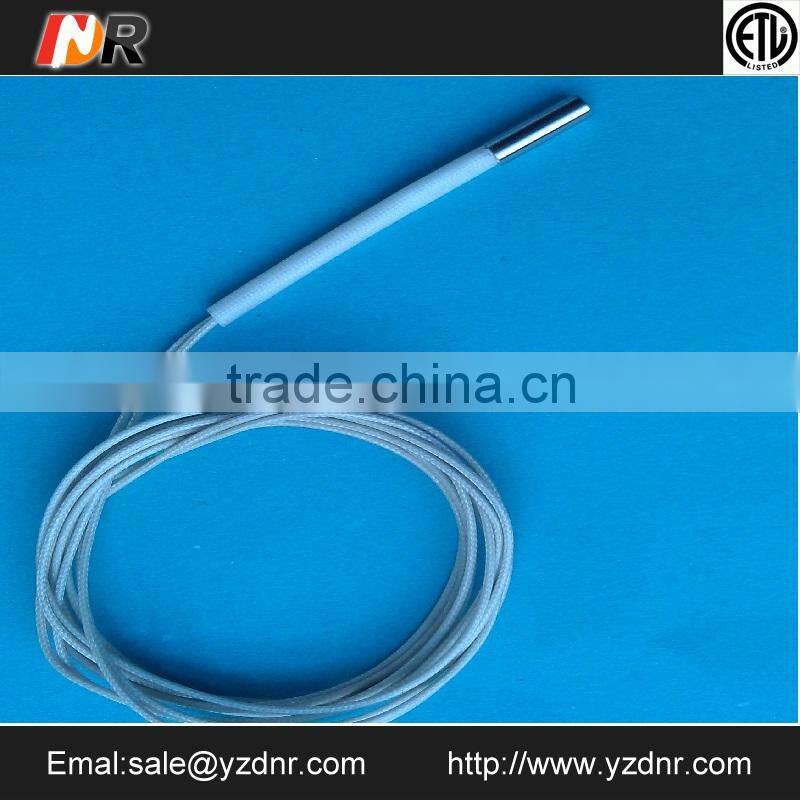

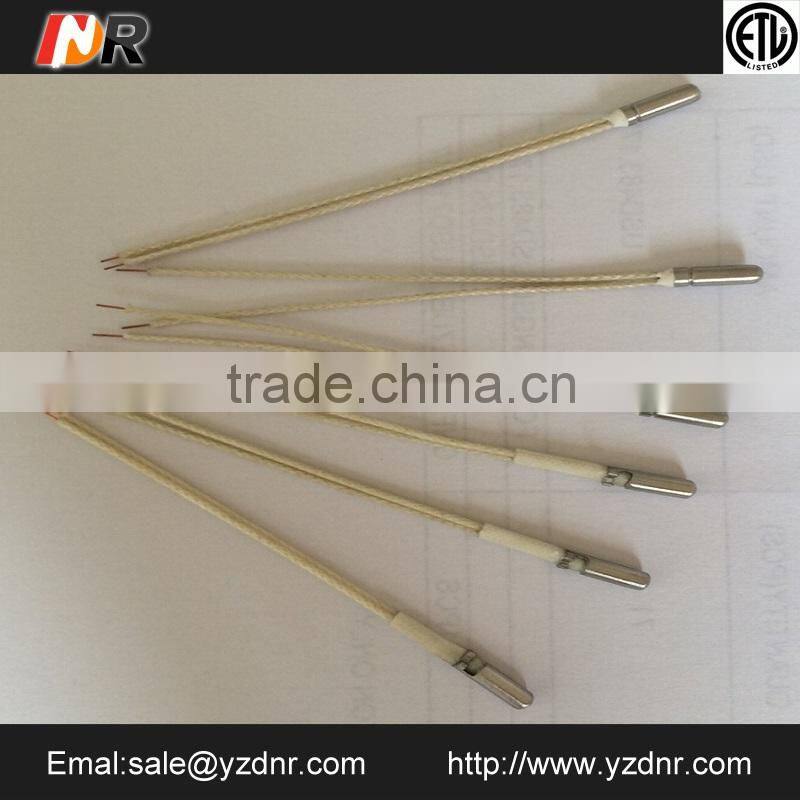

3mm cartridge heater for the 3d printer

TECHNICAL DATA:

• Sheath material: stainless steel ss304/316/321

• Heating resistance wire:Cr20Ni80
• Working temperature: max 700°C
• Diameter range (mm):2mm-30mm
• Length range (mm):15mm-3000mm
• Diameter tolerance: metric -0.02/-0.06mm
• Length tolerance: ±1mm
• Power tolerance: +5%,-10%
• Rated voltage (110-220):max1.27 times
• Insulation resistance: min5Ω
• With(and voltage:1500v/min)
• Designed life:3000 hours
• Power density:
1)  -heating in mold: 45w/cm2(max)
2) -heating in water: 67w/cm2(max)
3) -heating in static air: 10w/cm2(max)
4)  -heating in flowing air: 18w/cm2(max)
5) Wire lead: fiberglass

Supply the best solution for your request,OEM, technical supporting

 Delivery by express,air or sea.

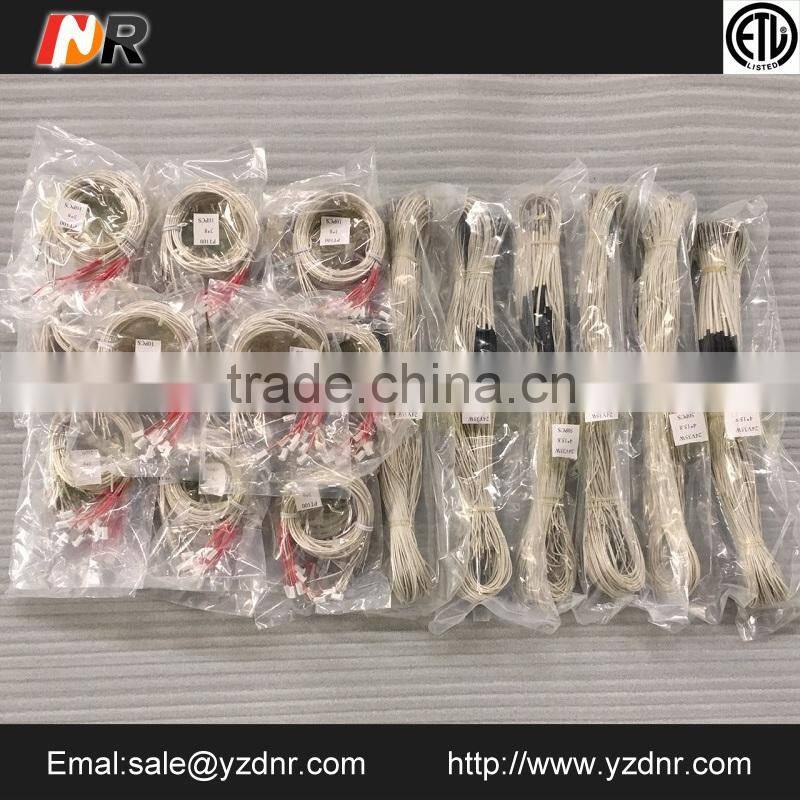

Outside packing with carton or wooden case,inside with plastic bags
