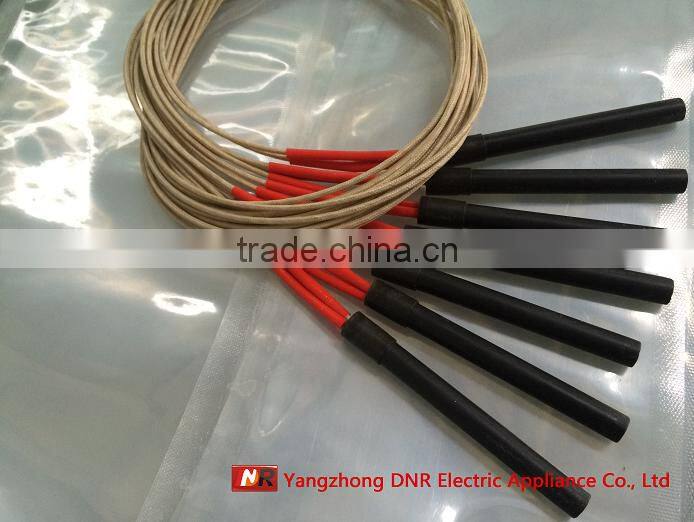

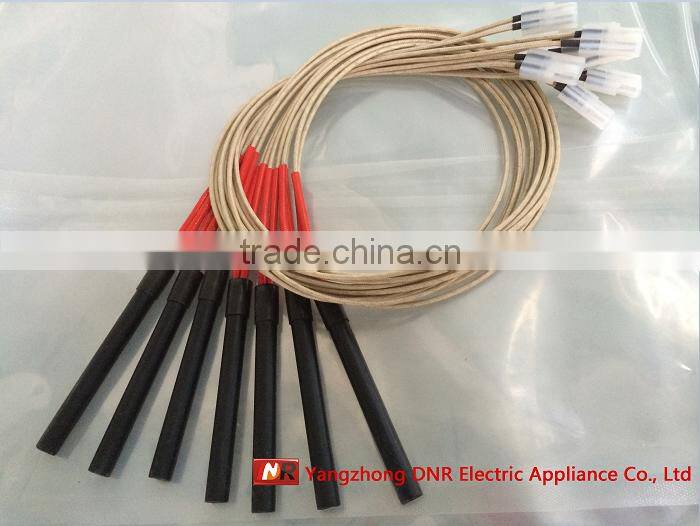

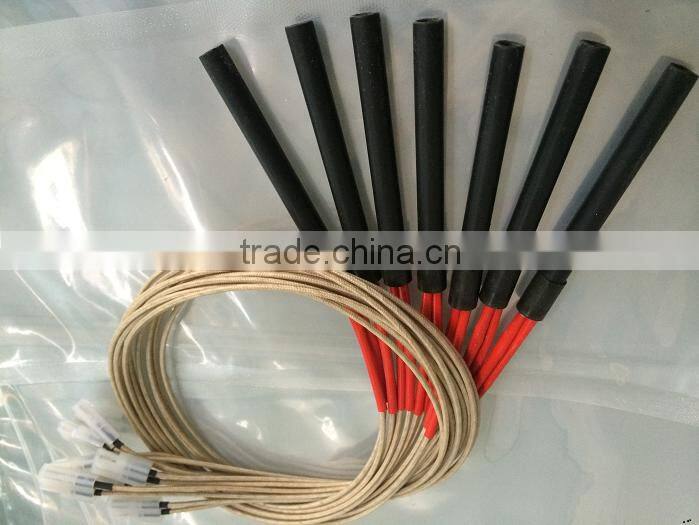

high watt density black cartridge heater

  • Sheath material: stainless steel ss304/316/321
• Heating resistance wire:Cr20Ni80
• Working temperature: max 700°C
• Diameter range (mm):2.6mm-30mm
• Length range (mm):15mm-3000mm
• Diameter tolerance: metric -0.02/-0.06mm
• Length tolerance: ±1mm
• Power tolerance: +5%,-10%
• Rated voltage (110-220):max1.27 times
• Insulation resistance: min5Ω
• With(and voltage:1500v/min)
• Designed life:3000 hours
• Power density:
1)  -heating in mold: 45w/cm2(max)
2) -heating in water: 67w/cm2(max)
3) -heating in static air: 10w/cm2(max)
4)  -heating in flowing air: 18w/cm2(max)
5) Wire lead: fiberglass

Supply the best solution for your request,OEM, technical supporting

 Delivery by express,air or sea.

Outside packing with carton or wooden case,inside with plastic bags

  YANGZHONG DINGNUOER ELECTRIC APPLIANCE CO., LTD.(short for DNR next), founded in 2005, is a high-tech industry integrated the production and operation.Mainly engaged in the research and development of non-standard electric heating elements.specialize on the high power density, high temperature environment, ultrahigh life-span products.
