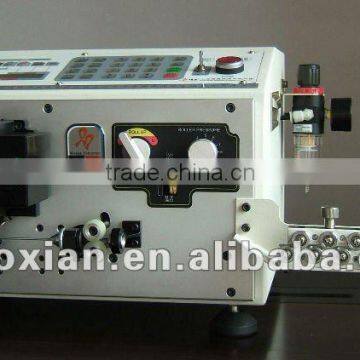

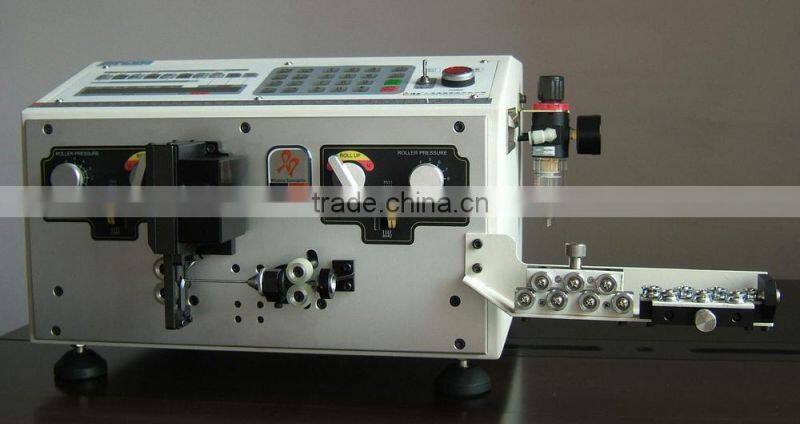

Computerized Wire Stripping and Cutting Machine BX-C2A
US$ 3,000 - 5,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BOXIAN/Wisdom
Model Number:
BX-C2A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Computerized Wire Stripping and Cutting Machine BX-C2ANegotiableMOQ: 1 Piece -
Computerized Wire Stripping and Cutting Machine BX-C1ATNegotiableMOQ: 1 Piece
-
Computerized Wire Stripping and Cutting Machine BX-C8A-DBNegotiableMOQ: 1 Piece
-
Computerized Wire Stripping Machine BX-C2AHUS$ 3,000 - 5,000MOQ: 1 Piece
-
Computerized Wire Stripping and Cutting Machine BX-C3ANegotiableMOQ: 1 Piece
Place of Origin
Shanghai, China
Brand Name
BOXIAN/Wisdom
Model Number
BX-C2A
Usage
Stripping
- Outcome of the WISDOM enterprises research and new high-tech development
- The BX- C2A is especially designed for stripping short and thin wire, which can cover a range of wire size: AWG#36 to #18. It is currently the leading machines in the field of processing thin wire in china.
- It greatly improves wire cutting accuracy by using fine tuning to adjust the gap press between the two rollers. The measurement correction feature resolves the inconsistent length problem between processed length and the displayed length, due to various affecting factors.
- Unique advanced method to set the blade rest floating datum mark through setting on the keyboard dynamically, which avoids the complicated machine knife position adjustment.
- It is filled with different processing functions, such as cutting, full-stripping, semi-stripping, core removing etc.
- Maximum safety has been secured by an automatic stop function and establishing the heat-protection device guarantees the machine work stably.
MODEL |
BX-C2A |
OUTER DIMENSIONS |
W430*D400*H260 |
WEIGHT |
34KG |
POWER SUPPLY |
AC220V 50Hz/AC110V 60Hz |
POWER CONSUSUMPTION |
The static 100 W, circulate260 W |
CUTTING LENGTH |
0.1-99999mm |
CUTTING TOLERANCES |
±(0.1+0.001* L) mm |
STRIPPING LENGTH |
Front 0.1-12mm,End 0.1-30mm |
WIRES SIZE |
AWG#18-AWG#36 |
APPLICABLE TYPE |
VSF, IV, KV, TEFLON, GLASS WIRE |
PROCESSING CAPACITY |
92PCS/MIN(L=100mm,A=B=3mm) |
