Computerized Wire Stripping Machine BX-C2AH

Computerized Wire Stripping Machine BX-C2AH photo-1

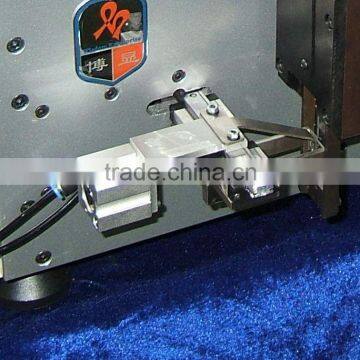

Computerized Wire Stripping Machine BX-C2AH photo-2

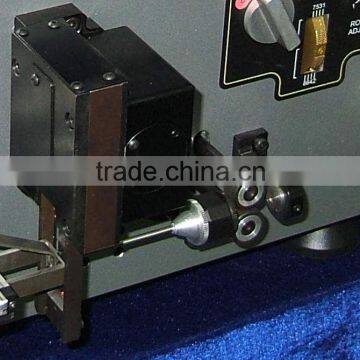

Computerized Wire Stripping Machine BX-C2AH photo-3

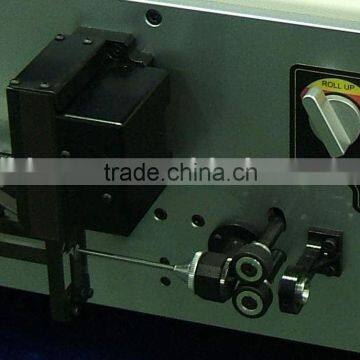

Computerized Wire Stripping Machine BX-C2AH photo-4

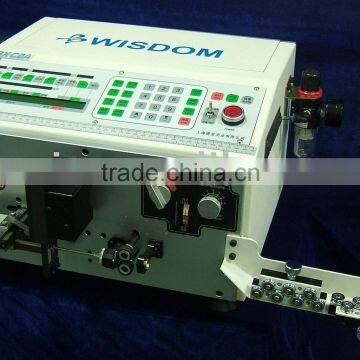

Computerized Wire Stripping Machine BX-C2AH photo-5
Computerized Wire Stripping Machine BX-C2AH photo-6
US$ 3,000 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BOXIAN/Wisdom
Model Number:
BX-C2AH
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name BOXIAN/Wisdom
Model Number BX-C2AH
Usage Stripping

Specifications

The BX- C2AH is especially designed for stripping machine
Superfine&UltraShort wire,
a range of wire size: AWG#36 to#2

  • Outcome of the WISDOM enterprises research and new high-tech development
  • The BX- C2AH stripping machine is especially designed for stripping short and thin wire, which can cover a range of wire size: AWG#36 to #26. It is currently the leading machines in the field of processing thin wire in china.
  • It greatly improves wire cutting accuracy by using fine tuning to adjust the gap press between the two rollers. The measurement correction feature resolves the inconsistent length problem between processed length and the displayed length, due to various affecting factors.
  • It is filled with different processing functions, such as cutting, full-stripping, semi-stripping, core removing etc



MODEL

BX-C2AH

OUTER DIMENSIONS

W430*D400*H260

WEIGHT

34KG

POWER SUPPLY

AC220V 50Hz/AC110V 60Hz

POWER CONSUSUMPTION

The static 100 W, circulate260 W

CUTTING LENGTH

0.1-99999mm

CUTTING TOLERANCES

±(0.1+0.001* L) mm

STRIPPING LENGTH

Front 0.1-12mm,End 0.1-12mm

WIRES SIZE

AWG#26-AWG#36(0.13mm2~0.013mm2)

APPLICABLE TYPE

VSF, IV, KV, TEFLON, GLASS WIRE

PROCESSING CAPACITY

78PCS/MIN(L=100mm,A=B=3mm)
