Computerized Wire Stripping and Cutting Machine BX-CF5A

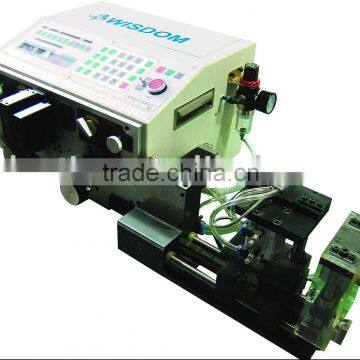

Computerized Wire Stripping and Cutting Machine BX-CF5A photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BOXIAN/Wisdom
Model Number:
BX-CF5A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name BOXIAN/Wisdom
Model Number BX-CF5A
Usage Stripping

Specifications

BX-CF5A is the machine specially designed for flat cable processing. it can divide Cut&Strip a flat cable up to 30mm in width.

  • BX-CF5A is the machine specially designed for flat cable processing. Since BX-CF5A inherits powerfulness from BX-C5A, it can process a flat cable up to 30mm in width. It covers not only a flat cable processing, but also ribbon cable processing widely. It is superior in performance, safety operation and convenience.
  • Unique advanced method to set the blade rest floating datum mark through setting on the keyboard dynamically, which avoids the complicated machine knife position adjustment.
  • Clear large size LCD panel show more parameter data (40*2 characters) at the same time.
  • This machine contains the automatic protection function that prevents data from loss in case of power down.
  •  Both speeds of wire feeding and cutting blades can be regulated respectively. The available adjustable speeds are from step 0 to step 9.
  • Contain heat-protection device in side to guarantee the machine work stably.



MODEL

BX-CF5A

OUTER DIMENSIONS

W780*D400*H260

WEIGHT

38KG

POWER SUPPLY

AC220V 50Hz/AC110V 60Hz

POWER CONSUSUMPTION

The static 100 W, circulate320 W

CUTTING LENGTH

0.2-99999mm

CUTTING TOLERANCES

±(0.2+0.002* L) mm

STRIPPING LENGTH

0.2-39mm

WIRES SIZE

<30mm

DIVIDING  LENGTH

1~99mm

DIVIDING  ACCURACY

±1mm

APPLICABLE TYPE

VSF, IV, KV, TEFLON, GLASS WIRE

PROCESSING CAPACITY

50PCS/MIN(L=100mm,A=B=3mmE=F=10mm)
