Home > Products > Screw base fuse > D D02 D03 cylindrical fuse link(1P,2P,3P)

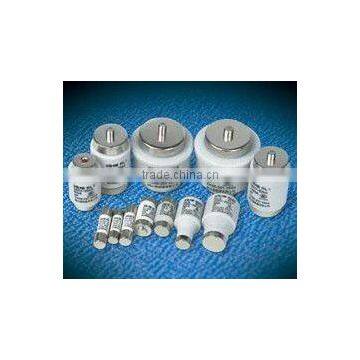

D D02 D03 cylindrical fuse link(1P,2P,3P)
USD $0.2 - $5
/ Piece
5000 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Yinda | |
| Model Number | R0,RS,RL D series | Usage | Low Voltage | |
| Breaking Capacity | High | Safety Standards | IEC |
Product Description
Specifications
1.more than 15 years history2.AC 50Hz,rated voltage to 1140V,rated current to 630A
3.OEM
material
ceramic
quartz sand
silver/copper wire/sheet
copper cap
Type | Size | Rated Current (A) | Fuse Holders |
RO14 | 8.5X31.5 | 0.5,1.3,4,6,8,10,12,16 | RT19-16D |
RO15 | 10X38 | 2,3,4,6,8,10,12,16,20,25,32 | RT14-20 RT18-32(X), 1/2/3P RT19-32 |
RO16 | 14X51 | 10,12,16,20,25,32,40,50,63 | RT14-32 RT18-63(X), 1/2/3P RT19-63 |
RO17 | 22X58 | 16,20,25,32,40,50,63,80,100,125 | RT14-63 RT19-125 |
Type |
Rated current(A)
| Rated voltage(V) |
E16-DI R024 (27.28.29) E16 3P |
2 4 6 10 16 20 25 | ~500 |
E27-DII RL6-25 (R021) | 2 4 6 10 16 20 25 | ~500 |
| E33-/D III RL6-63 (R022) | 35 50 63 | ~500 |
| E27/RL6-25 3P E33/RL6-63 3P | 2 4 6 10 16 20 25 35 50 63 | ~380 |
| E14(D01 R026) E18(D02 R026) | 2 4 6 10 16 20 25 35 50 63 | ~380 |
| E14(D01 R026)3P E18(D02 R026)3P | 2 4 6 10 16 20 25 35 50 63 | ~380 |
