Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > Untral Slim SMD 5630 39W Dimmable Led Panel 60x60 With CE and 3 Years Warranty

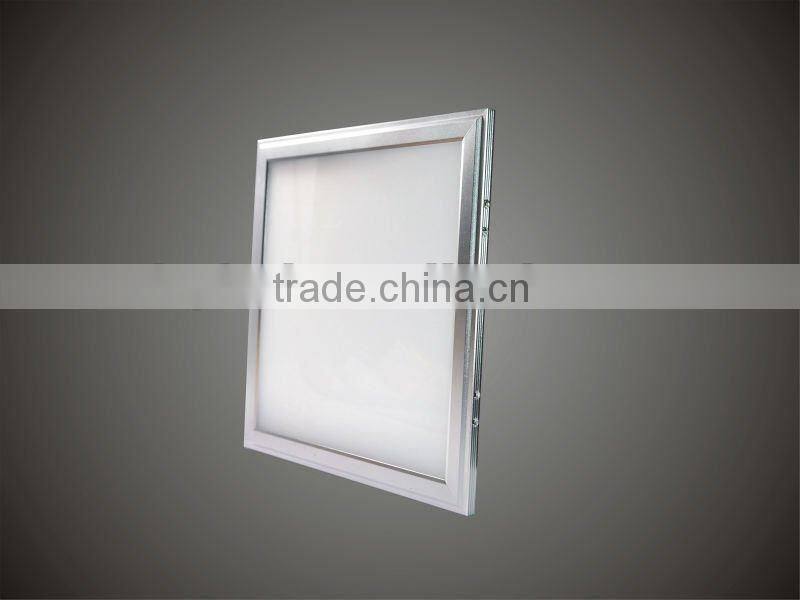

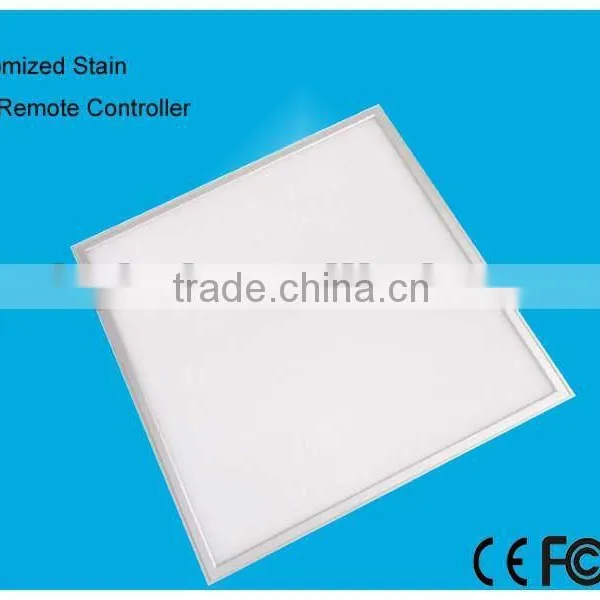

Untral Slim SMD 5630 39W Dimmable Led Panel 60x60 With CE and 3 Years Warranty

Name: Untral Slim SMD 5630 39W Dimmable Led Panel 60x60 With CE and 3 Years Warranty
Brand: KINGS
SKU: 134615693
Availability: InStock

Untral Slim SMD 5630 39W Dimmable Led Panel 60x60 With CE and 3 Years Warranty thumbnail-1

Untral Slim SMD 5630 39W Dimmable Led Panel 60x60 With CE and 3 Years Warranty photo-1

US$ 50 - 70 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

SMD 5630

Warranty(Years):

Input Voltage(V):

AC 100-240V

Contact Supplier Request Quote Chat Now

Shenzhen Huagao Optoelectronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD 5630

Warranty(Years) 3

Input Voltage(V) AC 100-240V

Lamp Power(W) 39

Lamp Luminous Flux(lm) 2700±10%LM

Lamp Luminous Efficiency(lm/w) 69.2

Color Temperature(CCT) Pure White

Working Temperature(℃) -20, +40

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating Other, IP20

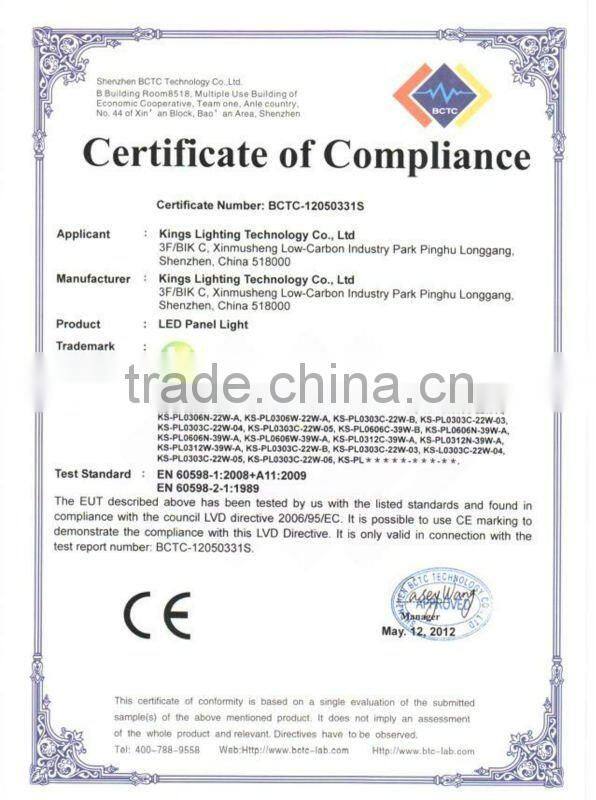

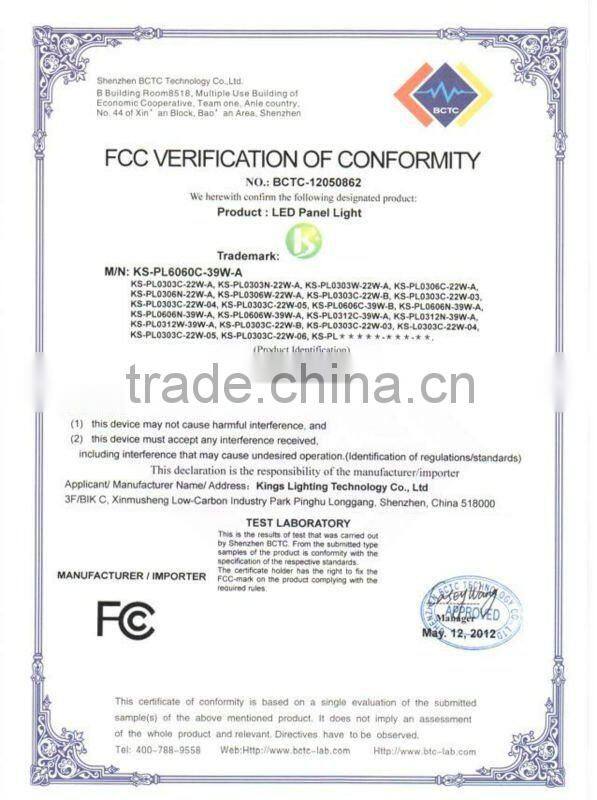

Certification CE, EMC, FCC, LVD, UL

Place of Origin Guangdong, China

Brand Name KINGS

Model Number KS-PL0606C-39W-A

Specifications

1.Super slim,easy to install and no maintenance
2.50,000 hours lifespan
3.3years warranty
4.Certificate:CE, RoHS, FCC,BV

Specificatipn:

Model	Color Temp	LED Q'ty	CRI	Luminous	Beam Angle	Power	PF	Eficiency
KS-PL0606C-39W-A	5500-7000K	96	>70	2700±10%	160°	39w	≥0.90	≥85%
KS-PL0606N-39W-A	2800-5000K	96	>65	2550±10%	160°	39w	≥0.90	≥85%
KS-PL0606W-39W-A	2700-3500K	96	>60	2400±10%	160°	39w	≥0.90	≥85%

Features:

1. Advanced light guide technology can lower down flicker with sufficient and soft light, which can bring comfortable, sweet and cosy feeling

2. Super slim, easy to install and no maintenance

3. Energy saveing up to 50%. high intensity

4. High efficiency (95%) with heat protection system, the constant current driver can work under unstable voltage

5. The beam angle is larger than 140°, 5w can replace of 50W traditional incandescent light

6. High efficiency light guide materials, anti-age, no turning yellow after long time working, clean and easy to clear

7. High lightness LED light source, high CRI

8. Insect protection

9. Professional LED power driver, high stability

10. RGB, red, green, blue color is available

11. Dimmable or non-dimmable is available

12. Three years warranty

Application:

(widely used in Hotels, Conference/ Meeting rooms, Commercial Purposes, Residential/ Insititution Buildings, Schools, Clooeges& University, Hospital, Factories& Offices)
