New design dimmable high brightness led aluminium panel light

Specifications

1.aluminium panel light
2.Super slim, easy installation;
3.Customized stain;
4.3 years warranty;
5.manufacturer

aluminium panel light



SpecificatiOn:

Model	Color Temp	LED Q'ty	CRI	Luminous	Beam Angle	Power	PF	Eficiency
KS-PL0303C-20W-A	5500-6500K	48	>70	1500±10%	160°	20w	≥0.90	≥85%
KS-PL0303N-20W-A	2800-5000K	48	>65	1400±10%	160°	20w	≥0.90	≥85%
KS-PL0303W-20W-A	2700-3500K	48	>60	1300±10%	160°	20w	≥0.90	≥85%



Features:



1. Advanced light guide technology can lower down flicker with sufficient and soft light, which can bring comfortable,  and cosy feeling

2. Super slim, easy to install and no maintenance

3. Energy saveing up to 50%. high intensity

4. High efficiency (95%) with heat protection system, the constant current driver can work under unstable voltage

5. The beam angle is larger than 140°, 5w can replace of 50W traditional incandescent light

6. High efficiency light guide materials, anti-age, no turning yellow after long time working, clean and easy to clear

7. High lightness LED light source, high CRI

8. Insect protection

9. Professional LED power driver, high stability

10. RGB, red, green, blue color is available

11. Dimmable or non-dimmable is available

12. Three years warranty

13. Customized stain 300*300 20w dimmable led panel lighting.

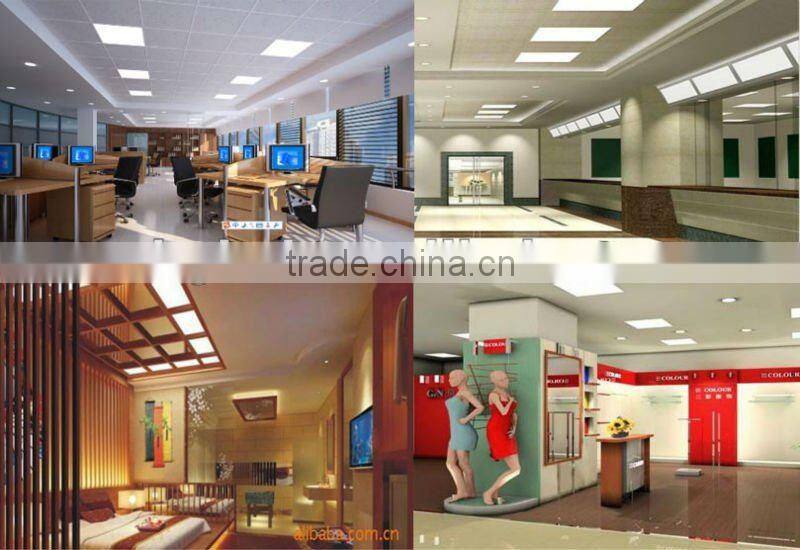

Application:



(widely used in Hotels, Conference/ Meeting rooms, Commercial Purposes, Residential/ Insititution Buildings, Schools, Clooeges& University, Hospital, Factories& Offices)







 About us



More details:



Certification

Dimension:



Electrical Connections:



Installation:



    aluminium panel light
