Help CenterFilling Machine
US$ 10,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HY
Model Number:
CGF
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bottle Unscrambler 20000BPHUS$ 10,000 - 100,000MOQ: 1 Set -
5L Water Filling MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
5L Automatic Water Filling MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
CGF Pure Water/Mineral Water Filling MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
0.2-2L Plastic Bottle UnscramblerUS$ 10,000 - 100,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HY
Model Number
CGF
Specifications
filling machineused for washing ,filling,sealing non-carbonated drinks such as mineral water,pure water,wine drink.
filling machine
Product Description
This series of mineral water filling machine/water filling line are applied to the production of pure water, mineral water, with optional capacity from 3,000 to 24,000BPH
It integrates bottle washing, filling and capping in one machine. The mineral water filling machine/water filling line is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.
Product Feature
Advanced programmable PLC is equipped to control the main machine. Main electronic components are all from famous international enterprises. All spare parts that may touch with water are made from high-quality stainless steel.
Product Specification / Models

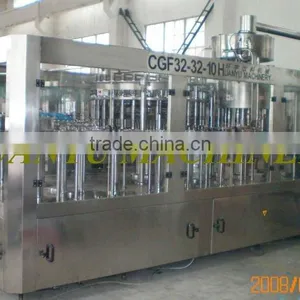

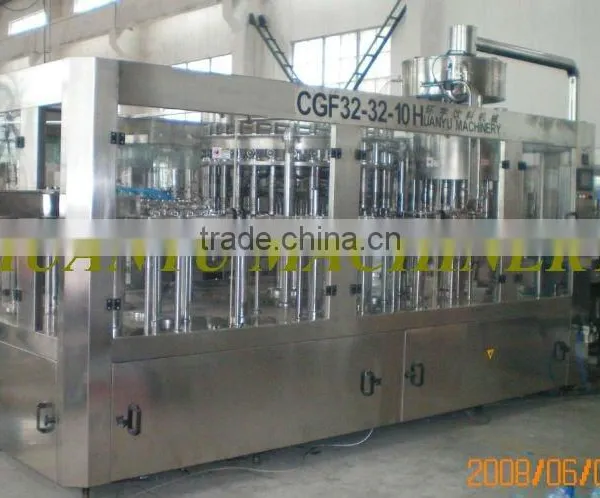

Model: CGF32-32-10
Production capacity: 8000-10000b/h (basis on 500ml bottle)
Filling precision: ±5mm(liquid level)
Polyester bottle specification: bottle diameter:φ50-φ100mm
bottle height: 150-320mm
Suitable cap type: plastic screw cap
Total power: 6.2kw
Overall dimension: 2650×2100×2200mm
Total weight: 6000kg
| Model: |
CGF16/12/6 | CGF16/16/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/10 |
| Production(500/m/bottle/h): | 3000 | 5000 | 8000 | 10000 | 12000-14000 |
| washing filling and capping heads | 16 12 6 | 16 16 6 | 18 18 6 | 24 24 8 | |
| Bottle size | Circular or square bottleBottle diameter(mm): Φ50-φ90 Bottle height(mm): 150-310 | ||||
| Compressed air pressure(MPa): | 0.3-0.7 | ||||
| Washing medium: | Aseptic water Washing | ||||
| waters pressure(MPa): | 0.25 | ||||
| Total output (KW): | 3.13 | 3.84 | 3.84 | 4.1 | 5.6 |
| Oerall dimensions(mm): | 2500x1500x2500 | 2500x1800x2500 | 3200x2200x2800 | 3400x2600x2800 | 3600x2800x3000 |
| Weight (kg): | 2500 | 3000 | 3500 | 4500 | 5000 |
