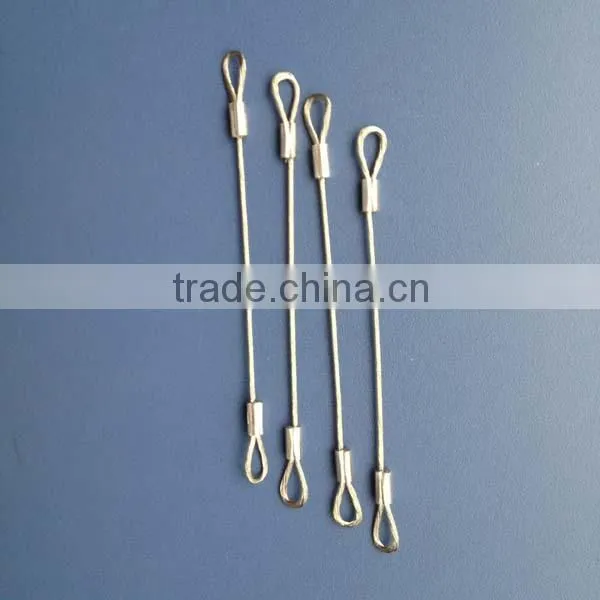

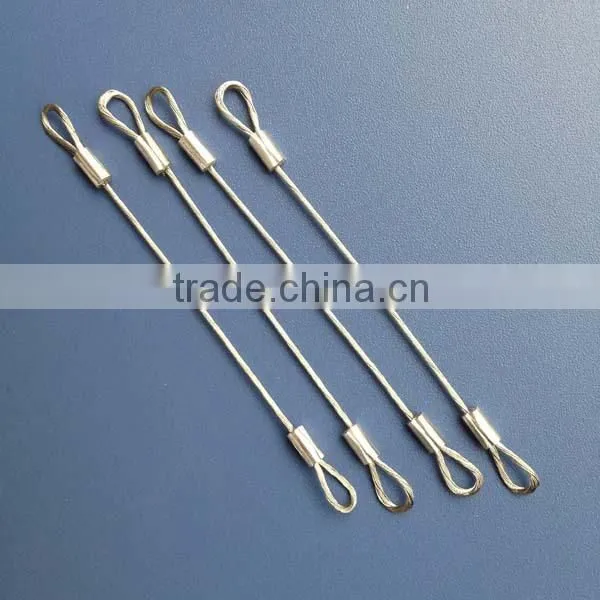

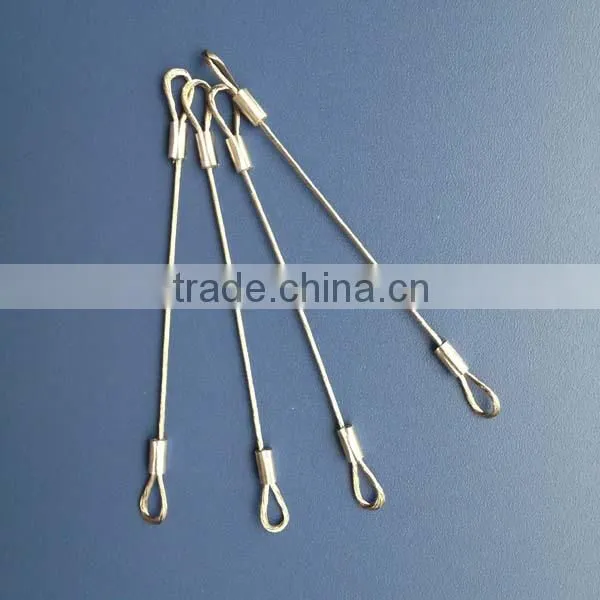

Help CenterNew Design 12mm Hot Dip Galvanized Steel Wire Rope Slings Made in China
Related Products
-
Eye & Eye Hot Dipped Galvanized Steel Wire Rope Made in ChinaNegotiableMOQ: 500 Pieces -
High Quality Wire Rope Sling With LoopNegotiableMOQ: 500 Sets
-
Wire Rope Lifting Slings/wire Rope SlingsUS$ 3 - 6MOQ: 500 Sets
-
Strong Wire Rope/Wire Rope Cargo Net SlingNegotiableMOQ: 2000 Pieces
-
Tennis Net Rope(supporting Rope)/sports CableNegotiableMOQ: 500 Sets
1.Diameter |
0.3-11mm or as requirement |
Custom-made available |
nstruction |
7X7,1*7,7*19,1*19,etc |
|
3.material |
stainless steel or galvanized steel or other |
|
4.MOQ |
500pcs |
|
| 5.length | as reuqirement | |
| 6.type | stainless steel wire rope slings | |
|
ating
|
PVC,PU,PE,nylon,etc |
|
8.end parts of fittings |
a large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc |
|
9.Lead time |
7days if there were enough material in stock |
|
10.sample |
Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution. |
|
application |
Lighting , Machinery, Medical, Security, Sporting Goods, Toys, Window , Lawn & Garden Etc. When designing a cable assembly, a number of factors need to be considered such as, work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be. WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings |
|
specification |
Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.
|
|
how to choose material:1stain1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
Diameter |
construction |
weight(100m) |
Minimum Breaking load(N) |
1.0mm |
1*19 |
0.495 |
950(95kg) |
|
7*7 |
0.393 |
650 (65kg) |
1.2mm |
1*19 |
0.713 |
1440(144kg) |
|
7*7 |
0.566 |
950(95kg) |
1.5mm |
1*19 |
1.114 |
2200(220kg) |
|
7*7 |
0.884 |
1500(150kg) |
1.8mm |
1*19 |
1.604 |
3200(320kg) |
|
7*7 |
1.273 |
2100(210kg) |
2.0mm |
1*19 |
1.98 |
3900(390kg) |
|
7*7 |
1.527 |
2650(265kg) |
2.4mm |
1*19 |
2.851 |
5650(565kg) |
|
7*7 |
2.264 |
3800(380)kg |
2.5mm |
1*19 |
3.094 |
6100(610kg) |
|
7*7 |
2.381 |
4100(410kg) |
3.2mm |
7*7 |
4.024 |
6850(685kg) |
|
7*19 |
3.901 |
6800(680kg) |
3.8mm |
7*19 |
5.675 |
9650(965kg) |
|
7*7 |
5.502 |
9600(960kg) |
4.0mm |
7*19 |
6.609 |
12500(1250kg) |
4.2mm |
7*7 |
6.933 |
13000(1300kg) |
4.5mm |
7*7 |
7.958 |
13500(1350kg) |
4.8mm |
7*19 |
8.778 |
15300(1530kg) |
6.0mm |
7*19 |
8.716 |
23900(2390kg) |
Applications:
Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools; |
Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; |
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |
Manufacturer's recommendations:
Do not use other than specified in the loading products.No more than the safe working load of the product.Don't use coated wire rope.Do not apply paint or other coating.Shall not apply to the lubricant.Don't use a lift.Keep the products clean
pany profile:
Dongguan City Guofeng Sports Equipment Fitting Co., Ltd is a professional wire assembly manufacture focus on research, development and selling. We can meet our customers' requirements by excellent R&D capability,advanced processing and testing equipment.
Products are mainly used in vehicle internal brakes, stalls, car rearview mirror, fuel pedal, mechanical and electronic drive control system settings. In addition, also be used for general industrial, for supporting, dragging and dropping hoists.
2.Export percentage: 51% - 60%
3.factory information:
factory size:5000.00 square meters
staff number:100-300people
location: the first floor, D Building,NO.10Road. Longyan Industrial Zone, Humen Town, Dongguan City, Guangdong Province, China
production lines:3 lines
R&D:5-10people
QC:5-10people
- package details:reel, bag, plywood case, carton, packed in rolls, cable reel or as customer requirement
- delievery:15 days after samples are approved
1. How do you design a steel wire rope slings ?
Of course ,we have to know your application firstly and a number of factors have to be considered, such as work load, safety abrasion, environment ,cycle life, flexibility, cost, When we design the steel wire rope slings.
2. what’s the safety factor of your product?
General ,use a 5 to 1 or 3 to 1 safety factor when we design it, example :breaking load is (1000N) 100kg ,safety factor is 5:1 (200N) Breaking strength should never be considered the rope's working load.
3. I would get a flexible cable assembly ,how do I choose?
In same diameter of steel wire cable ,the 7X19 construction is more flexible than the 7X7 construction.
Example:1/16’’7X19 steel wire rope more flexible than 1/16’’7X7 .
4. Which material should I choose?
Stainless steel cable is more corrosion ,but it is expensive than galvanized steel cable and has a slightly less tensile strength. If it is use for general industry ,galvanized steel is ok, if it is use for marine environment ,I recommend in stainless steel wire cable . depend on you application.
5. What’s the lead time of my order?
It was largely depend on the size of your order .normally ,15days . if you are in urgent need of it ,we will try my best to met your requirement.
